V-6000 High Efficient Mixing Machine
| Negotiable | 1 Piece (MOQ) |
Basic Info.
Model NO.
V-6000
Application Area
Pharmaceutical
Certification
CE, ISO
Condition
New
Stirring Type
Spiral
Working
High Speed Mixer
Applied in
Food or Pharmaceutical
Mixing Time
0-99 Minutes
Volume
6000L
Weight
3200kg
Mixer Type
Powder Mixer
Layout Type
Horizontal
Mixing Drum Shape
Drum
Operating type
Cycle Operating
Transport Package
Standard Export Wooden Cases
Specification
GMP, CE
Trademark
SPM
Origin
China
HS Code
8474390000
Production Capacity
6000L
Product Description

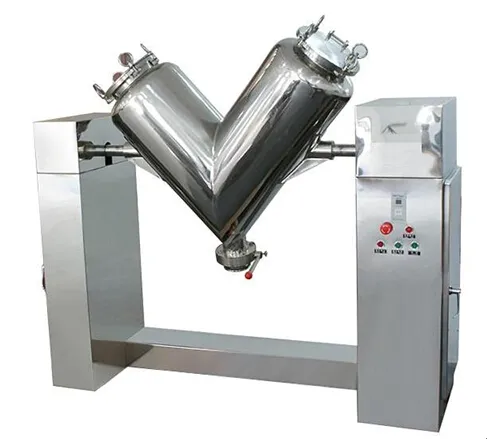

V-6000 High Efficient Mixing Machine
Main Application:
This machine is used for mixing of dry granulate material in pharmaceutical, food-stuff, chemical and other industries.
| Model | Model of auxliary vacuum pump | Barrel volume | Max loading volume | Max loading weigh | Mixing time | Motor power | Barrel speed | Overall dimension | Weight |
| 50V | W2 | 50L | 20L | 20kg | 0-99min | 0.75kw | 20r/min | 1250*450*1060mm | 160kg |
| 100V | W2 | 100L | 40L | 40kg | 0-99min | 1.1kw | 15r/min | 1620*500*1480mm | 220kg |
| 200V | W2 | 200L | 80L | 80kg | 0-99min | 1.1kw | 15r/min | 1800*600*1850mm | 280kg |
| 300V | W2 | 300L | 120L | 120kg | 0-99min | 1.1kw | 12r/min | 1900*650*1850mm | 320kg |
| 500V | W2 | 500L | 200L | 200kg | 0-99min | 2.2kw | 12r/min | 2500*800*2050mm | 550kg |
| 1000V | W3 | 1000L | 400L | 400kg | 0-99min | 4kw | 10r/min | 2850*1050*2050mm | 950kg |
| 1500V | W3 | 1500L | 680L | 680kg | 0-99min | 5.5kw | 10r/min | 3400*1100*3200mm | 1200kg |
| 2500V | W3 | 2500L | 1200L | 1200kg | 0-99min | 11kw | 8r/min | 3820*1100*3200mm | 2040kg |
| 4000V | W4 | 4000L | 1800L | 1800kg | 0-99min | 15kw | 6r/min | 4600*1300*3500mm | 2800kg |
| 6000V | W4 | 6000L | 2500L | 2500kg | 0-99min | 18.5kw | 5r/min | 5500*1300*4380mm | 3200kg |
Working principle:
Featuring unique structure, high mixing efficience and without dead angle, the mixing barrel is made of stainless steel with polished internal and external walls. And this machine has beautiful appearance, uniform mixing and wide application.
