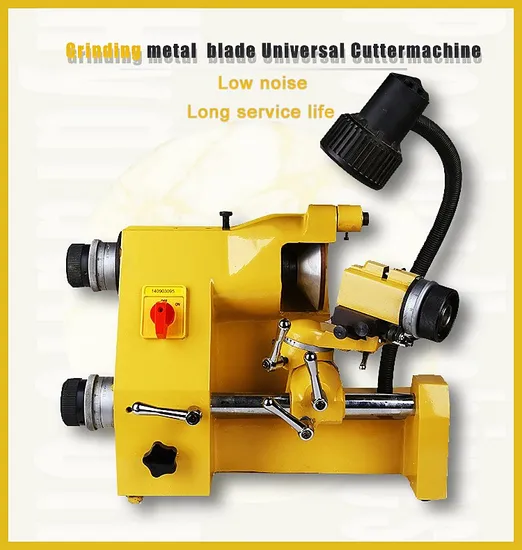

HSS Carbide Tool Grinding Metal Blade Universal Cutter Grinder Machine

Product Description

Product Description
Model MCG-20A
The MY-20A universal cutter grinder is a type cutter grinder which is designed for single lip engraving cutters. It can be used to grind all usual cutter shapes and angles.
Model MCG-30A/U2
For grinding HSS and carbide engraving cutter as well as single lip or multiple lip cutters of various shapes such as radiuses cutters or negative taper angle of cutters. The universal index head is provided at 24 positions so that any particular angle of shape can be obtained, free 3600 or 100 rotation is allowed for grinding END MILLS, TWIST DRILL, LATHE TOOLS, only replace the attachment to the index head without any complex setup.
Model MCG-30A/U2 Technical Data
Max. Collet capacity diameter: 25mm
Max. Grinding diamater: 100mm
Taper angle: 0~180
Relief angle: 0~45
Negative angle: 0~26
Grinding spindle: 5200r. P. M
Cup grinding wheel: 100*50*20mm
Motor volt: 110V 240V/60HZ
Net weight: 45kg
Machine dimension: 45*40*35cm
Packing dimension: 55*45*47cm
Model MCG-30A/U2 Standard Accessories
Wheel dresser with diamond 1pcs
Wheel flange(mounted) 1pcs
Grinding wheel PA80#(20) 1pcs
R8Collet 4.6.8.10.12 5pcs
Drive belt 1pcs
Lock pin 1pcs
Lamp 1pcs
Tools 1set
Aligning finger 1pcs
Operating information 1set
Model MCG-40A
For high precision work and better efficiency, it is desirable to sharpen your cutters by cutter grinder than simply by hand. The MCG-40A cutter grinder is specially designed for this purpose. Other than surface grinding the cutter grinder can sharpen any cutter to whatever shape you want your cutter to be highly efficient, save and easy to handle will surely solve the problem of sharpening cutters for you and thus improve your productivity.
Model MCG-40A Technical Data
Diameter of hold in collect max: 18mm
Min: 1.5mm
Range of grinding any angle
Driving motor power: 220V/3\280V
Spindle speed 5600rpm
Grinding wheel diameter: 100mm
Overall dimension: 380*400*330mm
Net weight: 40kg
Model MCG-40A Standard Accessories
Diamond grinding wheel 1pcs
Magnifier(5X) 1pcs
Collet 3pcs
Tools 1set
Lamp 1pcs
Drive belt 1pcs
Operating information 1set
Specification

Model	MR-U3
Max. collet capacity	Φ16 mm
Max. grinding dia.	Φ25 mm
Longitudinal traver of index head carrier	140mm
Longitudinal adjustment trave of index head carrier	180mm
Spindle and wheel longltudinal adjustment travel	600mm
Taper angle range	0~ 180 (degree)
Relief angle range	0~ 45 (degree)
Negative angle range	0~ 25 (degree)
Motor	1/3HP 220V/380V 50HZ
Grinding spindle	5200rpm
Grinding wheel	Φ100×50×Φ20
Dimension	55×46×49cm
Weight	60KG
Standard Equipment	5 collets: Φ4, Φ 6, Φ 8, Φ 10, Φ 12
	White corundum grinding wheel ×1
	Resin wheel×1
	Belt×1
	Diamond pen×1
	Twist drill grinding attachment×1
	End mill grinding attachment×1
	Lathe tools grinding attachment×1
Option Equipment	Eleven piece collets: Φ 3, Φ 4, Φ 5, Φ 6, Φ 8, Φ 9, Φ 10, Φ 12, Φ 14, Φ 16, Φ 18
