Reactors Made with Stainless Steel Stainless Steel Jacketed Reactor Electric Heating Reactor

Product Description

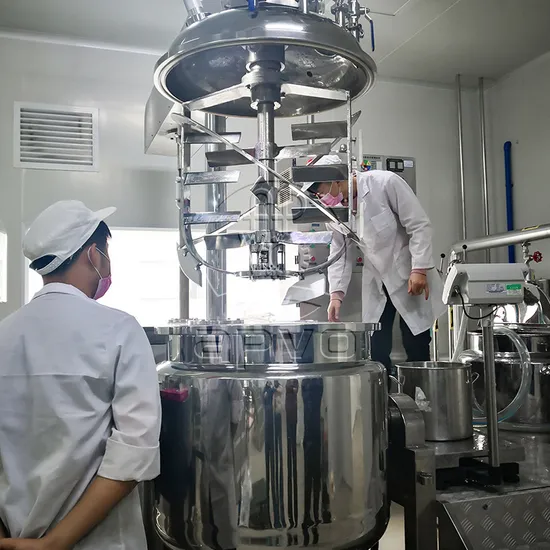

Creams homogenizer vacuum emulsifier The machine is suitable for the production of various kinds of paste, cream products in cosmetic factory and pharmaceutical factory. 1, It's used for produce the cream, lotion, paste, ointment, paste, conditioner, etc. Complex scraping board blending oar is suitable to every kind of complicated recipe and achieve optimizing effect;
2, Polytetrafluroethylene scraping board cater to body of blending groove and scrape out viscosity material on boiler wall;
3, Homogenizer is installed on boiler bottom to increase motor power more thoroughly and strongly. During few production, it can exert homogenizing effect fully;
4,Mightiness balance isotactic curve rotor is matched with stator with corresponding structure to realize liquid high-capability cut,rubbing,centrifugal to make sure exquisite and slick cream; boiler body and pipe surface mirror polishing 300EMSH (sanitation grade) accords with Daily Chemical and GMP regulation.
5, Customer can choose frequency conversion timing homogenizer and highest rotate speed is 3000 r/min. 1.Polytetrafluroethylene scraping board cater to body of blending groove and scrape out viscosity material on boiler wall.

2. Homogenizer is installed on boiler bottom to increase motor power more thoroughly and strongly. During few production, it can exert homogenizing effect fully.

3.Mightiness balance isotactic curve rotor is matched with stator with corresponding structure to realize liquid high-capability cut,rubbing,centrifugal to make sure exquisite and slick cream; boiler body and pipe surface mirror polishing 300EMSH (sanitation grade) accords with Daily Chemical and GMP regulation.
Model : RHJ-A-200LVoltage: 380V/50HzMaterial: 304, 316LPower: 14KWDimension: 3050*2800*3300mmWeight: 1.9TCyclet: 30 daysCirculation Mode: Inner LoopPackaging and Shipping: Wooden Box
Water phase pot ,oil phase pot, emulsifying pot, vacuum pump, hydraulic system, electrical control system, working platform, stairs and other parts.

Product Description: 1. The main pot has many accessories, with feeding monitoring emulsification and other functions.The relevant configuration is carried out according to the emulsifying process, which greatly facilitates and optimizes the operation of the emulsifying, and fully reflects the advantages of the emulsifying.
2. One way stirring, two-way stirring, screw belt two-way stirring,screw belt one-way stirring, anchor mixing variable frequency speed regulation, 0-63 RPM, scraper, at any time to cater to the shape of the stirring tank, scraping the pot wall sticky material.
3. 3layer stainless steel stuoture, 320 mesh polishing, GMP standard proiect. Intermediate layer (heating layer, insulation layer) Heat insulation layer, anti-hot effect is good
Warranty: One year since the date of installation. If there is any wearing part be broken within the warranty and isn't caused by un-properly operation, then the Seller would offer the new parts for free.
Inspection: The buyer will do the machine inspection when the machines are ready.
Machine Installation or Fixing: If Buyer requires Seller's engineer to install or fix the machine locally in due course, the Buyer should pay the round air ticket cost and arrange the hotel accommodation as well as the means for Seller's engineer.
Yangzhou Aipuweier Automation Equipment Limited Company. mainly responsible for selling cosmetic machinery to domestic and oversea in the field of cosmetics, pharmaceutical, food [G M P] standard equipment, we are always insisting in quality first, credibility-oriented, management-oriented, sincere service. Our factory has passed I S O 9 0 0 1 certification, and owns advanced equipment, Lathe, milling machine, polishing machine, welding machine, drilling machine and completed sets of measuring equipment. Main produce competed G M P standards sets of cream, lotion making production line; shampoo, liquid soap making production line; Perfume making production line; toothpaste making production line, Reverse osmosis pure water treatment, vacuum emulsifying machine, liquid soap mixer, filling, labeling, packing machinery. with long time experienced in machinery manufacturing and domestic and overseas marketing. The diverse products meet various needs of industries mentioned above. We focuses on creating value for customers. Our service includes installation design and select equipment for customers support professional technical on the formula cream, lotion, shampoo, liquid soap; After-sale department specifically organizes clients to troubleshooting, offer one-year warranty. lifetime maintenance. The after-sale hotline is open 24 hours providing consulting service We value the good relationship with customers. We serve in domestic. international markets with good reputation. "Quality first, credibility-oriented, management-oriented, sincere service" is our philosophy. Thanks for your attention, hoping establish a good long-term business relationship with you in near future.
