SIP Indoor Station Intercom Monitor Wall Mount Desktop VoIP Viewer Tablet for Office Apartment

Product Description

SIP Indoor Station
Q53W is a 7-inch color touch screen SIP indoor station with 5 function buttons, which can be applied in different indoor scenarios. Working with door phone and intercom at the entrance
Q53W can be easily achieved remote access control for residences. It can also be connected to alarms and other intelligent security devices via rich interfaces
Elegant Design with 7-inch Color Touch Screen
Q53W delivers a user-friendly experience with an elegant design and a clear 7-inch color touch screen.
Easier Operation
With a clear touch screen, Q53W offers a direct access to all key functions at your fingertips,providing a smoother operation experience for the users
HD Audio and Video Communication
Users can communicate with visitors with superb audio and clear video images via Q53W
Easy-to-access Physical Buttons
Users can easily achieve different functions with one press on Q53W
Built-in 2.4G Wi-Fi
Q53W supports built-in 2.4G Wi-Fi, and it allows users to
choose wireless connection mode for different requirements
Rich Interfaces
Q53W is flexible and powerful with rich interfaces to connect more security devices
Highlight Features
· 7-inch color touch screen
· 5 physical function keys
· Built-in 1.5W speaker with AEC
· Support visual intercom and remote access control
· Real-time monitor of the door phone and cameras
· Built-in 2.4G Wi-Fi
· 8 alarm input interfaces
· 1 pair of RS-485 interfaces
· Wall-mounted and desktop installation methods (with the external desk stand)
· Compatible with major platforms: 3CX, Avaya, Asterisk, BroadSoft, Metaswitch, Elastix and etc
Specification

Generic		Network
6 SIP Lines		10/100 Mbps Ethernet
PoE or 12V1A DC		IP Mode:IPv4/IPv6/IPv4&IPv6
		IP Configuration: Static / DHCP / PPPoE
Display		VPN: L2TP / OpenVPN
7-inch 800x480 tft LCD		QoS
		RTCP-XR (RFC3611), VQ-RTCPXR(RFC6035)
Audio		Support Wi-Fi connection
Full duplex hands free with AEC
DTMF:In-band,DTMF-Relay (RFC2833)		Physical Specifications
Narrowband codec: G.711A/U, G.729AB, iLBC		5 Function keys (Management Center, Monitor, Unlock, Return/Hang up, Answer)
Wideband codec: G.722, Opus		Wall-mount Bracket x1
		RS485 Interface x1
Video		Alarm Input Interface x8
Hardware video decoding: H.264		Power: PoE or DC 12V/1A
Video: QVGA / CIF / VGA / 4CIF / 720P / 1080P		Working Temperature: 0~45ºC, Working Humidity: 10~90%
		Color: White
Protocols		Installation:
SIP v1 (RFC2543), v2 (RFC3261) over UDP/TCP/TLS		1) Wall-mounted
RTP/RTCP/SRTP		2) Desktop (Need to purchase stand separately)
STUN, OpenVPN, TR-069		Device Dimensions: 176x104x26.5 mm
DHCP, IPv6, PPPoE, L2TP		Gift Box Dimensions: 193x152x39 mm

Intercom System Solution

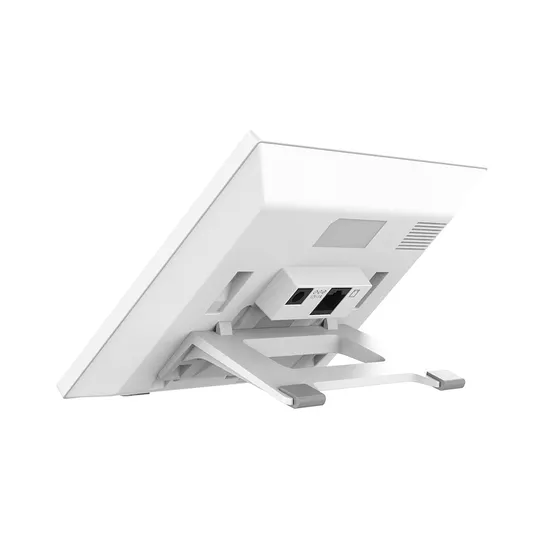

Wall-mount and Desktop installation supported
