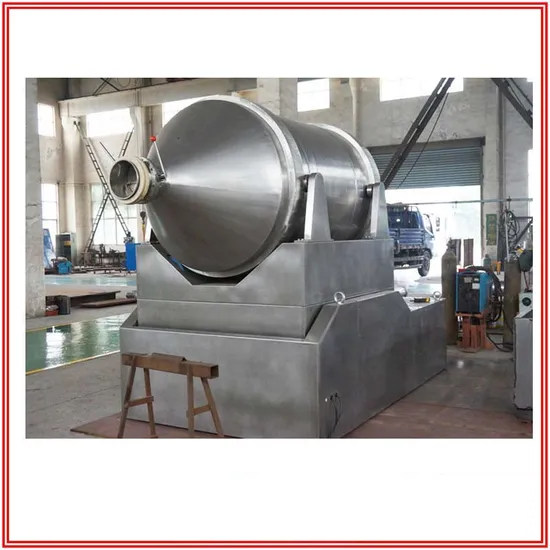

High Efficient Three Dimensional Mixing Machine Eyh-2000
| US$6,757.00-38,678.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
EYH-3000
Application Area
Pharmaceutical
Certification
CE, ISO, GOST, SONCAP, CCC, API
Condition
New
Mixing Drum Shape
Drum
Stirring Type
Spiral
Working
High Speed Mixer
Name
Three Dimensional Mixer
Other Name
Motion Mixer
Material
Stainless Steel
Industry of Application
Checmial or Pharma Powder
Mixer Type
Powder Mixer
Layout Type
Horizontal
Operating type
Cycle Operating
Transport Package
Wooden Case
Specification
CE SGS SONCAP
Trademark
ck
Origin
China
HS Code
8479820090
Production Capacity
200sets Per Month
Product Description
Three dimensional motion mixer mixer, aircraft used for the powdered pharmaceutical, chemical, food, light industry, electronics, machinery, mining, defense industry and scientific research units, high uniformity of mixing granular materials
Three Dimensional Mixer Characteristics
The Three Dimensional Mixer barrel for charging the materials is driven by the driving shaft. The barrel body carries on the repeated level movement, rotation, turning and other complex movements so that the materials will carry out the three dimensions and complex movements along the barrel body so as to realize the various movements of the materials. Through disseminating, gathering, agglomerating and mixing to realize uniform mixing.
Three Dimensional Mixer Technical Parameter
Spec | SYH-5 | SYH-15 | SYH-50 | SYH-100 | SYH-200 | SYH-400 | SYH-600 | SYH-800 | SYH-1000 | SYH-1200 | SYH-1500 | SYH-2000 |
| volume of barrel(L) | 5 | 15 | 50 | 100 | 200 | 400 | 600 | 800 | 1000 | 1200 | 1500 | 2000 |
| charge volume(L) | 4.5 | 13.5 | 45 | 90 | 180 | 360 | 540 | 720 | 900 | 1080 | 1350 | 1800 |
| charge weight(kg) | 1.5-2.7 | 4-8.1 | 15-27 | 30-54 | 50-108 | 100-216 | 150-324 | 200-432 | 250-540 | 300-648 | 400-810 | 500-1080 |
| rotation speed of main shaft(r/min) | 0-20 | 0-20 | 0-20 | 0-20 | 0-15 | 0-15 | 0-13 | 0-10 | 0-10 | 0-9 | 0-9 | 0-8 |
| motor power(kw) | 0.25 | 0.37 | 1.1 | 1.5 | 2.5 | 4 | 5.5 | 7.5 | 11 | 11 | 15 | 18.5 |
| size L×W×H(mm) | 600 ×1000 ×1000 | 800 ×1200 ×1000 | 1150 ×1400 ×1000 | 1250 ×1800 ×1550 | 1450 ×2000 ×1550 | 1650 ×2200 ×1550 | 1850 ×2500 ×1750 | 2100 ×2650 ×2000 | 2150 ×2800 ×2100 | 2000 ×3000 ×2260 | 2300 ×3200 ×2500 | 2500 ×3500 ×2800 |
| weight(kg) | 100 | 200 | 300 | 800 | 1200 | 1200 | 1500 | 1700 | 1800 | 2000 | 2400 | 3000 |
The bulk density of material is made based on 0.6g/cm3, Please point out if it's over .
