Affordable Price Quality Assured Husbandry Poultry Breeding Chicken Feeding Equipment

Product Description

U-Best Husbandry Equipment Co., Ltd. is located in the cultural World Kite Capital - Weifang, China, where enjoys convenient access to major transportation networks.Main systems:1.Main feed line system2.Automatic pan feeding line system3.Automatic nipple drinking line system4.Automatic ventilation system5.Cooling pad system6.Environment controller7.Spraying&disinfecting system8.Heating system/Heater
Good Service for Project
1. Chicken Equipment: produce and supply first-class Quality poultry equipment with Good Price;2. Poultry Farm: select location, design and construction preparation guidance;3. Layout Drawing: make layout drawing of our equipment to guide you build house and install equipment;4. Equipment Installation: if you need, we send our engineer to your farm for guide of equipment installation;5. Training: we can train your workers to operate our equipment and raise poultry;6. After-sales service: free consultancy and prompt reply to questions from clients.
Project Design
U-Best Company adopt advanced European and US technology in environmental ventilation concept, undertakes to design large & medium farm project and old farm renovation project. We will provide customized design and solutions continuously to satisfy your all requirements.
Detailed Parameters
1. Main feed line system (Silo or Manpower Hopper)
By this system, chicken feed can be conveyed from the silo or manpower hopper into each feeding line in your chicken farms.There is a feed sensor at the end of main feed line which controls motor on and off to achieve automatic feed delivery.Feeding capacity: 1400KG / h, Maximum feeding length:60m.Radius of bending pipe: R1500 (inclinable angle: 30 degrees).
Main feed line auger: Import from South Africa
Feed level Sensor: Import form Germany IFM.
Silo
Features:
-Silo with standard ladder and guard railing is safe and reliable.
-Solid connection and good sealing performance.
-Steel sheet double-layer galvanized ensure a service life of more than 10 years.
-FRP(Fiber reinforced plastics) silo has a good performance of anti-corrosive,moisture-proof,and easy installation.
Parameter of silo:

Model	Volume	Height(no foundation)	Diameter
MRS-4.0(1802)	6.2M3	4.9M	1.833m
MRS-7.3(2701)	11.2M3	4.5M	2.75m
MRS-10.6(2702)	16.4M3	5.68M	2.75m
MRS-14.0(2703)	21.6M3	6.8M	2.75m
MRS-20.8(3602)	32M3	6.9M	3.667m
MRS-27.3(3603)	42M3	7.9M	3.667m

(2).Feeder pan:40-50birds;100%PP
(3). Feed pipe and Auger:Auger from South Africa
Structure:
-4pans/3m or 3pans/3m,45mm diameter
-made of high quality spring steel
-long service life and not easily deformed.
(4).Delivery: 36mm diameter Auger ;450kg/h
(5).Hopper:70kg/90kg,1.5mm thickness,galvanized sheet
Structure:
-Surface spray treatment, wear-resistant anti-corrosion, beautiful appearance;
-The whole hopper is detachable, saving more space;
-Four different sizes of hoppers for you to choose,you can also customized individually according to your requirements.
(6).Feed sensor :Germany IFM or israel Agro logic
(7).Driving motor: 0.75kw, 380V/220V, 50HZ/60HZ, three phase or single phase.
Structure:
-Die-cast aluminum alloy shell and input & output flange, excellent heat dissipation, no rust, stable and reliable.
-Split Gearbox, quick and easy to replacement.
(8).Turbo:
-convenient for feeding
-easy to clean
-beautiful appearance

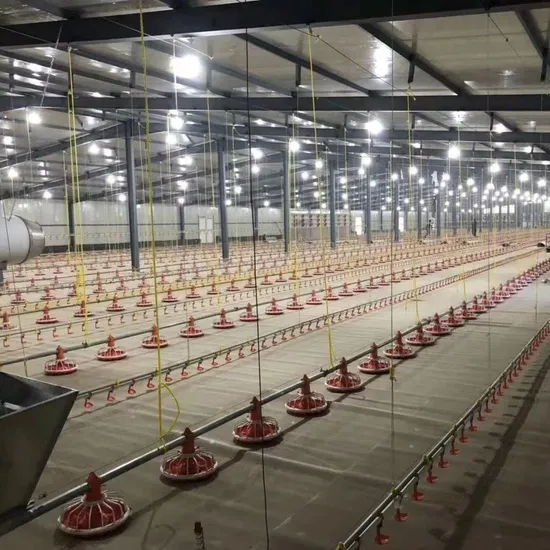

2. Pan feed line system Convey the feed in the hopper into each tray to ensure the eating of the meat chickens and automatically control the conveying opening/closing of the motor by the material level sensor to achieve automatic feeding. Pan feed system consists of: Special driving reduction motor, V-shape hopper, Feed pipe with South Africa Auger, Suspension lifting device, Anti-perching device, Germany IFM Feed Sensor.
3. Nipple drinking line system Provide clean and fresh water to broiler chicken steadily, the water will be out when birds touch nipples.
Our nipple's rod can be movable in 360 degrees, easy to drink.
We have many types of nipple drinking system inlcuding:
Plasson type drinking system,
Lubing type drinking system,
Big Herdsman type nippledrinking system.
This system will deliver water to each drip cup steady.
4. Automatic Ventilation System This system Controls climate conditions, fresh air, humidity and temperature in poultry shed.
It is vital for growing birds. Including air inlets and ventilation fan.
Galvanized Steel Fan/Fiberglass Cone Fan for Your Choice.

Model	Blade Diameter (mm)	Air Flow (M3/h)	Power (W)	Size (mm)	Voltage
UBT-1000	910	21000	550	1000x1000x450	380V, 50Hz
UBT-1380	1250	44000	1100	1380x1380x450	380V, 50Hz

5. Cooling pads The longitudinal way of cooling-fan ventilation is the most economical and effective way to reduce temperature of chicken house in summer. Advantages: Hygroscopicity, Dry solution, Non-porous surfaces. Color: Brown, black, yellow, green, red, etc Thickness: 100mm, 150mm Height: 1660mm, 1960mm, 2160mm (with frame) Aluminium frame: high strength, good corrosion resistance, even water distribution, compact structure, beautiful and practical.
6. Environment control system This system saves labors and resources under the condition of assuring a optimum growth environment for poultry chickens. Environment controller along with temperature is imported from Agrologic in Israel, which can set an optimum working mode according to the local climate and raising environment. The Most Advanced Control System not only has the above function, but also could be done to do chicken feed weighing/chicks weighing/connecting to computer or personal phone.
7.Heating system (Heaters) Function: Warm poultry shed to satisfy the temperature demand of baby chicks or whole chicken house. Optional heaters 1). Poultry infrared gas brooder 2). Poultry gas space heater 3). Poultry Tank-Heater with fuel of diesel.
Certifications
Packaging&Shipping
1) Shipment by FCL or LCL.
2) Delivery time: 10-15 working days after the deposit.
3) Package:
· Feeder pan: Ensemble, in carton box;
· Feeding pipe: 20pcs per bunch, in bulk;
· Hanging system: in carton box;
· watering pipe fitted with nipple, in plastic bag, 20pcs per each;
· Water spare parts like medicator, regulator,cup in carton box.
FAQ
1. Q: I need a complete set chicken farm and also need a best price, what should I do?
A: pls let us know:
1) Chicken Poultry Farm Size (length x width x height).
2) If for Broiler Chicken, Quantity and Final Weight to Sell in Market.
3) If for Breeder or Layer, Rearing Density or Target Breeder/Layer Quantity(Quantity of Female and Male).
4) Maximum and Minimum Temperature of Farm Location.
5) House Type: Close type of two side bricks building wall with 36" fans and air inlets,
or Open type of using curtain in two sides.

2. Q: What's the material of feeding pan and feeding pipe?

A: the material of feeding pan is 100% PP.
the material of feeding pipe is galvanized pipe.

3. Q: How long is the life of your products?
A: more than 15 Years.

4. Q: Do you have any certificate?
A: ISO9001: 2008/CE/PC Certification By SGS/Soncap/SASO.

5. Q: Sample available?
A: Yes. but the client pay for the freight fee.
