High Efficient Small Freeze Drying Freeze Dried Food Machine

Product Description

Attention:
1 --- All prices and parameters shown above are automatically generated by the system, if you want to know the exact information,please click "Contact Supplier" to send mail to us.
2 --- Because of the time difference, we suggest that you can choose to send us an inquiry instead of online chat.
3 --- When sending us an enquiry or message, please tell us your Email or WhatsApp/Wechat/Skype .etc, then our sales manager can contact you quickly.
Product Description

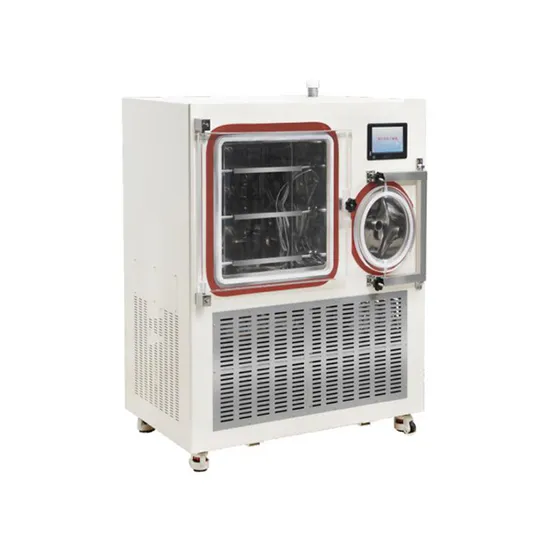

Pilot freeze dryer is a small in-situ freeze-drying equipment. It is applied not only in pharmaceutical pilot workshop and small batch production but also in food or medicinal freeze-dry-ing process. Situ freeze-drying technology is one of advanced international constructer design which avoid the contamination during materials transfer and realize the dry sublimation automatically.Pilot freeze dryer is with rack heating programmable function and memory freeze-drying curve which convenient users to get the freeze-drying production technology. lt is divided into standard type and gland type.
Technical Parameters

Model LTDG-20S LTDG-30T LTDG-50S LTDG-50T Type Standard Top-press Standard Top-press Shelf temp (ºC) -50 to 70 Final condenser temp (ºC) -80 Vacuum Degree (Pa) <10<> Freeze drying area (m2) 0.24 0.3 0.5 Condenser capacity (Kg/24h) 6.5 10 Shelf specification (L*W*H mm) 300*400*20 300*450*20 Qty of shelf 2+1 3+1 4+1 Distance between shelves(mm) 145 90 Liquid material loading capacity (L) 4.5 7 10 Temperature uniformity (ºC) ±1 Cooling mode Air cooling Electric heater defrost Y Cap seal method N Hydraulic pressure N Hydraulic pressure Penicillin bottle Φ22 468 702 1040 Penicillin bottle Φ16 864 1296 1944 Penicillin bottle Φ12 1584 2376 3456 Power supply (V/Hz) 220V/50Hz,60Hz 220V/50Hz,60Hz 220V/50Hz,60Hz, 380V/50Hz,60Hz Exterior dimension (WxDxH mm) 1200*750*1250/1600 1200*850*1500/1850

<10<>LTDG-20S LTDG-30T LTDG-50S LTDG-50T

Model LTDG-100S LTDG-100T LTDG-200S LTDG-200T Type Standard Top-press Standard Top-press Shelf temp (ºC) -50 to 70 Final condenser temp (ºC) -80 Vacuum Degree (Pa) <10<> Freeze drying area (m2) 1 2 Condenser capacity (Kg/24h) 15 30 Shelf specification (L*W*H mm) 550*480*20 600*600*20 Qty of shelf 4+1 4+1 6+1 4+1 Distance between shelves(mm) 90 100 Liquid material loading capacity (L) 20 40 Temperature uniformity (ºC) ±1 Cooling mode Air cooling Electric heater defrost Y Cap seal method N Hydraulic pressure N Hydraulic pressure Penicillin bottle Φ22 2016 4100 Penicillin bottle Φ16 3944 7800 Penicillin bottle Φ12 7020 14400 Power supply (V/Hz) 380V/50Hz,60Hz 380V/50Hz,60Hz Exterior dimension (WxDxH mm) 1500*850*1600/1950 1500*850*1600/1950

<10<>LTDG-100S LTDG-100T LTDG-200S LTDG-200T
If you have other models that need to be consulted, you can send an inquiry to us!
Features
Reliable Performance
World famous compressor(SECOP),high performance. lubricating oil with Sole design ensure the compressor work stable in high and low environment which enhance the compressor life. World famous dry-filter to avoid moisture and Impurity went into refrigerant system.
The rack is cooled and heated through Silicone oil.The temperature accuracy is ≤1°C,the refrigerant and heating are uniformity. In-situ freeze-drying design, avoid the contamination during material transfer. High transparent organic glass in Drying chamber helps users to observe materials changes. Cold trap and drying chamber are separately designed which is with high moisture capture and fast dry time.
Chamber is made of stainless steel, anti-corrosion and easy cleaning. Each rack is with temperature sensor and monitor the materials temperature changes in each rack. Square racks easy to cleaning With gas valve, can inject dry inert gas.
Humanized Design
7" Colorful touch panel, can digital and curve display the real time status and historical data. Large FAT32 files system storage can store all data for more than 1 month. USB interface can download the freeze-drying data to U disk
Rack temperature can adjustable,controllable which helps to search for freeze-drying technology. It is two types manual and automatic type.
The Automatic process can setting 36 programs, each programs can set 40 temperature range,it can meet different requirements on freeze-drying process.
Automatic frost
Optional Eutectic point test function helps users to control materials'sublimation point
Optional Freeze drying flask
Application Field
Company Introduction Our Company
Zhejiang LeadTop Pharmaceutical Machinery Co.,ltd well known as LTPM China. Since year 1996, we are start manufacturing Oral Solid Dosage Pharmaceutical Machinery includes Mixing Machine, Drying Equipment, granulation line, IBC Bin and Bin Washing Machine. As year passed, LTPM China absorb advanced domestic and abroad technology, we export machinery to more than 30 countries all over the world.
LTPM China is considered one of the major Pharmaceutical Machinery Supplier and exporter in China mainland. Professional, Enthusiasm, Service and Team Work has been always our value to create for our Staff and customers. As year 2012 we position our value as "A Pharma Machinery Division, For A Better Life", creating a Win-Win Platform for our clients and staff for a better life is our vision. Our Machinery Manufacturing Workshop
Imported CNC Machining Centre makes all parts process accurate. Own R&D team with more than 20 years engineering expereince, can customize the equipment and packaging line to your satisfaction. Professional Business Team
Warm, professional business team, careful response to your inquiry, timely response rate of more than 93%, higher than the average level of the industry.
Our Certificates
ISO, CE, SGS, BV Certified Company. Packing & Shipping
All machine delivery with anti rust spray, film wrapping and Sea shipping affordable wooden box.
FAQ
Q: What price terms you offer?
A: We can offer FOB, FCA, CFR, CIF, EXW and other price terms based on your request.
Q: What payment terms you take?
A: TT, LC, other terms are also workable.
Q: Will you help with installation and stuff training? A: Yes, we can send our engineers to your place to guide the installation and train your workers if you need, but the buyer should bear our technician's round tickets, accomodation, food and subsidiary USD100/day.
Q: How can I visit your factory? A: Our factory is located in Ruian city Zhejiang Province. Just let us know your schedule in advance and we will arrange everything for you!
Any other doubts about our machine, please feel easy to contact with us.
