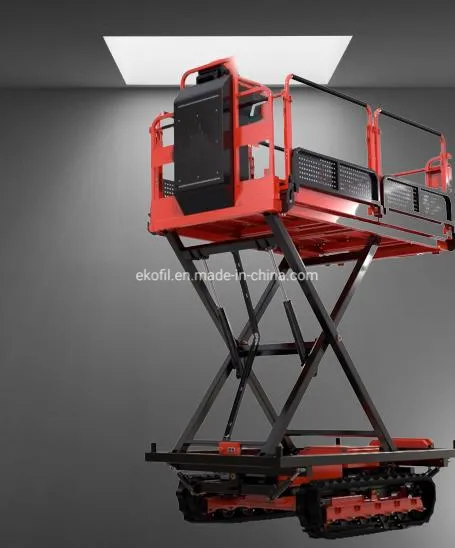

Ecas-200h Automatic Scissor Orchard Lift Platform Agricultural Table Lift

Product Description

ECAS-200H Motorized Vehicle for High-Place Works Platform Orchard Platform Product Description

Feature and Performance
-One charge (3-4 days of use) is suitable for handling and high-altitude use.-Equipment can also be used on rainy days.-Rated loading capacity 800 kg 33 control boxes (maximum working height (39 meters) when loading in 3 stages)-Load case cover function Ramp level function.
Product Parameters

Major Specification:

Item	Description	Item	Description
Name of Machine	Orchard	Weight of Vehicle (Weight)	1230kg
Type	ECAS-200H	Max Load(kg)	800kg
Dimension(LengthxWidthxHeight)	2880x1480x1440mm	Running Method	Infinite Track Type(Driven by a motor )
Upon extension of the extended table(mm)	3200mm	A driving motor Type	48V 2KWx2
Max.ascending height(mm)	2500mm	An illumination type	A lever type (a Joystick)
The height up to working table upon max descending (mm)	8mm	Running Speed(Km/h)	3.5km/h
A horizontal angle of the left ,right and the front	10°	Type of Hydraulic Device	Hydraulic Power Pack (The highest oil pressure 15MPa)

It is possible to extend the working table so that a work can be done up to 8m of the span length.
With the divided 4 sections, it is possible to extend them respectively according to worker's convenience.

Detailed Photos
1. Energy saving and environmental protection.2. Flexible operation.3. Easy access to the orchard.4. Crawler-type walking runs smoothly
Application scenarios
Product Action:
1. As you can see, this model can help you pick fruit in bulk and complete efficient picking operations. Such wheeled transportation can only be widely supported by most fruit farmers if it has the characteristics of convenient operation, lightness and flexibility, safe running speed, and certain overload capacity.2.At the same time, it can help you prune fruit trees, remove redundant branches, ensure the light of the main pole, so that the branches can grow outward, and supervise the growth status of fruit trees.

Applicable scenarios: Industry / Agriculture / HouseholdPicking fruits and vegetables/House maintenance or construction/Warehouse/Outdoor and so on

One charge, 5-6 days of use Wireless remote control (for upper and lower computers) Motors, chargers (self-produced semi-permanent) improve safety through ground design Electronic diagnostic instrument (no fault, upgrad
One charge, 5-6 days of use Wireless remote control (for upper and lower computers) Motors, chargers (self-produced semi-permanent) improve safety through ground design Electronic diagnostic instrument (no fault,

Hot sale Products

Package and Delivery

One charge, 5-6 days of use Wireless remote control (for upper and lower computers) Motors, chargers (self-produced semi-permanent) improve safety through ground design Electronic diagnostic instrument (no fault, upgradeWe have a 24 hours *7 days friendly and professional customer service team, providing a strongly 1-year warranty and free lifelong technical support. All products will be tested for capacity and checked for external damage before packaging. And we provide English guideline and user manual to help you operate battery easily and quickly.

Exhibition Pictures
Company Profile
ANHUI EKOFIL AUTOPARTS COMPANY
Our company is located in HEFEI City, ANHUI Province China, is the large-scale professional agriculture Machinery,Forklift Parts manufacturer with integration of manufacturing, export and after-sale service. Establish in 2017, by now Forklift electrical accessories basically cover the vehicles of major domestic brands( Such as Zhongli,Nuoli,Afterburner,Heli,Baoli,TCM TEU)
The company′s main products cover Electric Vehicles,Electric Forklifts,Motor Controller ,Lithium battery and sell parts and accessories for electric Vehicles ,including motors Electric Controls ,meters,accelerators,control handles ,DC converters,power connectors ,wiring harness,Various electrical switches and so on.
We have professional quality inspection department, every machine will be tested 3 times before delivery in order to make sure the machinery in future.
With high quality product, competitive price, and best after-sale service, we have gained good reputation from all over the world, such as Europe, South Korea North, America, Central and South America, Africa, Australia, New Zealand and so on.Base on it ,we welcome buyers from all over the world.
FAQ
Q1.Can I have a sample order?A: Yes, we welcome sample order to test and check quality.
Q2. Do you have any MOQ limit?A: Small quantity is accepted , but we offer quantity discount.
Q3. How do you ship the goods and how long does it take to arrive?A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q4. What does after-sales look like?A: We support 1 year of after-sales service.
Q5. Do you test all your goods before delivery?A: Yes, we have 100% test before delivery.
Q6. Is it OK to print my logo on the product?A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7. Does it support changing data?A: Yes.Please send the data you want, and we will send you the video after debugging,and send it to you after confirmation.
