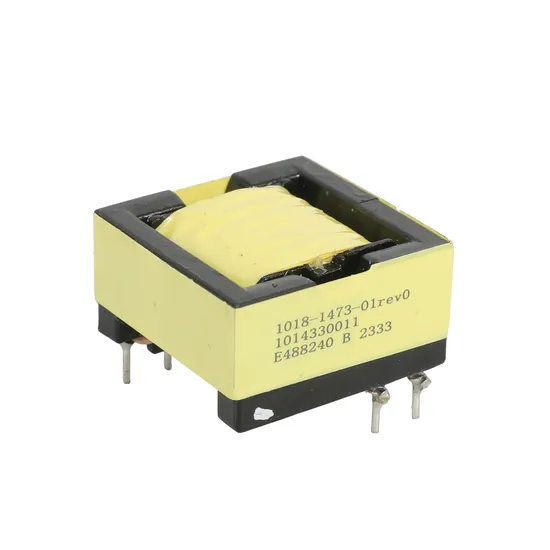

High Frequency Inverter Power Supply Transformer

Product Description

Discover the Inverter Power Supply High Frequency Current Transformer by Dongguan Xinsheng. Ideal for power, electronic, lighting applications. Single-phase with a core-type transformer design.
Product DescriptionProduct Description:
The EI core, manufactured by Dongguan Xinsheng Electronic Technology Co., Ltd., is a fundamental ferrite core widely utilized in switching power supplies and various electronic applications. It supports different oscillation modes such as full bridge, half bridge, single end type, resonant type, and push-pull type lines. With exceptional material characteristics, this core is commonly integrated into transformer structures for optimal performance.

NO	Specifications	Overall dimension/mm			Reference standards VA		weight
		A	B	C	F=50KHz	F=100KHz	reference value/g
1	EI-10	11	10	9	3	6	8
2	EI-12.5	13	13	10	4	8	10
3	EI-16	17	16	14	5	9	11
4	EI-19	20	19	16	8	13	12
5	EI-22	23	21	18	14	20	16
6	EI-25	26	22	19	20	30	21
7	EI-28	29	22	22.5	42	58	35
8	EI-30	31	29	26	61	95	54
9	EI-35	37	33	28.5	100	150	78
10	EI-40	42	38	29	160	250	110
11	EI-44	46	41	33	260	391	150
12	EI-50	52	44.5	38	430	650	195

Application scope Discover the Inverter Power Supply High Frequency Current Transformer by Dongguan Xinsheng Electronic Technology Co., Ltd. This electronic transformer efficiently converts AC to various voltage, current, or frequency outputs. Ideal for power, electronic, lighting, and audio applications.
Welcome to Dongguan Xinsheng Electronic Technology Co., Ltd.Product: Electronic TransformerOur electronic transformer, designed by Dongguan Xinsheng Electronic Technology Co., Ltd., offers a range of functionalities to meet various power conversion needs:
Power Converter: Convert high-voltage low-frequency AC into low-voltage high-frequency AC for electronic devices like computers, TVs, and stereos.Frequency Regulator: Adjust AC frequency for motor speed control and different equipment requirements.Sensor Power: Convert AC to low-voltage DC power for sensors in automotive electronic systems.Power Quality Control: Enhance power grid quality with features like voltage regulation, power factor improvement, and harmonic filtering.Our electronic transformer is a versatile power electronic device widely used in power electronics, industrial automation, mechanical manufacturing, automotive electronics, aerospace, and more.
