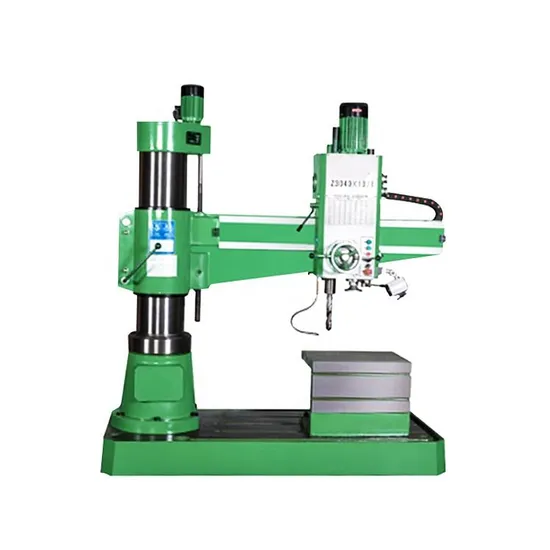

Good Quality Radial Drilling Machine Heavy Duty Drill Machine

Good Quality Radial Drilling Machine Heavy Duty Drill Machine

US$3,500.00-9,800.00 1 Piece (MOQ)

Basic Info.

Model NO.
URD40/URD50/URD63 Series
Controlling Mode
Artificial
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Dimension(L*W*H)
2600*1120*2600mm
Weight
4300/3500kg
Transport Package
Wooden Case
Trademark
SMAC
Origin
China

Packaging & Delivery

Package Size
10.00cm * 10.00cm * 10.00cm
Package Gross Weight
10.000kg

Product Description

Product Description
Features
With wide range of speed and feed,with manual,power and fine feeds.The feed of machines are very easily engaged and disengagedat any time.
With safe and reliable feed safely machine,all parts easy operation and change.

All controls centralized on the head stock easy operation and change,Clamping for assemblies and speed change of spindle achiered by hydraulic power,cmle is sensitna owet nelile Main parts are made by machine center which import from KIA with high precision and efficiency ,ensuring reliability and high quality.

Model RD4016 RD5016 RDQ5020
Max.Drilling capacity mm 40 50 50
Distance spindle axis to column generating line mm 350~1600 350~1600 350~2000
Diameter of column mm 350 350 350
Spindle taper MT4 MT5 MT5
Spindle travel mm 315 315 315
Spindle speeds range r/min 25~2000 25~2000 25~2000
Spindle speeds series 16 16 16
Range of Spindle feeds mm/r 0.04~3.2 0.04~3.2 0.04~3.2
Spindle feeds 16 16 16
Distance spindle nose to working surface of base mm 350~1250 320~1220 320~1220
Dimension of worktable mm 630x500x500 630x500x500 630x500x500
Dimension of base mm 2400x1000x200 2400x1000x200 2400x1000x200
Overall Size mm 2500x1060x2650 2500x1060x2650 2900x1060x2650
Power of Main motor kW 3 4 4
G.W/N.W kg 4300/3500 4300/3500 4350/3550
Packing dimension cm 260x112x260 260x112x260 300x112x260
