Female Insulated Terminal Reel Type

Female Insulated Terminal Reel Type

US$0.10 1,000 Pieces (MOQ)

Basic Info.

Model NO.
NL3.5-5
Application
Conduct Electricity
Character
Environmental Protection
Species
Terminal
Production Process
Cold Pressing
Shape
U
Interface Type
HDR
Certification
UL
Brand
Longyi
Terminal Body
Copper
Plating
Tin
Insulation
Nylon
UL
E357535
Transport Package
Standard
Specification
OTHER
Trademark
LONGYI
Origin
China
HS Code
8536900000
Production Capacity
1000000000kpcs/Year

Packaging & Delivery

Package Size
19.00cm * 15.00cm * 14.50cm
Package Gross Weight
10.000kg

Product Description

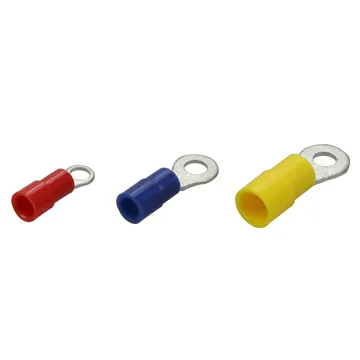

Ring insulated terminals
1, cable lugs are suitable for the connection of copper conductors (section 1.25-5.5mm2) in power cable with electronic equipment
2, Material: They are made of higher 99.99 % pure copper tube T2.3, Working temperature -55oC-150oC
4, Surface: Tin-plated
5, Insulated material: PVC, nylon
6, Wire specification/rated: According customer required
The main products take references to the technical standards and quality requirements of advanced industrial countries such as America, Japan, German, France. Our products are widely applied in all kinds of electric cabinets, transformers, electric equipment, wiring harness manufacture, railway, communication, ship industry, aircraft and, PV, wind power,etc.,at home and abroad. About 50 % of the products are exported to more than 100 countries and regions, such as Asia, European,America, Africa,etc., and our products are trusted by more than 800 famous companies, such as ZTE Corporation, Huawei Telecommunications, Haier Electronics, Toshiba Transformer, Siemens electrical appliances, etc Product Description
PART NO ITEM NO WIRE RANGE DIMENSIONS
AWG/MCM mm 2 ΦE ΦD Φd W B L COLOR
LY0020-0001 NL1.25-3 22-16 0.25-1.65 3.7 4.0 1.7 5.5 10.4 17.3 RED
LY0020-0002 NL1.25-3A 3.2 4.0 1.7 5.5 10.4 17.3
LY0020-0003 NL1.25-3M 3.7 4.0 1.7 6.6 10.4 20.3
LY0020-0004 NL1.25-4 4.3 4.0 1.7 8.0 10.4 21.8
LY0020-0005 NL1.25-4M 4.3 4.0 1.7 6.6 10.4 20.3
LY0020-0006 NL1.25-5 5.3 4.0 1.7 8.0 10.4 21.8
LY0020-0007 NL1.25-6 6.4 4.0 1.7 11.6 10.4 27.5
LY0020-0008 NL1.25-8 8.4 4.0 1.7 11.6 10.4 27.5
LY0020-0009 NL1.25-10 10.5 4.0 1.7 13.6 10.4 31.8
LY0020-0010 NL2-3 16-14 1.04-2.63 3.7 4.6 2.3 8.5 10.4 22.3 BLUE
LY0020-0011 NL2-3A 3.2 4.6 2.3 8.5 10.4 22.3
LY0020-0012 NL2-3M 3.7 4.6 2.3 6.6 10.4 19.8
LY0020-0013 NL2-4 4.3 4.6 2.3 8.5 10.4 22.3
LY0020-0014 NL2-4M 4.3 4.6 2.3 6.6 10.4 19.8
LY0020-0015 NL2-5 5.3 4.6 2.3 9.5 10.4 22.3
LY0020-0016 NL2-6 6.4 4.6 2.3 12.0 10.4 27.3
LY0020-0017 NL2-8 8.4 4.6 2.3 12.0 10.4 27.3
LY0020-0018 NL2-10 10.5 4.6 2.3 13.6 10.4 30.8
LY0020-0019 NL3.5-4 12-10 2.63-4.60 4.3 5.6 3.2 9.5 13.3 26.3 YELLOW
LY0020-0020 NL3.5-5 5.3 5.6 3.2 9.5 13.3 26.3
LY0020-0021 NL3.5-6 6.4 5.6 3.2 12.0 13.3 27.7
LY0020-0022 NL3.5-8 8.4 5.6 3.2 12.0 13.3 27.7
LY0020-0023 NL5.5-3 12-10 4.60-6.64 3.7 6.6 3.5 9.5 13.5 26.5 YELLOW
LY0020-0024 NL5.5-4 4.3 6.6 3.5 9.5 13.5 26.5
LY0020-0025 NL5.5-5 5.3 6.6 3.5 9.5 13.5 26.5
LY0020-0026 NL5.5-6 6.4 6.6 3.5 12.0 13.5 32.5
LY0020-0027 NL5.5-6S 6.4 6.6 3.5 12.0 13.5 29.2
LY0020-0028 NL5.5-8 8.4 6.6 3.5 15.0 13.5 34.5
LY0020-0029 NL5.5-10 10.5 6.6 3.5 15.0 13.5 34.5
LY0020-0030 NL8-3 8 6.64-10.52 3.7 8.3 4.5 10.0 17.5 30.0 RED
LY0020-0031 NL8-4 4.3 8.3 4.5 10.0 17.5 30.0
LY0020-0032 NL8-5 5.3 8.3 4.5 10.0 17.5 30.0
LY0020-0033 NL8-6 6.4 8.3 4.5 11.0 17.5 31.5
LY0020-0034 NL8-8 8.4 8.3 4.5 14.0 17.5 36.0
LY0020-0035 NL8-10 10.5 8.3 4.5 18.0 17.5 39.5
