Long Service Life Animal Feed Pellet Mill Aqua Feed Pellet Machine Cattle Feed Pellet Machine Chicken Pellet Feed Mill

Product Description

Product Description

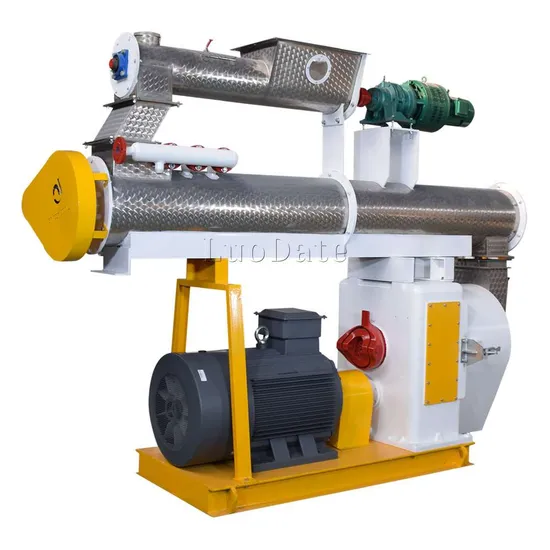

○Pellet feed combines nutrients from various materials into particles, improving the digestibility and absorption of the animals. The animals will grow faster and stronger.This model can reduce the cost for farming than tranditional. ○Animal feed pellet mill main drive adopts high accuracy gearbox for high efficiency.
○The granulator of the poultry feed pellet plant all equipped the full stainless steel conditioner to ensure the high quality of pellet feed.
○Frequency conversion (Electromagnetic speed control) feeder, with overload protection device,equipped strong magnetic security device,make the feed pelletizing machine run, play the best performance.
○Ring die is equipped with detachable device, High output, low noise, compact structure, convenient operation and maintenance.
○Main parts of the bearing and standard parts are imported.
Application
Pellet feed combines nutrients from various materials into particles, improving the digestibility and absorption of the animals.The animals will grow faster and stronger.This model can reduce the cost for farming than tranditional.
Product Parameters

Model	Power (kw)	Power of feeder (kw)	Power of conditioner (kw)	Inner diameter of ring die (mm)	Pellet size (mm)	Capacity(t/h)
SZLH 250	22	0.75	1.5	250	2-12	1-2
SZLH 320	37/45	1.1	2.2	320	2-12	3-4
SZLH 350	55	1.5	3	350	2-12	4-6
SZLH 400	75/90	1.5	5.5	400	2-12	7-8
SZLH 420	90/110	1.5	5.5	420	2-12	8-12
SZLH 508	132/160	2.2	7.5	508	2-12	10-20
SZLH 678	185/200	2.2	11	678	2-12	15-28
SZLH 768	280/315	2.2	15	768	2-12	25-35

Detailed Photos
Customer Visiting
We have established partnerships with customers from more than 70 countires.
Case
Project Name: Computer Batching Animal Feed Pellet Plant
Capacity: 5 Tons/Hour
Location: Colombia
Pellet Type: Poultry Pellet Feed, Livestock Pellet Feed, Chicken Pellet Feed
Project Name: Automatic Cattle Camel Feed Turn-key Plant
Capacity: 10 Tons/Hour
Location: Saudi Arabia
Raw Material: Corn, Wheat, Soybean, Bran, Vitamin, Additive, etc

Our Factory
Luoyang Luodate Machinery Equipment Co., Ltd. was found in 1994, which isan enterprise integrating Research & Design, production, sales and installation.
28 years factory production experience of the feed & biomass pellet mill.
Have more than 10 national patent.
Have the lSO9001, CE, SGS & TUV.
Now, we have established partnerships with customers from more than 70countries, to help them make reasonable solutions and achieve scientific production processes.
Packaging & Shipping
Standard international export packing.Equipment was covered with plastic bags and was loaded in the wooden box that with steel frame structure. Spare parts will be protected in water proof bags and boxes.
FAQ
1. How long is the warranty period for the equipment?
2-year warranty, lifetime service
2. Do you have staff to install the equipment?
Yes, we can send technicians to your country to guide the installation.
3.Are Siemens motor and stainless steel used?
As long as you need, we can provide.
4.Can your equipment run 24 hours a day?
Our equipment is strong and durable.lt can operate 24 hours a day.
5.How long will it take to produce the equipment?
Expected to take 30-50 days.
