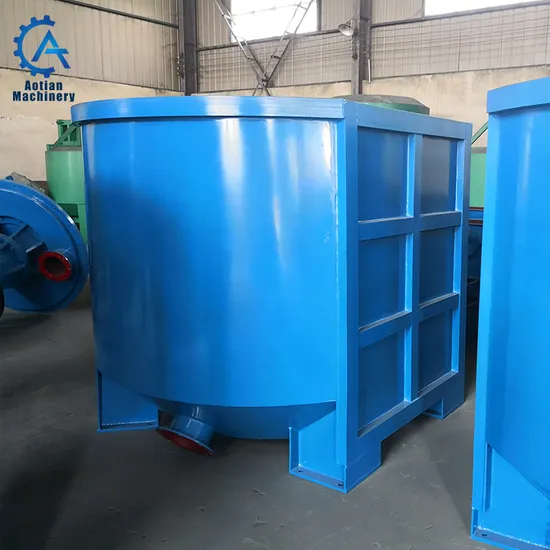

Pulping Equipment D Type Hydrapulper for Paper Machine
Basic Info.
Model NO.
AT
Sheet Former Type
Cylinder Mould
Paper Thickness
Normal Specification Paper
Automation
Automatic
Certification
CE
Customized
Customized
Condition
New
After-sales Service
1 Year
Product Name
D Type Hydrapulper
Pulping Concentration
2-4%
Tank Diameter
3200
Impeller Diameter
150
Impeller Speed
320r/Min
Motor Power
132kw
Material
Pulper Body Is Inside Liner Stainless Steel304
Bearing Cast
45 Steel Adjustment Treatment
Transport Package
Customized
Specification
customized
Trademark
Aotian
Origin
Henan, China
HS Code
84391000
Production Capacity
30set
Packaging & Delivery
Package Size
3000.00cm * 1500.00cm * 2500.00cm
Package Gross Weight
100.000kg
Product Description
Pulping equipment D type hydrapulper for paper machine Please read down1.New energy saving rotor to improve the hydraulic circulation and pulping efficiency, less power consumption.
2.D-type vat structure to change the stock flow, quick and frequent contacts between rotor and pulp, short pulping time, more capacity.
3.Adjustable clearance between rotor and pulper plate, raised pulper, heavy impurities drop to reject vat and trash well easily to avoid the wear of rotor and pulper plate.
1.New energy saving rotor to improve the hydraulic circulation and pulping efficiency, less power consumption.
2.D-type vat structure to change the stock flow, quick and frequent contacts between rotor and pulp, short pulping time, more capacity.
3.Adjustable clearance between rotor and pulper plate, raised pulper, heavy impurities drop to reject vat and trash well easily to avoid the wear of rotor and pulper plate.
| Model | AT-23 | AT-24 | AT-25 | AT-26 | AT-27 | AT-28 | AT-29 | AT-30 | AT-31 | AT-32 | AT-33 | AT-34 | AT-35 | AT-36 |
| Nominal Volume (M3) | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 50 | 60 | 70 | 90 | 120 | 140 |
| Consistency (%) | 3-5% | 3-5% | 3-5% | 3-5% | 3-5% | 3-5% | 3-5% | 3-5% | 3-5% | 3-5% | 3-5% | 3-5% | 3-5% | 3-5% |
| Capacity (T/D) | 20-60 | 60- 100 | 90- 120 | 140- 180 | 180-230 | 230-280 | 260- 330 | 300-380 | 370-450 | 460- 550 | 550- 650 | 650- 800 | 800- 1000 | 1000-1200 |
| Motor power (Kw) | 75 | 110 | 160 | 185 | 220 | 280 | 315 | 355 | 450 | 560 | 630 | 900 | 1100 | 1250 |
