CE Certification 2300kg Lifting Capacity Two Post Parking Lift/Underground Car Parking Lift

Product Description

Product Description

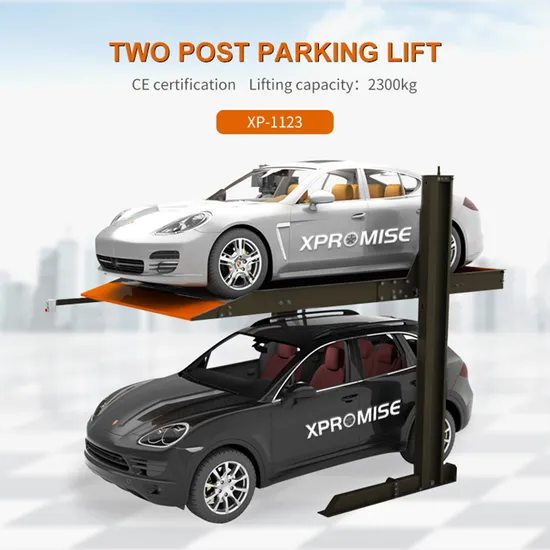

CE Certification 2300kg Lifting Capacity Two Post Parking Lift/Underground Car Parking Lift
Model: XP-1123
HE-1118 is a new generation car parking lift of two post type. newly developed for lifting capacity 2000kg.Each lift creates one more parkin space, capable of stacking a sedan above a medium SUV on ground. Its compact structure enables smaller cover area than all existing models. An ideal product for home garages, apartment buildings. commercial buildings. etc. that with insufficient headroom as required by HE-1123 or HE-1127.
1. Carriage
2. Transparent oil tank (steel oil tank is optional)
3. Galvanized waving plate
4. Electric box
5. Key switch & emergency stop button
6. Dynamic anti-falling lock
7. Front footage
8. Limit switch
9. Power pack
10. Photocell sensor Clear platform width of at least 2300-2500 mm.
According to ISO 3864 the floor has to be marked with 100 mm wide yellow-black at a distance of 500 mm from the platform edge by the purchaser (to be performed according to local regulations.)
The lowering speed of an empty platform is considerably lower than a loaded one.
It is not possible to have channels or undercuts and/or concrete haunches along the floor-to-wall joints. It the event that channels or undercuts are necessary, the system width needs to be reduced or the installation width needs to be wider.
The manufacturer reserve the right to construction or model modifications and/or alterations.
Furthermore, the right to any subsequent part modification and/or variations and amendments in procedures and standards due to technical and engineering progresses in the art or due to environmental regulation changes, are also hereby reserved.
Product Parameters

Vehicles parked per unit	2	Power supply	100-480V. 1/3P. 50/60Hz
Rated capacity	2300kg	Finishing	Power coating with Akzo Nobel powder
Available car length	5000mm	Pump motor power	2.2Kw
Available car width	1850mm	Pump flow	2.6ML/r
Available car height	2050mm	Pump working pressure	16-17MPa
Drive mode	Hydraulic cylinder+chains	Hydraulic cylinder	Italian Aston seals
Operation	Key switch	Hydraulic oil	L - HV 46#
Lifting speed	<50s	Lifting chain	LH1266
Descending speed	<35s	Balance chain	LH1066

Unit A

Total width required	Clear platform width
2547	2100
2647	2200
2747	2300
2847	2400
2947	2500

Unit A+B

Total width required	Clear platform width
4929	2100
5129	2200
5329	2300
5529	2400
5729	2500

Unit A+B+B

Total width required	Clear platform width
7311	2100
7611	2200
7911	2300
8211	2400
8511	2500

Product Features
1. Lifting capacity 2300kg.
2. Car heights on ground up to 2050mm.
3. Platform width up to 2500mm.
4. Lifting height adjustable by limit switch.
5. Electric auto lock release enables easier operation .
6. 24V control voltage avoids electric shock.
7. Galvanized platform, high-heel friendly.
8. Bolts & nuts passing 48hrs Salt Spray Test.
9. Driven by hydraulic cylinder + Korean lifting chain.
10. Synchronization chain keeps platform level under all conditions.
11. Akzo Nobel powder coating provides long lasting superficial protection.
12. Proven high end quality with CE certificate tested by TUV. 1. Limit switch in the top of the post. When the platform goes to the appointed height, it will automatic stopped to avoid the wrong operation
2. Pressure relief valve and pressure compensate flow control valve
3. Auto locking system in case electrical failure
4. Mechanical anti-falling safety lock every 100mm on the pos
5. Photocell sensor available to check under car and avoid trespass
6. Synchronization chain
7. Overload protection device for hydraulic power pack
8. Electric protection for power over load or under voltage
9. Emergency stop button
10. 24V electric lock release has no harm for operatorNotes
Scope of application:
Suitable for residential buildings, office buildings and business premises, hotels
Only for long-term users that have been instructed on how to use the system
For frequently changing users (e.g. for office, hotel and business premises or similar)
- only parking on ground level
- performance of technical system adjustments in necessary
- consultation with XPROMISE is mandatory
Noise protection:
Insulation figure of the construction of min. Rw = 57 dB
Walls which are bordering the parking systems must be done as single wall and deflection resistant with min. m =300 kg/ m2
Solid ceiling above the parking systems with min. m = 400 kg/ m
At differing constructional conditions additional sound absorbing measures are to be provided by the customer
The best results are reached by separated sole plates from the construction.
Electrical installation preparation:
Cabling preparation to be performed by the customer:
- Up to the main switch to be in place prior to starting the installation operations
- Connection to the main switch during installation
- System functional check testing can be performed by the electrician provided by the customer
Grounding and potential equalization:
- To be performed by the customer compliant to local regulations
- Connections required every 10 meters
Protection against corrosion:
Independent of a maintenance workings has to be carried out according to XPROMISE Cleaning and Maintenance Instruction regularly.
Clean up galvanized parts and platforms of dirt and road salt as well as other pollution (corrosion danger)!
Temperature:
The installation is designed to operate between +5°and +40°C. Atmospheric Humidity: 50% at +40°C.If the local circumstances differ from the above please contact XPROMISE
Fire safety:
Each and every fire safety requirement and all possible mandatory item(s) and equipment(s) (fire extinguishing systems and fire alarm systems, etc.) are to be provided by the customer.
Parking:
- Drive the car backward onto the appropriate position of the platform. Collision with the control arm and side beams shall be avoided.
- Put the brake on after vehicle parked on the targeted position to avoid any accidental movement
- Open the car door carefully to avoid any collision. Pay attention to the waving plates and side beams in case any falling down of person
- Turning UP to lift the car to the appropriate position, and the platform will be locked automatically.
- Before another vehicle parked under platform, please check and make sure the nether vehicle is lower than platform height, to avoid any damage.
Railings:
If walkways are arranged directly to the side or behind the systems, railings have to be provided acc. EN ISO 13857 by client acc. to local requirements, height min. 200cm.
Maintenance
1. Do lubrication on guide rail and guide pulley once per month.
2. Do lubrication on balance chain once per month.
3. Change all the hydraulic oil three months after first operation;and change oil every nine months after first changing.
4. Frequently check the screw nuts of bolts fixing the electromagnet and locking plate, if any screw nut is loosening please fasten it asap.
5. If any noise comes out from electromagnet, please replace it asap. 6. The seal in hydraulic cylinder should be replaced every two years.
7. The roller and sliding block should be replaced every two years.
8. The valve element in solenoid valve and filter in power unit should be cleaned every half year.
9. Before operation, please check the connector of electromagnet if it's loosening please fasten it; then do testing on top limit switch and photocell sensor, if it cannot work please fix the problem, and if cannot fix it please replace it. Factory Tour
Yantai Lift Equipment Co.,Ltd. is a joint-stock enterprise specializing in a manufacturing and marketing of Wheel alignment, Car lift, Tire changer, Wheel balancer and other auto inspection instruments. Our company has built a reputation for innovation and visionary leadership in the application of the newest technologies to automotive car service equipment.
3D Wheel Alignment Tire Changer Machine Wheel Blancer Machine
Trade Info

Trade Terms	FOB / CFR
MOQ	3UNITS (USD200.00 extrally charged for LCL shipment to cover the inland freight + custom declaration fee)
Port	QINGDAO
Shipment	BY SEA /AIR
Payment Terms	T/T
Payment condition	30% prepayment,balanced againt BL copy&L/C at sight.
Supply Capability	1000units/month
Sample Availability	Yes ,But all freight(Inland freight +seafreight) covered by buyer
Sample Time	5-10days(depends on whether have in stock)
Lead Time	25-30days(Rush season 5-10days longer)
Packing	Metal frame&Carton
Delivery time	30-45days shipping time (depends on destination position)
Service	1% free parts;1year warranty after port of destination
