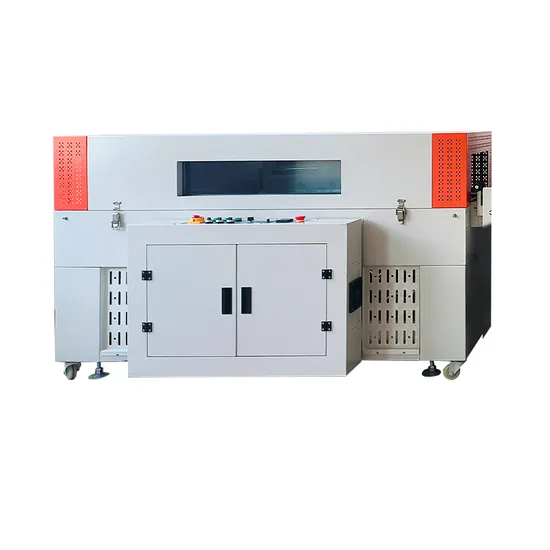

Automatic POF/PE Film L Type Heat Shrink Wrapping Machine

Product Description

Detailed Photos Automatic POF/PE Film L Type Heat Shrink Wrapping Machine
Product Description
Visual Window Heat Wrapping Machinery Shrink Machine for box
Shrink Machine,Sealing cutting machine
Advantages:
1.Professional one-on-one after-sales guidance, simple operation, easy maintenance
2. Te flon blades, firm sealing
The sealing and cutting blades are coated with Te flon, offering non-stick, high-temperature resistance, ensuring seals remain uncracked, non-carbonized, smoke-free, and zero pollution
3.Real-time sensing, automatic sealing and cutting
4.Constant-speed motor, X-axis linear motion
Utilizes a high-performance constant-speed motor to drive a ball screw mechanism, powering the motion of the worktable and achieving X-axis linear movement
5. The machine tool is made of carbon steel with a plastic spray coating. The machine components undergo high-frequency and vibrational stress relief treatment to eliminate internal stresses
6.The cast iron bed has strong stability and a well-designed structure
The design adopts a four-line gauge concept, ensuring strong structural stability and high dynamic accuracy. Both the slider and the worktable contact surfaces are manually scraped for precision
7.The height can be freely adjusted according to the product requirements
Tech Parameters

Model	Voltage	Power	Packing Speed	Heating Furnace Dimensions	Overall Dimensions	Load Capacity	Weight	NOTE
BS4522N	380V	9.6KW	0-15M/Min	150*45*22CM	190*70*130CM	30KG	130KG	The product enters the furnace with a 10 cm height clearance, allowing for expansion due to membrane inflation
BS5530N	380V	12KW	0-15M/Min	150*55*30CM	190*80*138CM	30KG	145KG	Temperature range: 0-300°C
BS6540N	380V	15KW	0-15M/Min	150*65*30CM	190*95*130CM	30KG	150KG	Typical operating range between 140-160°C
BS7540N	380V	15KW	0-15M/Min	150*75*30CM	190*105*130CM	30KG	155KG	Load capacity: the total weight of all products in the furnace should not exceed 30 kg
BS9540N	380V	18KW	0-15M/Min	190*95*40CM	240*115*140CM	30KG	200KG
BS12530N	380V	38KW	0-15M/Min	250*1250*30CM	295*147*145CM	30KG	/	Maximum membrane width: 132 cm.At constant temperature, power is 30 kW
BS5540M-PE FILM	380V	18KW	0-15M/Min	150*55*40CM	250*75*140CM	40KG	240KG	Suitable for cuff-type sleeve machines with a 5 cm height clearance
BS6540M-PE FILM	380V	18KW	0-15M/Min	150*65*40CM	250*75*140CM	40KG	240KG	Suitable for cuff-type sleeve machines with a 5 cm height clearance
Visual BS4525N	380V	12.3KW	0-15M/Min	150*45*25CM	190*70*138CM	30KG	140KG	It features a visible window, adjustable wind speed, fast speed, and high temperature.

Our Service 1. We can customize machine according to your requirements and your products.
2. One year Warranty. We will replace the spare parts for free within one year which are non-man made damage except the wearing parts. After the guarantee, we will offer you the most favorable lifelong spare parts. FAQ Q1: How do we test your machine?
When the machine complete manufactured, we will send video for you check , you can also come to our factory to test and learn how to operate it.
Q2: What information shall I provide you when I need your offer?
Normally, please tell us what product you plan to pack and please send me your product size(L*W*H) with weight then we can quote exactly what you need.
Q3: More questions or information please feel free to contact us at any time!
