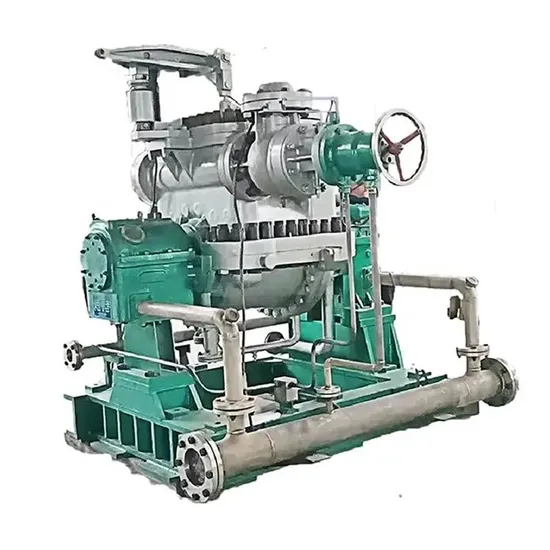

Small Back Pressure Steam Turbine Generator, Condensing 1 MW Steam Turbine, Biomass Steam Turbine Generator

Product Description

Products Description:
Our business scope covers EPC, supply equipment and materials for thermal power including boiler,turbine, generator and their auxiliaries, BOP, electricand C& l etc.,
The condensing single-layer, fast-assembled steam turbine generator set has the advantages of impact structure, sensitive regulation, safe and reliable operation, etc. lt is mainly suitable for small and medium sized thermal power stations, especially for places far away from cities, metallurgical, chemical and cement enterprises where self-support power station can be built by using waste heat, lt also can operate in network.
1: engine parameters:

Product name	2MW back pressure steam turbine small steam turbine
Model	B2.0-3.43/0.7
Rated power	2000kW
Rated speed of steam turbine	7500 r/min
Rated speed of generator	1500 r/min
Turning direction	When viewed from the turbine end to the generator, the turning direction of the turbine is counterclockwise
Layout	Steam turbine+gearbox+generator
The steam inlet pressure	3.43 MPa(A)
The steam inlet temperature	435ºC
Exhaust steam pressure	0.7 MPa(A)
Flow rate of steam is	25 th
Tripping speed of steam turbine	8250~9000

Product Application & Factory WorkShop:

KEY FEATURES: Comprehensive synchronising & loadsharing capabilities • Built in governor and AVR control • Base load (kW export) control • Positive & negative kVAr export control • Mains (Utility) decoupling protection • 4-Line back-lit LCD text display • Multiple Display Languages • Five key menu navigation • LCD alarm indication • Heated display option available • Customisable power-up text and images • DSENet expansion compatibility • Data logging & trending facility • Internal PLC editor • Protections disable feature • Fully configurable via PC using USB, RS232, RS485 & Ethernet communication • Front panel configuration with PIN protection • Power save mode • 3 phase generator sensing and protection • Generator current and power monitoring (kW, kvar, kVA, pf) • kW and kvar overload alarms • Reverse power alarms
