Solar Panel Energy 700W PV Solar Module
Basic Info.
Model NO.
RS700M-132HC
Number of Cells
132cells
Application
Home Appliances, Solar Energy Storage Systems
Condition
New
Certification
EST, ISO, CB, CE
Material
Monocrystalline Silicon
Weight
34.4kg
Solar Cell
5bb 6bb 9bb 10bb 12bb Mono
Glass
3.2mm, High Transmission, Ar Coated Heat Strengthe
Junction Box
IP68 Rated
Cable
4mm2; Portrait/Landscape Length
Cell Orientation
132cells(6*22)
Connector
Compatible Mc-4/Male/Female/Fuse
Frame
Silver / Black Anodized Aluminium Alloy
Tpt Backsheet
White/Black Backsheet
OEM
Acceptable
Transport Package
31PCS/Pallet, Wooden Box
Specification
2385*1303*35 mm opt
Trademark
Rosen Solar/OEM/ODM
Origin
China
HS Code
854140
Production Capacity
10000000watt/Week
Packaging & Delivery
Package Size
90.00cm * 90.00cm * 90.00cm
Package Gross Weight
34.500kg
Product Description
Product DescriptionTechnical Specification Data(STC) of Solar Panel
| Model of Solar Panel | RS650M-132HC | RS660M-132HC | RS680M-132HC | RS690M-132HC | RS700M-132HC |
| Peak Power Watts-Pmax(Wp)* | 650 | 660 | 680 | 690 | 700 |
| Maximum Power Voltage-Vmpp(V) | 37.9 | 38.3 | 39.1 | 39.5 | 39.9 |
| Maximum Power Current-Impp(A) | 17.16 | 17.24 | 17.40 | 17.48 | 17.55 |
| Open Circuit Voltage-Voc(V) | 45.0 | 45.4 | 46.2 | 46.8 | 47.2 |
| Short Circuit Current-Isc(A) | 18.39 | 18.47 | 18.63 | 18.71 | 18.79 |
| Module Efficiency (%) | 20.9 | 21.2 | 21.9 | 22.2 | 22.5 |
| Power Output Tolerance-Pmax(W) | 0~+5 | ||||
| Temperature Coefficient of Pmax | -0.34%/ºC | ||||
| Temperature Coefficient of Voc | -0.26%/ºC | ||||
| Temperature Coefficient of Isc | 0.05%/ºC | ||||
| STC | Irradiance 1000W/m2, Cell Temperature 25ºC, Air Mass AM1.5. *Measuring tolerance: ±3%. | ||||

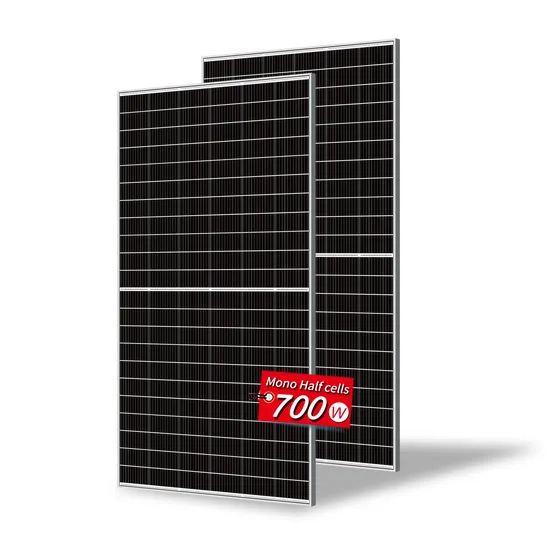

Detailed Images of Solar Panel
Packing & Delivery
Solar Panel Packing Details : 31pcs per pallets or in wooden box
Delivery Details : 5-7days
Factory of Rosen Solar
Projects of Rosen Solar
