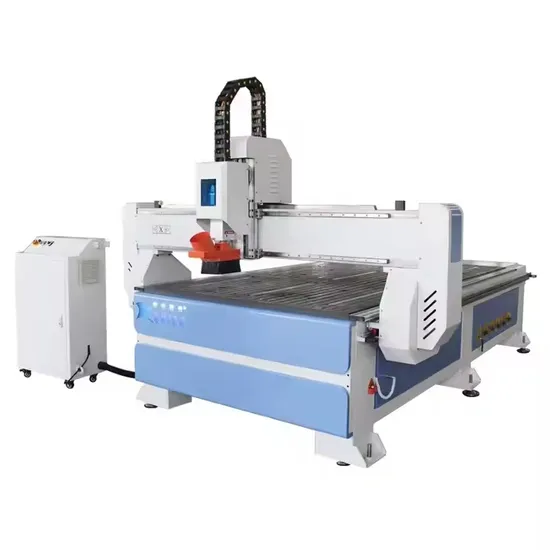

CNC Woodworking Machinery 3 Axis 1325 Wood Cutting Engraving Machine for Carving Wood

Product Description

High-Precision 4x8ft Woodworking CNC Router Machine with Vacuum Table Product Description
Our KK series of CNC routers consists of excellent options for craftsmen looking for a cheap CNC machine to get their cuts done without bl Owing the budget. Efficient and affordable even for small shops, these 3axis CNC routers are low in price and high in quality. Whichever you Are looking to grow your business with a larger machine or you're just searching for great value, these routers will simplify the process of production without forcing you to dig deep into your pockets. 4th axis rotary option available.
Detailed Photos

KK1325
Working Area	XYZ axis	1300*2500*200mm
Height	Z axis	200mm
Working Table		Vacuum (6 section) with T slot aluminum alloy platform
Move System	XYZ axis	XY:rack Z: ball screw
		TAIWAN guide
		Step motor
Control System	CNC system	DSP A11
	Memory	8G
	LCD Panel	3"LCD
	Interface	USB
Accuracy	Moving	±0.005/300mm
	Repeat	±0.005mm
	DPI	0.002mm
Speed	Max.Moving Speed	30m/min
	Max.Engraving Speed	15m/min
Spindle	Power	3.5KW air cooling
	Rotary speed	0-18000rpm
	Collet	ER25-Φ3.175-Φ16
Power supply	AV	220V/50HZ 380/50HZ
Lubrication System	Thin oil lubrication	Manual type
Package	Weight	1000kgs
	Dimension	2100*3200*1700mm
Working environment	Temperature	+5ºC to +35ºC

Spare parts
Spindle 4.5kw air cooling
Imported bearings with good quality, long working life Application: Milling,Engraving,Drilling
Every spindle motor must be passed polishing process, Improve spindle concentricity to increase motor working life.

Handheld controller DSPA11
New three-axis linkage motion mode to achieve comprehensive controlling ,Support drive and spindle error alarm function .Large storage space, perfect U disk compatibility, fast reading speed, safe and reliable U disk-processing. Support intelligent file checking function.
Parameter backup and restore function to prevent the loss of important parameters. High anti-jamming intensity passes many CE tests.
Liner guide way 20mm
Precision N class liner guide way with precision less then 0.02mm The liner guide way has middle preloading design,features of high precision and stability may prolong liner guide way.

Vacuum table
A vacuum table top, routed into the standard Phenolic Top will hold your work pieces in place by the air pressure exerted by a vacuum pump. A vacuum pump eliminates the need for clamping your work piece to the table top and can be a time‐saver if your work requires a constant parade of work piece changes throughout the day.
Application
Sign and graphics fabrication 3 dimensional (3D) machining (sign, plastics, wood, molds, etc.)
Cabinet making Furniture, general woodworking manufacturing
Store fixture, display manufacturing Sheet plastic fabrication
Solid surface machining Non-ferrous sheet metal machining (aluminium, brass,copper, zinc)
Composite machining (graphite, phenolic, Kevlar, etc.)
Sample photos
Packaging & Shipping

Company Profile
Quick CNC was founded in 2006 ,We are one of the best CNC router suppliers in China. Our products are selling well widely all over the world and have good reputations. Our products can meet different requirements from different customers. With the advanced technology, our experienced engineers can also customize according to detailed needs.
Jinan Quick-Fulltek CNC Machinery Co.,Ltd.specializes in R&D and production of various cnc equipment,such as 3 axis cnc, ATC cnc,automatic load and unload cnc,4 axis,5 axis, PTP, panel furniture cnc. All series machines are with one-year warranty. Meanwhile, customized equipment are available according to different requirements.
Facing the chances and challenges of Global Economic integration as well as being offered with opportunities Knowledge Economy Era,we are determined to achieve our dreams step by step with the advantages of high technology. We aim to be a professional,branding and international suppliers for woodworking industrial solutions.

Our service
1)One year for the whole machine without consumable parts.
2)We will provide the consumable parts at an agency price..
3)24hours online service, free technical support by whatsapp/wechat/call/emails.
4)Machine has been adjusted before delivery,operation disk is included in the delivery,if there is any other questions,please kindly contact us.
5)We have manual instruction and CD (Guiding videos) for software installation ,operation and machines using maintenance.
6)Engineers are avaliable to service machinery overseas.
Special services
(1)If customer have a specific request ,we can according to the clients parameters to customized machine .such as working area,optional accessories ,OME services.
(2)We are Made in China Trade Assurance Supplier.Place orders online ,get full protection under MIC third party guarantees.
Our customers
FAQ
Q: Are you factory or trading company?
A: We are professional factory specialize in CNC equipment for over 13 years.
Q: What's your MOQ? What's your delivery term?
A: Our MOQ is 1 set machine, we usually require 20-30 days for manufacturing, 1 day for packaging.
The exact time will be depended on your order quantity and customized level.
Q: What's your payment term?
A: We normally accept T/T and L/C at sight, other fast payment way is also accepted if the amount is smalll, like
Western union, Mastercard and cash etc.
Q: Whats your warranty time ? What you can supply to us after we bought your machine?
A: We give customer 1 year quality warranty. In case any accident in customer's factory, we will give permanent technic support and spare parts supplying.
