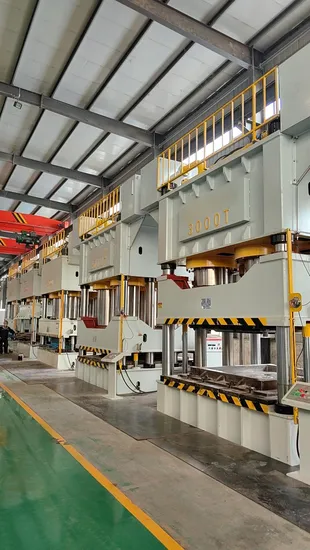

3000t Six Cylinder Steel Door Embossing Machine Hydraulic Press

Product Description

Polypropylene Chamber filter press plate hydraulic press 1500T 2000T 2500T 3000T composite 6 columns and 4 cylinders
Hydraulic press is suitable for pressing of materials of plasticity, such as punching, bending, flanging thin stretch also can perform calibration, pressure equipment, plastic products and powder products of pressure molding. This series of hydraulic presses are suitable for various stamping processes, such as stretching, bending, forming, blanking and flanging, especially suitable for the following fields (1)Auto parts, body covers, brake pads, fuel tanks, chassis, axle housings, bumpers (2)Household appliances such as washing machines, televisions, refrigerators, etc. (3)Washing tanks, pots, stainless steel kitchen utensils and various other containers

Specification		Unit	2000T	3000T	4500T	6000T	8000T	10000T
Nominal force		KN	20000	30000	45000	60000	80000	100000
Ejecting force		KN	1260	1260	1260	2000	2000	3200
Max. pressure of liquid		MPa	25	25	25	25	25	25
Stroke of slider		mm	400	400	400	400	400	400
Max. opening height		mm	500	500	500	500	500	500
Working table size		mm*mm	1500x2500	1500X2500	1580x2550	2200x3500	2400x4200	2500x4500
Ejecting stroke		mm	450	450	450	450	450	450
Speed of slider	Idle speed	mm/s	120	150	150	150	150	150
	Working speed	mm/s	5-10	5-10	5-10	5-10	5-10	5-10
	Return speed	mm/s	80	80	80	80	80	80
Press plate thickness		mm	0.8	1.2	1.5	1.8	2	2

1. Hydraulic power part, manual and electric 2. Mechanical control part; 3. Working cylinder part; 4. Hydraulic power part; By hydraulic oil pump. The motor is connected to the plunger pump with an elastic coupling 5. Mechanical control part; It is controlled by distribution box and combination button switch 6. Tubing part: connected by high pressure seamless steel tube
