Wood Working Machine PVC MDF Automatic Wood Edge Bander Machine Edge Banding Machine Price

Product Description

Product Description

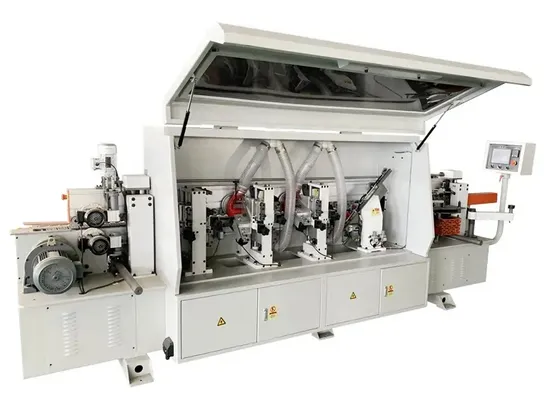

Automatic Edge Banding Machine

This machine has six function Gluing-Press- End cutting- Trimming -Scraping-Polishing function,suitable for solid wood fiberboard,particle board,MDF,and other panel for furniture,edge of the main PVC,polyester,melamine,and wood etc.The steel plate base was laser cutting ,welded body made of solid defromation does not increase the stability of the machine to ensure each part can work well ,famous brand motor and high quality electric componets.

Product Specification

Parameters
Model	365
Panel Thickness	10-60mm
Edge Band Thickness	0.3-3mm
Panel Width	≥60mm
Panel Length	≥150mm
Feeding Speed	15-23m/min
Working Pressure	0.6Mpa
Voltage	380V/50HZ/3PH
Gluing Motor	0.75KW 50HZ
End Cutting Motor	0.37KW * 2
Trimming Motor	0.75KW * 2
Buffing Motor	0.37KW * 2
Conveyor Motor	2.2KW
Glue Pot Heating Power	2.4KW
Lighting Power	0.05KW
Lifting Motor	0.25KW
Total Power	8.65KW
Dimension	4100x800x1620mm
Wooden Crate Package	4200×900×1720mm

Detail Photos

Gluing and Press Unit End Trimming Unit

Trimming Unit Scraping Unit

Optional Function

Pre milling Corner rounding

Related products

Factory Details

FAQ

Q1. Can I order samples from your company? Yes, we welcome sample orders to test and check the quality. Q2. What about delivery time? It takes about 3-10 days for samples, and about 1-2 weeks for mass production after order confirmation Q3. Do you support OEM or ODM? Yes, our main products and services are OEM&ODM, we always provide our customers with high-quality OEM&ODM servicel Q4. How do you ship your goods and how long does it take to arrive? We usually ship by DHL, UPS, FedEx or TNT. Usually it takes 7-10 days to arrive. Air and sea are also optional. Q5. What payment methods do you support? We accept multiple payment methods such as PayPal, Visa, MasterCard, Alipay Trade Assurance, Western Union and T/T. Q6. How to place an order for a product? First let us know your requirement or application. Secondly, we quote according to your requirement and purchase quantity. Then confirm with you and deposit the deposit Formal order. Fourth, we arrange production.
