China Manufacturer Plastic Table Desk Panel Making Blowing Mold/Mould Machine
| Negotiable | 1 Piece (MOQ) |
Basic Info.
Model NO.
PXB2M
Making Method of Parison
Extrusion-Blow Molding
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Bottom Blowing
Available
Material
PP, PE, ABS...
Total Weight
86t
Output(Dry Cycle)
180 PC/Hr
Die Head Option
Accumulator Head
Production Usage
Desk Panel
Multi-Layer
Available
Multi-Color
Available
Screw Diameter
120mm
Screw L/D Ratio
30
Transport Package
Film Packing with Wooden Bottom
Specification
Max capacity 2000L
Trademark
Puxin
Origin
Jiangsu
HS Code
847730100
Product Description
PXB2M Blow Molding MachineSpecial for Desk Panel
- Large Mold Space with durable mold platen.
- Large capacity of Accumulator head with MAX die-pin diameter 1200mm
- High force of clamping with fast action speed
- Special usage for Round Table, Desk Panel.

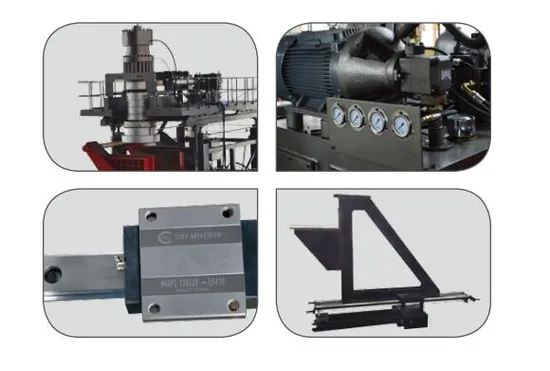

Configuration List
| PLC | MITSUBISHI | Japan |
| Touch Screen | WEINVIEW | Taiwan |
| D.C Driver | Eurotherm | U.K |
| Power Supply | MEAN WELL | Taiwan |
| Relay | OMRON | Japan |
| Hydraulic Valves | YUKEN | Japan |
| Hydraulic Pump | YUKEN | Japan |
| Contactors | LS(LG) | Korea |
| Solid relay | FOTEK | Japan |
| Breaker | LS(LG) | Korea |
| Temperature Control Module | MITSUBISHI | Japan |
| Oil Sealing | DZ | Taiwan |
| Oil Tube | LIEBAO | Taiwan |
| Transducer | GEFRAN | Italy |
| Proximity Switch | KINGTON | Taiwan |
| D.C Motor | XIMA | China |
| Air Valve | FESTO | Germany |
| Parison Controller | Moog | Japan |
| Servo Valve | Moog | Japan |
Parameters:
| Material | PE,PP,ABS... | |
| Max container capacity | L | 2000 |
| Output(dry cycle) | pc/hr | 180 |
| Machine dimension(L×W×H) | M | 10.5×5.1×8.5 |
| Machine weight | T | 85 |
| Clamping Unit | ||
| Clamping force | kn | 2500 |
| Mold platen size(W×H) | mm | 1950×1950 |
| Platen opening stroke | mm | 600-2200 |
| Platen moving stroke | mm | 1600 |
| Max mold size(W×H) | mm | 2150×2150 |
| Mold thickness | mm | 620-1100 |
| Power | ||
| Servo oil pump motor power | KW | 37 |
| Servo pump displacement | L/MIN | 200 |
| Blow pressure | MPA | 1 |
| Air consumption | M3/MIN | 6 |
| Cooling water pressure | mpa | 0.3-0.5 |
| Water consumption | L/min | 60 |
| Average energy consumption | KW | 250-300 |
| Extruder unit | ||
| Screw diameter | mm | 120 |
| Screw L/D ratio | L/D | 30 |
| HDPE Melting capacit for HDPE | kg/hr | 500-600 |
| Number of heating zone | zone | 6 |
| Screw heating power | kw | 30.2 |
| Screw fan power | KW | 0.6 |
| Extruder motor power | kw | 132 |
| Die head | ||
| Number of heating zone for single die head | zone | 8 |
| Heating power for single die head | kw | 78 |
| Max die-pin diameter | mm | 1200 |
| Accumulator capacity | L | 55 |
| (HDPE) Accumulator weight(HDPE) | KG | 41 |
Delivery Time:
- No later than 90 days after receipt of the deposit
Training:
- We provide training service for two or three operating men for free (but the cost for trainer's board and lodging is not included).
Installation:
- The supplier will send one specialist to test run the machine until it is running in normal state.
Guarantee:
- Our guarantee is valid for a period of 12 months. If the malfunction caused of the machine's self quality, we will troubleshoot it for free.
Auxiliary Equipments:
- Auxiliary equipments for production line are available and optional, please kindly ask for quotation.
