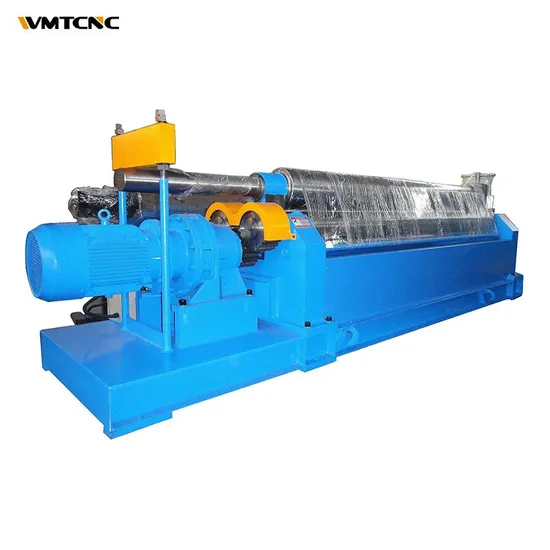

W11-8X2000 2m Steel Plate Mechanical Rolling Machine
| US$5,500.00-6,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
W11 8x2000
Warranty
1-year
Condition
New
Certification
RoHS, ISO 9001:2008, CE, CS
Automation
Semi-Automatic
Suitable for
Rubber, Copper, Aluminum, Carbon Steel, Stainless Steel
Type
Roller-Bending Machine
Power
Mechanical
Machine
Metal Sheet Forming
Application
Machinery & Hardware
Type for Fold-Bending Machine
Electrical Bending Machine
Transport Package
Fumigated Exporting Standard Wooden Case
Specification
CE, SGS, ISO9001: 2000
Trademark
WMT or customized logo
Origin
Chizhou, Anhui, China
HS Code
8462299000
Production Capacity
100 Sets Monthly
Product Description
Main specification and mchine details:
Specification | Max Thickness of Coiled Plate | Max Width of Coiled Plate | Yielding Limit of Sheet Metal | Coiling Speed | Min Full Loading Diameter of Coiled Plate | Diameter of Top shaft | Diameter of Bottom shaft | Central distance between Bottom Shafts | Motor Power | Overall dimensions |
| mm | mm | MPa | m/min | mm | mm | mm | mm | Kw | mm | |
| W11-4×1500 | 4 | 1500 | 245 | 5 | 300 | 150 | 140 | 185 | 3 | 2900×720×1000 |
| W11-6×1500 | 6 | 1500 | 245 | 5 | 450 | 160 | 160 | 250 | 4 | 2900×720×1000 |
| W11-6×2000 | 6 | 2000 | 245 | 4.5 | 450 | 185 | 170 | 250 | 5.5 | 3650×820×1050 |
| W11-6×3200 | 6 | 3200 | 245 | 4.5 | 380 | 240 | 180 | 280 | 7.5 | 4850×1100×1100 |
| W11-8×2000 | 8 | 2000 | 245 | 4.5 | 400 | 230 | 180 | 300 | 5.5 | 3700×820×1050 |
| W11-8×2500 | 8 | 2500 | 245 | 4.5 | 600 | 230 | 180 | 300 | 7.5 | 4150×1100×1100 |
| W11-12×2000 | 12 | 2000 | 245 | 4.5 | 600 | 240 | 180 | 280 | 7.5 | 36500×1100×1100 |
| W11-12×2500 | 12 | 2500 | 245 | 4.5 | 600 | 260 | 220 | 340 | 11 | 4200×920×1200 |
| W11-12×3000 | 12 | 3000 | 245 | 4 | 700 | 280 | 250 | 360 | 11 | 4900×1300×1300 |
| W11-16×2000 | 16 | 2000 | 245 | 4 | 650 | 260 | 220 | 340 | 11 | 3700×920×1200 |
| W11-16×2500 | 16 | 2500 | 245 | 4 | 700 | 300 | 250 | 360 | 15 | 4400×1300×1300 |
| W11-16×3200 | 16 | 3200 | 245 | 4 | 850 | 340 | 280 | 440 | 18.5 | 5300×14000×1400 |
| W11-20×2000 | 20 | 2000 | 245 | 4 | 700 | 280 | 250 | 360 | 15 | 3900×1300×1300 |
| W11-20×2500 | 20 | 2500 | 245 | 4 | 850 | 340 | 280 | 440 | 18.5 | 4600×1400×1400 |
| W11-25×2000 | 25 | 2000 | 245 | 4 | 850 | 330 | 270 | 430 | 18.5 | 4100×1400×1400 |
| W11-25×2500 | 25 | 2500 | 245 | 4 | 1200 | 380 | 310 | 550 | 22 | 5600×1550×2000 |
| W11-30×2500 | 30 | 2500 | 245 | 4 | 1200 | 400 | 350 | 550 | 30 | 5760×1700×2110 |
| W11-30×3000 | 30 | 3000 | 245 | 4 | 1200 | 450 | 390 | 600 | 37 | 5400×1700×2210 |
