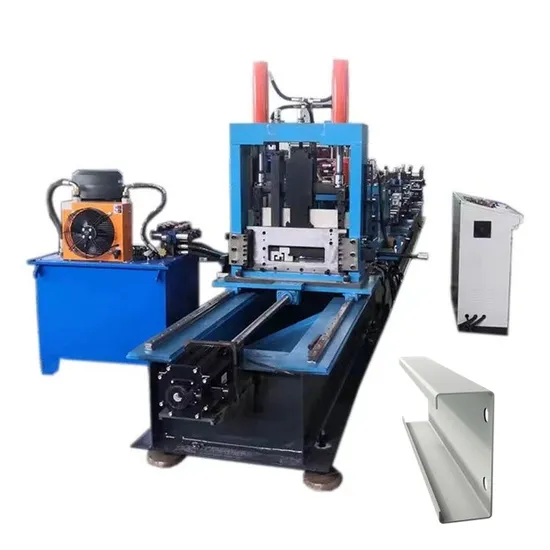

Purlin Frame CZ High Grade Steel Professional Produce Customized Roll Forming Machine

Product Description

Company Profile
Zhongke Forming machine Machine Factory is located in China's machinery and north and Bohal Sea in the east. Botou City has developed convenient and multifunctional traffic lines. The main transport lines in Botou are: BeijingShanghal Railway, expressways and 104 national road. Zhongke is a manufacturer of rich industry experience. Nowadays, our company has formed a complete modern Our products are favored by global customers because of the lightwelght structure, novel design and high degree of innovation.Our company in product production, sales, installation, commissioning and Our factory is a modern enterprise with strong technical strength and production technical performance, in the customer base to harvest good feedback. manufacturing, at the same time in the production, installation, commissioning and maintenance of color steel equipment for users to provide one-stop service and technical guldance.
Product Parameters

Item	Parameters
Coil Thickness(mm)	1.5~4
Max Speed(m/min)	30
Roll standard station (pcs)	18
Main Motor(KW)	30kw (Hydraulic Motor )
Main Shaft(mm)	80mm
Shaft materials	40Cr
Roller Materials	GCr15
Cutting Way	Hydraulic Cutting (7.5KW)
Cutting Blade Materials	Cr12MoV
Hole Punching	3 sets
Control System	PLC control (Xinjie)
Size Change	PLC control / Press Button
C Z Interchange	PLC control / Reverse roll

Hot machine

Our Customers

why choose us

Packaging & Shipping

FAQ
1. Do you have after sales support?
Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running. 2. How to visit your company? a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you. b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you. 3. What can you do if the machine broken? Our machine's warranty period is 12months, if the broken parts can't repair, we can send the new parts replace the broken parts freell, but you need pay the express cost yourself. if after warranty period, we can through negotiation to solve the problems,a nd we supply the technical support for the whole life of the equipment. 4. Can you be responsible for transport? Yes, please tell me the destination port. We can help you to do the shipping if you need. we have rich experience in transport. We can give you the cheaper freight and send the machien to your country port. 5. Why your price is higher than others? As we persist on that each factory should put quality at the first place. We spend time and money on developing How to make machines much more automatic, accurate and high quality. We can make sure thatour machine could use more than 20 years without any problem. We can provide 2 years free qualityassurance. 6. How long the machine could be made? Normally speaking, all the machines could be made without 45 working days. But if you need machines in a hurry, we can make it for you less than a month.
