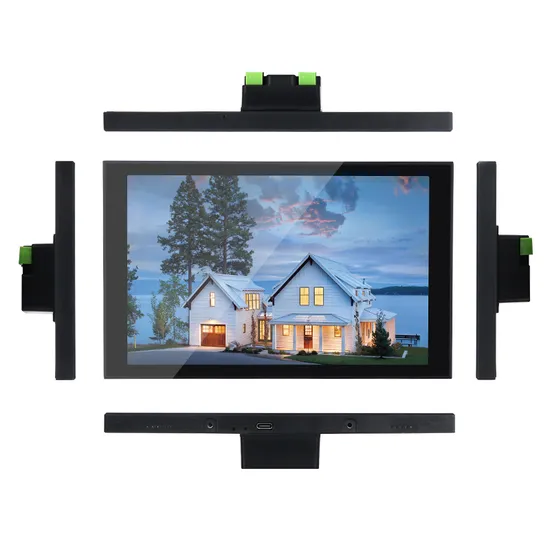

8 Inch in-Wall Indoor Smart Home Automation Aluminum Touch Control Panel
| US$116.00-129.00 | 2 Pieces (MOQ) |
Basic Info.
Model NO.
YC-SM08M
Built-In Bluetooth
Built-In Bluetooth
Built-In Microphone
Built-In Microphone
Card Reader
Without Card Reader
Certification
Ce, ROHS
Cpu Core
Quad-Core
Cpu Type
Rockchip
Display Resolution
1280*800
Drive Interface
Type-C
Fingerprint
Without Fingerprint
Front Camera Pixel
Without Camera
Hard Disk Capacity
32G
Memory
2GB
Network Mode
WiFi
Operating System
Android
Rear Camera Pixel
Without Camera
Remote Control
No
Screen Size
8"
Screen Type
Capacitive Screen
Warranty Period
1 Year
Webcam
Without Webcam
CPU
Rk3566 Quad-Core
RAM/ROM
2GB+32GB
Resolution
1280*800
Brightness
300nits
Touch Panel
Capacitive Touch
Screen
IPS Screen
Power Supply
DC 12V, Poe
Network
WiFi, BLE, Ethernet
Interface
DC, RJ45, Type-C, RS485
Installation
Suitable for EU/Us/86 Type Wall Box
Color
Silver, Black, OEM
CKD/SKD
Support
OEM/ODM
Support
Speaker
1W
Transport Package
Carton
Specification
ABS
Trademark
Portworld
Origin
China
HS Code
8528591090
Production Capacity
50000PCS/Month
Packaging & Delivery
Package Size
26.00cm * 17.00cm * 9.00cm
Package Gross Weight
2.000kg
Product Description
8 Inch In-Wall Indoor Smart Home Automation Aluminum Touch Control PanelProduct Description
Product Parameters
| System | CPU | RK3566 Quad-Core ARM Cortex-A55, up to 1.8GHz | |
| RAM | 2GB | ||
| ROM | 16GB | ||
| System | Android 11 | ||
| Touch panel | Display size | 8 inch | |
| Resolution | 1280*800 | ||
| Touch Panel | 10-Point capactive touch panel, IPS | ||
| Brightness | 300Nits | ||
| Network | WIFI | 802.11b/g/n (5G WiFi optional) | |
| Bluetooth | BLE 5.2 | ||
| Ethernet | 10M/100M | ||
| Interface | RJ45 | 1*Ethernet input, support POE | |
| DC | 1*DC power input | ||
| Type C | 1*Type C | ||
| Reset | 1*Reset hole | ||
| Restart | 1*Restart hole | ||
| RS485 | 1*RS485 | ||
| Media plays | Mic | 2* Mic Built- in | |
| Speaker | 1W*2pcs | ||
| Video | MOV 1080P / AVI / WMV / RM / RMVB / 3GP / MKV / MP4 / ASF/ VOB | ||
| Audio | MP3 / WMA / WAV / AAC / FLAC / OGG | ||
| Entertainment | Video / Movie / Music / FM online | ||
| Others | Battery | No | |
| Installation | In-wall, suitable for EU/US/86 type wall box | ||
| Color | Silver | ||
| Material | Metal case + Glass touch panel | ||
| Language | Support Multi-lanuage | ||
Our Services · We have the professional quality control department to make sure the quality.
· The warranty of our products is 12 months, during this valid period, any quality problem, we will repair the products for you as free, and bear the shipping fee of sending them back to you.
· Your question and inquiry will be replied in 24 hours.
· OEM&ODM are available, we can meet your customized requirements.
Quality Control
Packaging & Shipping
Company Profile
Portworld is a leading provider of touchscreen solutions, specializing in the research, development, and productionof a wide range of products, including smart home tablets, POE industrial embedded touch panels, digital signageand touch monitors. Founded in 2008, we are committed to delivering high-quality OEM/ODM solutions to meetthe unique needs of our clients. Whether you need a one-stop solution or a customized project, our products rangefrom 4" to 65" and are designed to meet the demands of today's fast-paced world.
We have 15 years of experience in the industry and our products come with multiple processors (Rockchip, MTKIntel, AMD, Snapdragon, Spreadrum, etc) and with different OS (Android / Linux(Ubuntu/Debian)/Windows).
Our adept software team excels in BSP/SDK/C#/Python/OT/JAVA compilation, ensuring the highest level of softwarecompatibility and performance. With a team of over 300 dedicated employees, we are poised to provide the bestsolutions and service to our valued clients.
FAQ 1. Do you accept sample order?
A: Yes
2. How long does it take to deliver the goods?
A: Sample orders are usually shipped within 1~3 working days if in stock. Bulk orders depend on quantity.
3. What is your Mini Order Quantity (MOQ)?
A: It depends on different products. There is no MOQ for ad players; the MOQ for tablets is 500pcs.
4. What's your payment term?
A: 30% advance deposit by T/T, and 70% paid before shipment.
5. Do you support customization?
A: Yes, we support OEM/ODM, such as customized logo, customized packaging, customized colors, etc.
6. Do you support CKD/SKD service?
A: Yes, we support CKD/SKD service for customers to do customized assembly in their side.
