High Precision 2 Phase Electric Hybrid Stepping/Stepper Outboard Boat Motor/Car Conversion Kit for 3D Printer and CNC Machine

Product Description

Product Description

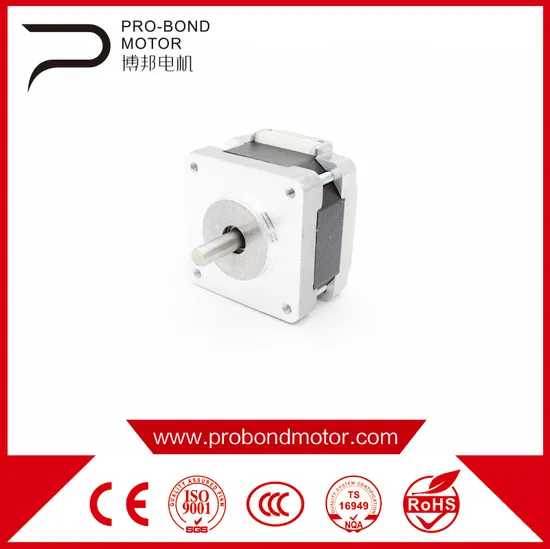

39BYG Hybrid Step Motor
Basic Info
Item			Data
Step Angle			1.8°
Tem Rise			60K max
Working Tem			(-20ºC~+70ºC)
Insulation Resistance			100MΩ min 500VDC
Surge Test			500VAC for 1min
Radial Clearance			0.O2max(450g load)
Axial Clearance			0.O8max(450g load)
Max Radial Pressure			10N(20mm from the flange)
Max Axial Pressure			25N
Insulation Class			E

Specification
PN	Rated Voltage	Step Angle	Length	Current	Resistance	Inductance	Torque	Lead wire QTY	Positive inertia	Weight
	V DC	(°)	(L)mm	A	Ω	mH	mN.m	No.	g.cm²	Kg
20BYGH101Y	4.1	1.8	20	0.6	6.8	1.3	20	4	1.8	0.12
39BYGH079	10	1.8	20	0.4	25	22	130	4	11	105
39BYGH009	14	1.8	20	0.25	56	23	100	4	15	120
39BYGH007	10	1.8	20	0.4	25	27	150	4	15	120
39BYGH109C	13.6	1.8	20	0.4	34	43	180	4	20	140
39BYGH105D	6	1.8	20	0.2	30	24	160	4	20	140
39BYGH221	10	1.8	20	0.4	25	34	180	4	23	155
39BYGH301C	3.52	1.8	20	0.8	4.4	7.9	190	4	30	192
39BYGH501C	3.6	1.8	20	1.5	2.4	4	350	4	44	265

Probond motors designs brush, brushless, stepper, hysteresis and linear motors to meet customers requirements. Our motors use standard and special components with customer selected torque/speed requirements that can be modified to your applications. The AC/DC gear motors are based upon to distinct magetic circuits that optimize motor design for high speed low torque and low speed high torque. These motors give you lower rotational losses, excellent thermal transfer, interchangeable end caps, easily sealed. Options include connectors, encoders, shaft modifications, dimensional changes, etc. Probond motor owns professional sales team and engineer team with more than 10 years experience in motor industry, based on China mainland handling overseas business for years, we know your needs better than others. Probond Sonicare Toothbrush Motor and Thermostatic Valve Hysteresis Motor are our hot products on sell in 2017 with highly quality level and competitive price. Please kindly contact us to get a catalogue.
