Ce Certified Electric Wheelchair Lift for Van, Disabled Wheelchair Lift (WL-D-880U)

Product Description

Product Description
The WL-D series wheelchair lifts are designed for installation in the side or rear doors of domestic full-size vans, three standard models ensure that there is a lift to fit your needs.
With dual hydraulic lifting arms, you'll come to rely on the lift's strength and dependability day after day, year after year.
The WL-D Series wheelchair lifts are fully hydraulic in operation, for both the fold/unfold and up/down cycles. Lift operation is controlled by the standard hand-held control.
The wheelchair lift is designed to make your travels more enjoyable, each lift features XINDER's new design to ensure the quietest possible riding environment.
There are three types of the lifts:
DN-880 The lift with a whole piece of platform
DN-880U The lift with a unique "fold-in-half" platform
DN-880S The lift with a split platform
Product Advantages
CE certificated
Compact design
Powerful hydraulic system ensures quiet, smooth, stable and easy operation.
Automatic inboard and outboard roll stops
Welded high strength all-steel frame
Double coatings with electrophoretic coating and powder coating for best corrosion prevention
Non-slip platform
Built-In manual backup system
Sound alarms during operation
Interlock function with door operation
Permanent no-lube bearings at all major pivot points
Lifting capacity: 350Kg Product Parameters

DN-880U Wheelchair Lift

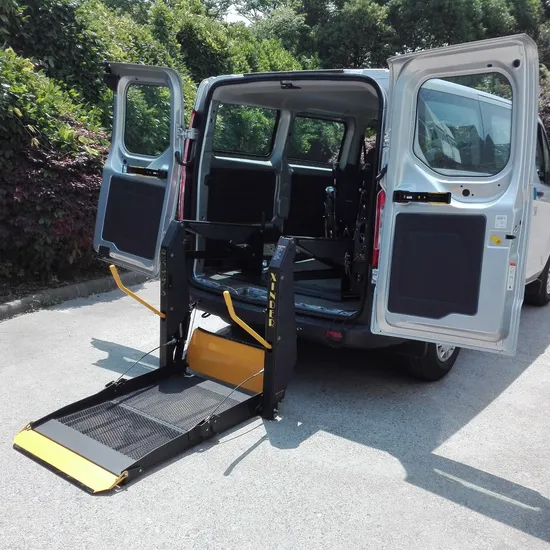

This wheelchair lift is the lift with a unique "fold-in-half" platform. When the lift is stowed, it provides an unobstructed view for the driver, helping to eliminate hazardous blind spots, allows a clear view for the passengers, and is virtually unseen from outside. Plus, because the platform folds when stowed, no raised-roof modification for your personal vehicle is required - even when a long platform is necessary for larger wheelchairs and power scooters. The lift is quiet and easy-to-maintain. Unobstructed view from within the vehicle Added safety benefit of minimized blind spots Unique folding platform accommodates longer platform scooters and wheelchairs without requiring raised roof or door Stable and compact when stowed

DIMENSIONS

Model	DN-880-1150	DN-880S-1150	DN-880U-1150	DN-880-1250	DN-880S-1250	DN-880U-1250
Platform size	1140*720	1150*720	1140*720	1240*820	1215*820	1240*820
overall width	1137	1137	1137	1237	1237	1237
overall height	1215	1235	1200	1315	1300	1200
overall depth	435	490	490	435	490	490
max lifting height	880	880	880	880	880	880
Volt	12-24V	12-24V	12-24V	12-24V	12-24V	12-24V
max working pressure	14Mpa	14Mpa	14Mpa	14Mpa	14Mpa	14Mpa
loading capacity	350KG	350KG	350KG	350KG	350KG	350KG

We also have different type of platform
model DN-880S-1150 has split platform;
model DN-880-1150 has solid platform;
DN-880s wheelchair lift, with split platform;
This wheelchair lift gives new meaning to the term accessibility. The fully automatic split platform folds up and out of the way at the push of a button, leaving the doorway clear. The steel frame and powerful hydraulic pump ensure a fast, secure means of entry and exit. You will find the convenient and easy to operate.
DN-880 wheelchair lift,with solid platform
The outomatic wheelchair lift offers you dependable accessibility while its trim, compact design maximizes valuable interior space. The lift aslo features a strong durable steel frame built to give you years of dependable service.
There are so many advantages of this product, such as automatic inboard and outboard rollstops, quietand smooth operation, welded all-steel frameare, built-in manual backup system, permanent no-lube bearings at all major pivot points, easy to maintain and so on.
