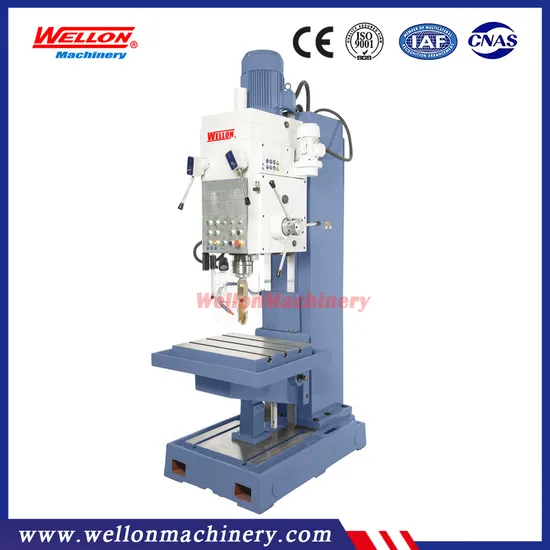

Vertical Drilling Machine Square Column Drilling Machine Z5180B

Product Description

Product Description
Detailed Photos
Product Parameters

Features:
Quick and easy feed and speed control thanks to comfortable control lever.
Powerful motor of high torque as well as high pressure force and feed.
Threading at automatic rotations change and depth adaptation.
Automatic spindle feed in standard version, threading option and lighting.
Quick feed and return motor.
Trouble-free operation and long operation warranted by use of high class parts and components.
Column and base strong and solid structure.
Technical parameter:

MODEL	Z5180B
The largest hole diameter (mm)	80
The largest feed resistance (N)	30000
The maximum allowable torque spindle (Nm )	800
Main electrical Power (KW)	7.5
Throat distance (mm)	375
Spindle taper	MT6
Spindle stroke (mm)	250
Headstock travel (manual) (mm)	250
Spindle speed range (steps) (r / min)	40-570 (9)
feed rate (steps) (mm / rev)	0.1 - 0.78 (6)
the largest table travel (mm)	300
Table working area (mm)	650X550
Max distance from spindle to worktable (mm)	800 (1250 optional)
Machine NW / GW (kg)	2550/2750
Packing Size (length X width X high) (cm)	275X101X179

Standard accessories:
Coolant system
Work lamp
Drill chuck
Reduction sleeve
Wrenches
Optional accessories:
Machine vise
Spindle guard
Depth indicator
Company information
Packaging & Shipping
FAQ

1: What's your main products of your company?
A : We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining
Center,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on.
2:What kind of controlsdo you use on machines?
A :Siemens,GSK ,Fanuc etc. You can choose according to your requirements .
3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me the model or parameter you are interested in, we can provide you with the best price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5 : Do we receive any updates while machine is in the manufacturing process?
A : Of course. The progress of the machine will be updated regularly and sent to you.
