Imported Diamond Drawing Dies Rbd/Intermediate/fine Wire Drawing Machine Full Set Copper Round Wire Drawing Dies

Product Description

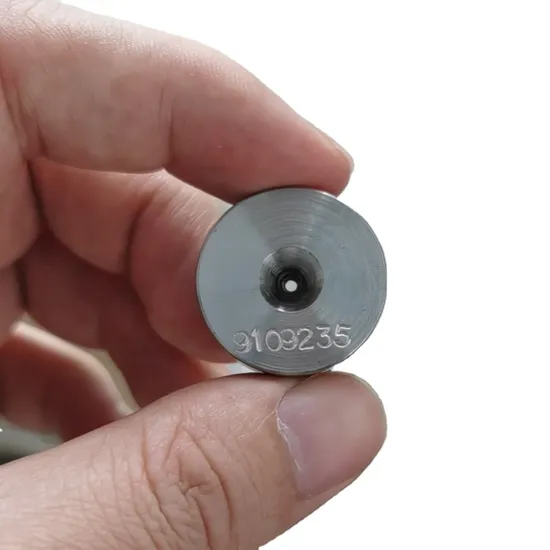

PCD Wire Drawing Dies
Product Parameters

Type	Die Size(mm)	Standard Tolerance(um)	Standard Class
			A	B
PCD Dies	D6	0.1-0.15	25	7
	D12	0.1-0.8	30	15
	D15	0.5-1.5	30	15
	D18	1-2.3	30	15
	D21	1.6-3.4	30	15
	D24	2.6-4.6	42	20

Product Description


PCD schematic diagram

Typical Application
1. Copper wire
2. Aluminum wire
3. Thungsten Stainless steel wire
4. Galvanized steel wire
The free arrangement of diamond particles ensures that the polycrystalline diamond abrasives still have good roundness after use and have a longer service life than nature diamonds and synthetic single crystal diamond molds.
Mold category
We offer RBD/ medium/ fine drawing machines and dies.
We provide our customers with a complete set of matching equipment Replacement, blending mold.
Characteristics
1. Suitable for dry drawing and wet drawing
2. Expectable wire surface quality
3. The free arrangement of the diamond crystals allows the wire to ensure a perfect roundness even in the case of severe mold wear
4. The size of the embryo is guatanteed to achieve the maximum reaming size expected
