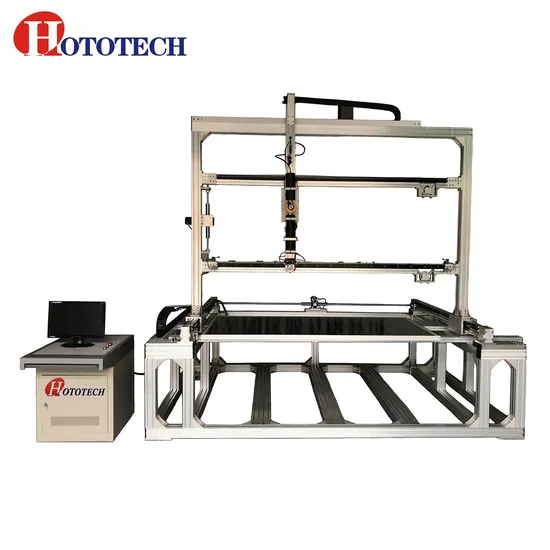

IEC61215 Solar Panel Hail Impigement Testing Machine Anti-Hail Impact Testing Machine
| US$2,585.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
HTPV-09
Control
Computer Control
Weight
100-500Kg
Power Source
AC220V
Pressure Control Accrate
5%
Air Pressure
6-8 Bar
The Barrel Length
940mm
Impact Area
2000*1000mm
X Shaft Move Distance
2100m
Y Shaft Move Distance
1000mm
Speed Catch Range
0-50 mm
Ice Ball Diameter
25mmm, 35mm,45mm
Standard
IEC61215-2:2016
Application
Solar Panel
Transport Package
Wooden Case
Trademark
HOTOTECH
Origin
Dongguan/China
HS Code
9013809000
Production Capacity
500 Set a Month
Product Description
HTPV-09
Name:Hail Impact Testing Machine
Standard:
According to IEC61215,IEC61646,UL1703 standard requirement
Purpose:
To verify that the module is capable of withstanding the impact of hailstones
| launch device | Moving locating device | ||
| Power source | air compressor | X shaft move distance | approx 2100mm |
| Air pressure | 6-8bar | Y shaft move distance | approx 1000mm |
| Ice ball single filled | manual | Locating accurate | ≤1mm |
| The barrel length | approx 940mm | Impact area | 2000×1000mm |
| The barrel | can change | Guide ways | high quality import guide rail |
| Locating control ways | PC control and automatic locating | ||
| Driving ways | import servo motor + synchronous wheel | ||
| Ice ball speed | Test velocity system | ||
| diameter 25 mm | 23.0m/s ±5% | Test speed sensor | high accurate infrared test speed sensor |
| diameter 25 mm | 27.2m/s ±5% | accurate | ±5% |
| accurate | 30.7m/s ±5% | Speed catch range | 0~50 m/s |
| ice mould | |||
| material | does not expand easily | ||
| Inner cavity diameter | 25mm<1%;35mm<1%;45mm<1% | ||
| ice ball diameter | 25mm<5%;35mm<5%;45mm<5% | ||
| ice ball weight | 7.53g<5%;20.7g<5%;43.9g<5% | ||
| Refrigerator | -10ºC | ||
