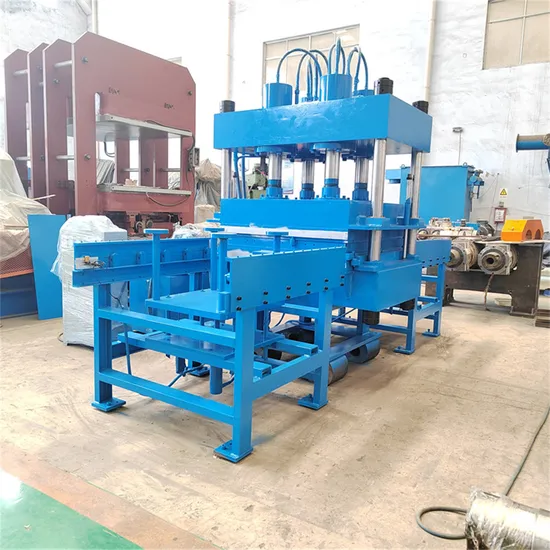

200t Full Automatic Rubber Tile Floor Press with Hydraulic Pull Push Device

Product Description

Product Parameters This machine can be used to make rubber tile,floor,paving slabs,cow mat,horse mat,speed reducer hump,GYM tile etc,.
With Different mould.this machine also can produce O ring, sealing parts, oil seal, auto parts, rubber crash pad, rubber air spring, key board, medical rubber parts, rubber bottle stopper, silicone wrist band, water-stop tape, bridge support/bridge bearings, rubber cable, electronics insulators etc.

XLB-D1100X1100X2/160T/200T Rubber Tile Press Machine with 160Ton/200Ton moulding pressure 1.Mould closing force:160Ton(1.6MN) / 200Ton(2.0MN) 2.Production capacity:one time can produce 2 pieces 1000*1000mm size tile or 8 pieces 500*500mm size tile; 3.Machine Structure:4 Column; 4.Platen unit area Maximum pressure: 12.3kg/cm²(1.2Mpa)-160Ton 15.3kg/cm²(1.5Mpa)-200Ton 5.Piston:4sets φ180mm piston cylinder(not plunger cylinder)-160Ton Φ200mm piston cylinder(not plunger cylinder)-200Ton ; 6.Piston Stroke:300mm; 7.Mould in/out:Auto electric Front-Rear Mould Pull-Push; 8.Electric Control System:Auto PLC control system; 9.Working layer:1/2 working layer; 10.Hot plate spacing:150mm; 11.Hot Plate Size:L1100*W1100mm*T60mm; 12.Mould open/close velocity:≥20mm/s; 13.Heating Way:Electric heating(Digital display and adjust); 14.Hydraulic station motor power:5.5KW

Product Description
Features:
1. The press has the functions of automatic rise, automatic pressurization, automatic exhaust, automatic pressure compensation, automatic constant temperature, automatic glue injection, vulcanization timing, time alarm, automatic descent, automatic mold opening, etc.;
2. Description of the main components of the host
2.1. Column: The material is made of medium carbon quenching and tempering and processed, and the surface is plated with hard chromium axis. The surface hardness is HRC55-58;
2.2. Oil cylinder: The material of the oil cylinder is high-quality QT500-7, and the quantity is 1 piece.
2.3. Machine body: AUTO CAD-assisted mechanical design is used. The ductile iron QT-500 is age-passivated and has high strength and toughness. The tensile strength is 50kgf/mm.
2.4. Plunger: The plunger is made of LG-P chilled hard alloy material. This material has high surface hardness and is not easy to wear. The depth of the chilled hard layer is 8-15mm and the hardness is HRC60-70 degrees, which improves the overall service life of the plunger.
2.5. Mold entry and exit track: The sliding surface is made of S50# steel, which is heat-treated to HRC 55-58, and is equipped with bearings to ensure stable sliding in and out of the mold.
Long wear life.
The slide rail and the hot plate are separated to prevent the temperature of the hot plate from dissipating and saving electricity.
2.6. Seals: The cylinder seals use YX-type polyurethane oil seals, which are oil-resistant, aging-resistant and wear-resistant.
2.7. Heat insulation board: The heat insulation board is made of high-quality calcium silicate board, with a pressure resistance of 3.5Mpa and a thermal insulation coefficient of 0.031.
2.8. Hydraulic system: The main hydraulic components are from Taiwan's Qiyang brand, which are easy to purchase and replace, with reasonable layout and easy maintenance and repair.
2.9. Electrical system: The main PLC electrical components of this machine adopt the internationally renowned brand Omron from Japan. The electrical device has small size, compact structure, fatigue resistance, and is adaptable to continuous high-intensity work.
