Hzs60 Belt Conveyor Concrete Batch Plant

Product Description

Production Description

Stationary concrete batching plant:
Stationary concrete batching plant is widely used for large and medium-sized construction work and infrastructure projects, such as commercial and residential properties, road construction, commercial concrete supply, etc. It is an ideal choice for the production of high-quality concrete with a large amount of demand.
According to the aggregate feeding method, the stationary concrete batching plant can be categorized into two types: Skip hoist type and belt conveyor type. The capacity of the Skip hoist type concrete batching plant can be 25/35/50/75 m3/h, and the capacity of belt conveyor type concrete batching plant can be 60/90/120/180/240 m3/h.

Skip hoist type concrete batching plant
Model	HZS25	HZS35	HZS50	HZS75
Production capacity (m3/h)	25	35	50	75
Concrete mixer	JS500	JS750	JS1000	JS1500
Aggregate feeding mode	Skip Hoist	Skip Hoist	Skip Hoist	Skip Hoist
Aggregate size (mm)	80/60	80/60	80/60	80/60
Discharging height(m)	3.8	3.8	4.1	4.1
Aggregate weighing accuracy (%)	±2	±2	±2	±2
Cement weighing accuracy (%)	±1	±1	±1	±1
Fly ash weighing accuracy (%)	±1	±1	±1	±1
Water weighing accuracy (%)	±1	±1	±1	±1
Additive weighing accuracy (%)	±1	±1	±1	±1
Total weight (T)	10	13.5	18.5	25
Total power (T)	65	75	100	110
Control system	Panel	Computer	Computer	Computer

Skip hoist type concrete batching plant Features compared to belt type batching plant:
1.Cost-saving;
2.Easy to install;
3.Easy to move to other job sites;
4.Labor-saving.

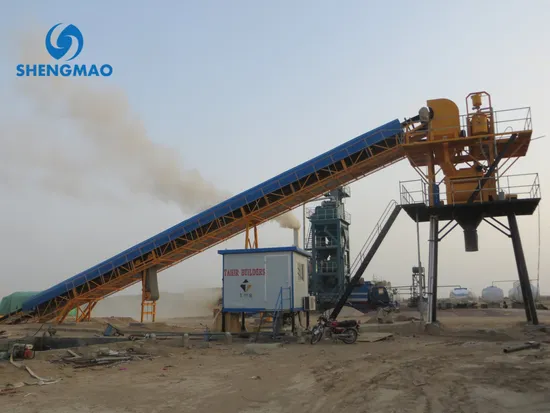

Belt conveyor type concrete batching plant
Model	HZS60	HZS90	HZS120	HZS180
Production capacity (m3/h)	60	90	120	180
Concrete mixer	JS1000	JS71500	JS2000	JS3000
Aggregate feeding mode	Belt conveyor	Belt conveyor	Belt conveyor	Belt conveyor
Aggregate size (mm)	80/60	80/60	80/60	80/60
Discharging height(m)	4.1	4.1	4.1	4.1
Aggregate weighing accuracy (%)	±2	±2	±2	±2
Cement weighing accuracy (%)	±1	±1	±1	±1
Fly ash weighing accuracy (%)	±1	±1	±1	±1
Water weighing accuracy (%)	±1	±1	±1	±1
Additive weighing accuracy (%)	±1	±1	±1	±1
Total weight(T)	28	40	65	88
Total power(T)	110	156	200	260
Control system	Computer	Computer	Computer	Computer

Belt conveyor type concrete batching plant Features compared to skip hoist type batching plant:
1. higher production efficiency;
2. more environment-friendly;
3. higher quality of concrete.
Detailed Images
Packing&Shipping
After-sales service:
1. Provide 7 * 24 hours online after-sales service every week
2. Provide relevant certificates, customs clearance documents, operation and maintenance instructions, installation videos, etc.
3. Dispatch after-sales engineers to install and commission equipment abroad, and provide free training for operators and maintenance personnel for operation and maintenance
4. Establish a complete customer profile, regular inspections, regular visits, free maintenance services, and technical improvements
5. Equipped with a spare parts warehouse, you can guarantee the fast supply of all accessories. During the warranty period, the parts required for equipment damage will be borne by the company, the customer does not have to pay any fees
