512 Dpi Pixels Biometrics Access Control Fingerprint Sensor with USB
| US$42.00-52.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
URU4000B Fingerprint Sensor
Software System
WIN2000
Communication Mode
TCP/IP
Connection
No
Pixel Resolution
512 Dpi (Average X,Y Over The Field)
8-Bit Grayscale
256 Levels of Gray
Supply Voltage
5.0V±5% Supplied by USB
Supply Current
Scanning 190 Ma (Typical)
Supply Curren
Yesidle Mode 140 Ma (Typical)
Dimension
79X49X19mm
Gross Weight
0.65kg
ESD Susceptibility
>15 Kv,Mounted in Case
Scan Data
8-Bit Grayscale
Transport Package
Neutral Packing
Specification
CE, ROHS, SGS
Trademark
Nordson
Origin
Guangdong China
HS Code
123456
Production Capacity
20000PCS/Month
Product Description

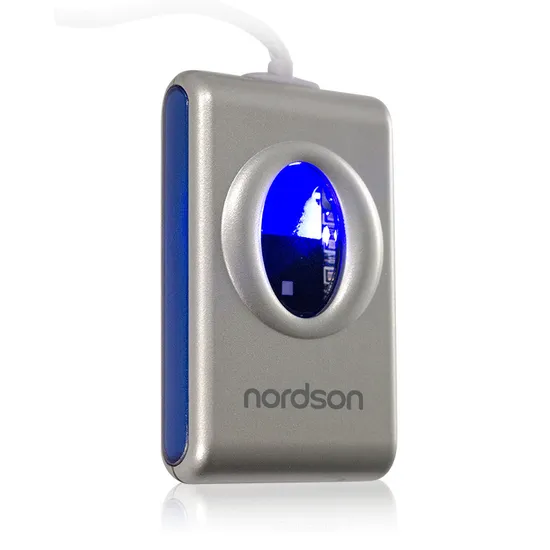

512 DPI pixels Biometrics Access Control Fingerprint Sensor with USBOverview:
URU4000B is a stable and excellent fingerprint reader. The device can capture fingerprint image and upload to the PC by USB interface. It supports Windows 2000/XP/2003/Vista/7/8(32/64bit) and Linux OS. We provide developer with SDK. The developer can integrate the hardware into their own system. This product is widely used in social insurance, public security, time attendance, fingerprint encryption, embedded system and other fields of application.
Function:
1.High-performance, maintenance-free optical fingerprint sensor.
2.Readily accessible for any finger.
3.2 High quality industrial-class ABS plastic material with scratchproof texture surface treatment.
4.Removable weighted stand.
5.High speed USB interface.
6.LED indicates the status of the device.
7.Driver CD included.
8.Available SDK for secondary development.
Specification:
| Model | URU4000B USB Fingerprint Reader |
| Fingerprint sensor | optical Sensor |
| Resolution | 520DPI |
| Image size | 15.4mm*18.0mm |
| Interface | USB1.1, compatible with USB1.0,1.1,2.0 full speed |
| Operating System | Windows 2000/XP/2003/Vista/7/8(32/64bit) |
| Application | Security for PCs and networks, Time attendance, E-commerce, Banking and financial system security, Healthy & Medical information system, Other security fields needed for user authentication |
| Color | Black |
| Operating Temperature | 0° - 55°C/32 - 131°F |
| Operating Humidity | 20% - 80% |
| Dimension | 79x49x19mm |
| Gross Weight | 0.25kg |
Details of product pictures:
