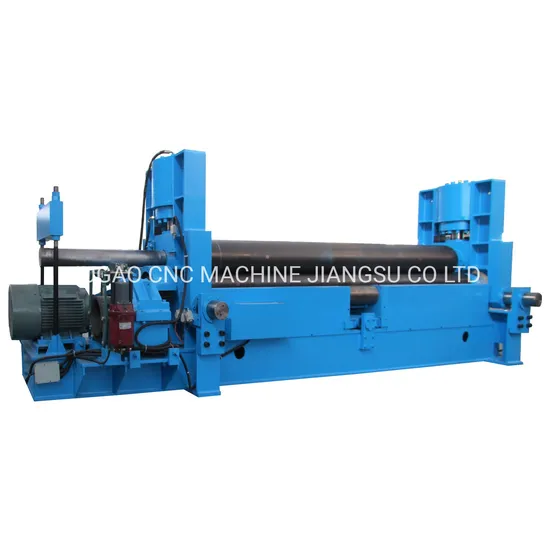

3 Roller Iron Plate Bend Rolling Machine Sheet Metal Plate Bending Machine

Product Description

3 Roller Iron Plate Bend Rolling Machine Sheet Metal Plate Bending Machine cnc plate rolling machine roll bending machine bending roll machine sheet rolling machine cnc plate bending machinery
cnc steel rolling machine plate roll plate bend rolling machinery plate bending roll machine hydraulic rolling machine
# This model device adopts the Japanese technology. It can roll plate to cylinder, cone, U-shape and so on. The up roller of this device can do up and down, right and left move. And all the move actions can
# show by figure.It with the pre-bending capacity.
# steel plate rolling machine vertical displacement of upper roller has a digital display, eye-catching and intuitive. This products Shang roll universal type volume Board Shang roll can upper and lower mobile, also can level mobile, Shang roll upper and lower mobile used to change plate bent curvature, before and after mobile used to change Shang roll axis line vertical face said location, achieved plate of end Department pre bent and meet various bent by needed of process requirements, so no plus pressure machine, additional equipment, can once Shang material, not needed turn on can completed plate ends Department of pre bent and the forming bent function, and for forming artifacts of correction.
# high accurate end pre-bending: free set of straight edge length, roll pressure directly on pre-bent, able to complete accurate end pre-bending.
# superior product precision: roll on a drum-shaped, roll down the lower idler tie in regulation, consecutive bends, from thin to thick plates ideal voucher system within this broad range of products.
Steel plate rolling machine description:
# steel plate rolling machine on this device for roller omnipotent steel plate rolling machine used for bending a certain thickness of the metal sheet at room temperature into a tube-shaped, curved or there is a taper of parts. The works by Rotary bending deformation. Upper roller can be moved up and down, and also move horizontally, so it does not need additional press and additional equipment to feed at a time, without having to turn to complete end pre-bending and bending of the plate features, as well as for correction of the workpiece. Using assistive devices can make the ends of sheets, and fewer remaining straight edge. Is oil, chemical, cement, shipbuilding, boilers, air, water, power transmission towers and other necessary equipment for the machinery and equipment manufacturing industry.
# The structure of this machine has four rollers, the upper roller is main drive, through the hydraulic motor provides the power to provide torque for coiled sheet; lower roller for vertical movement by hydraulic cylinder, to the clamping was coiled sheet, and the realization of non symmetric bending roll system.
# This machine is three rollers symmetries rolling mild steel or mild alloy steel under normal temperature condition (such as Q235, Q345, 16MnR, etc.) into cylinders.
# The machine is suitable for sheet metal bending, can be rolled round and arc and within a certain range of conical workpiece, and sheet metal bending function, the remaining straight edge, high work efficiency, and can be used crude the metal plate to be leveling.
# The upper roller is arranged the side roller device, the side roller is parallel to the roller axis for arc lifting motion, the side roller arc movement by the hydraulic cylinder.
# Adopt the unique beforehand decompression technology, effectively avoid hydraulic impact, improve the lifetime of pipeline and the seal.
# Hydraulic element selects the import high quality products, guarantee the stability of the hydraulic system.
# All hydraulic system input, outlet are set with corresponding control point, easy for maintenance and fault inspection. Oil pump adopt underneath type, positive pressure oil absorption. At the same time the filter and liquid ometer are equipped with hair-device, it can automatic alarm the disturbance display. The hydraulic station is set independent outside of machine, easy for maintenance, also it's away from the heat source.
# Production system strictly obey the international, line standard. The radius of bent tube is reasonable, and not less than 90 °, smooth transition, effectively avoid the impact and vibration
# System design full consideration of high efficiency and energy saving, reducing power waste, reduce heat source.
# Equipped with high precision oil absorption and oil return filter, in order to ensure the cleanliness of the oil system.
# Provide rolling machine hydraulic system common fault phenomenon and elimination method.
# In order to ensure the manufacturing quality of hydraulic system, the system produce according to the hydraulic professional manufacturers and National GB3766-83 "hydraulic system general technical conditions"
# The tank is cleaned by the shot blasting, pickling and surface cleaning, the walls is coated oil varnish to make sure the cleaning of tank. There is the air filter in the fue
Product parameters

Model	Pressure	Max bending thickness		Max rolling	Upper roller	Down roller	Rollers	Motor
	(Ton)	(mm)		length	diameter	diameter	distance	kw
		Pre-bending	Max bending	mm	mm	mm	mm	Driving	Hydraulic	Moving
		mm	mm
6x1500	25	4.8	6	1500	175	125	160	3	2.2	0.75
6x2000	25	4.8	6	2000	195	125	160	3	2.2	0.75
6x2500	25	4.8	6	2500	205	135	180	3	2.2	0.75
6x3000	37	4.8	6	3000	215	135	180	4	2.2	0.75
8x1500	25	6.4	8	1500	175	125	160	3	2.2	0.75
8x2000	25	6.4	8	2000	195	125	160	3	2.2	0.75
8x2500	37	6.4	8	2500	205	135	180	4	2.2	0.75
8x3000	45	6.4	8	3000	215	135	180	4	2.2	0.75
10x1500	37	8	10	1500	205	135	180	4	2.2	0.75
10x2000	45	8	10	2000	215	135	180	4	2.2	0.75
10x2500	45	8	10	2500	235	135	180	4	2.2	0.75
10x3000	65	8	10	3000	245	135	180	5.5	4	0.75
10x4000	75	8	10	4000	255	150	245	7.5	4	1.1
12x2000	65	9.6	12	2000	250	145	200	5.5	4	0.75
12x2500	65	9.6	12	2500	255	150	245	5.5	4	0.75
12x3000	75	9.6	12	3000	270	150	245	7.5	4	1.1
12x6000	100	9.6	12	6000	290	150	245	15	5.5	1.5
16x2000	75	12.8	16	2000	255	150	245	7.5	4	1.1
16x2500	100	12.8	16	2500	270	150	245	15	5.5	1.5
