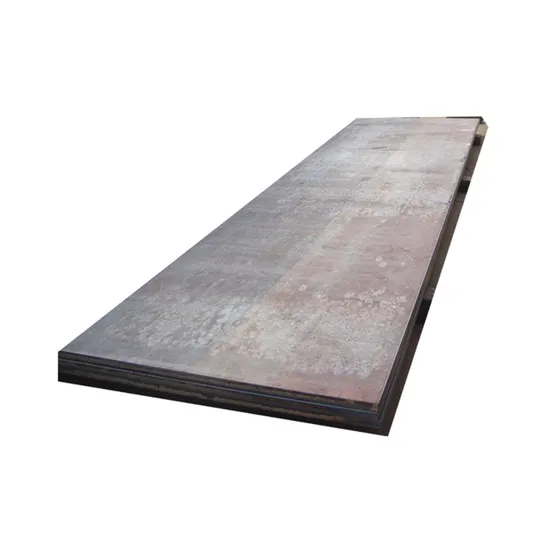

Marine Metal Sheet ABS Lr Grade a B D E Ah32 Ah36 Eh32 Eh36 Dh32 Dh36 Ah40 Dh40 Eh40 Hot Rolled Normalizing Vessel Building Material Shipbuilding Steel Plate

Product Description

"15 years of steel production experience! Because professional, trustworthy!"
//////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
Qingdao Hengcheng Steel Co. Ltd. is a professional galvanized steel coil manufacturer in China for more than 15 years with 12 years exported experience, which is one of the best galvanized steel coil manufacturer in China.
Our main products cover carbon steel plate, alloy steel plate, wearing steel plate, weathering steel plate, cladding steel plate, checkered steel plate, stainless steel products; GI/GL/PPG/PPGL steel coil, GI/GL/PPG/PPGL steel roofing sheet, tinplate, aluminium products, etc.
For galvanized steel coil, we have more than 10 production lines. We offer the service of cutting and punching.
What's more, we can print the logo or size on per sheet.
////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
Specifications:

Standard	CCS,ABS,GL,BV,DNV,NK,LR,KR,RINA
Grade	A/B/D/E,A32/D32/E32/F32,A36/D36/E36/F36,A40/D40/E40/F40,A131A/B/D/E/ AH32/DH32/EH32/AH36/DH36/EH36/AH40/DH40/EH40,NVA420/D420/E420, NVA460/D460/E460,NVA500/D500/E500,NVA550/D550/E550….
Thickness	2-300mm (2-100mm usually used)
Width	1000-3000mm (1000-2200mm usually used)
Length	1000-12000mm or as your request
Surface	Clean, finishing,blasting and painting according to customer requirement
Process	Hot-rolled, Controlled rolling, Normalizing, Annealing, Tempering, Quenching, N+T, Q+T, and other delivery states are available as required
Certificate	API,ISO,SGS,BV,CE etc
Quality	MTC will be provided with goods, third part inspection is acceptable, for example BV, SGS.
Package	Standard export seaworthy package,suit for all kinds of transport,or as required.
Container Size	20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High)
	40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High)
Trade term	Ex-Work,FOB,CNF,CFR,CIF,etc
Application	Widely used in a variety of architectural and engineering structures,such as
	1.) metal constructions such as buildings,bridges,ships;
	2.) transmission tower, reaction tower;
	3.) lifting transportation machinery;
	4.) industrial furnace;boilers
	5.) container frame, warehouse goods shelves, etc

Shipbuilding Steel Plate Chemical Composition and Mechanical Properties
Grade	C	Si	Mn	P	S	Als
A	≤0.21	≤0.50	≥2.5C	≤0.035	≤0.035
B	≤0.21	≤0.35	0.8~1.2	≤0.035	≤0.035
D	≤0.21	≤0.35	0.6~1.2	≤0.035	≤0.035	≥0.015
E	≤0.18	≤0.35	0.7~1.2	≤0.035	≤0.035	≥0.015
AH32	≤0.18	≤0.50	0.9~1.6	≤0.035	≤0.035	≥0.015
DH32	≤0.18	≤0.50	0.9~1.6	≤0.035	≤0.035	≥0.015
EH32	≤0.18	≤0.50	0.9~1.6	≤0.035	≤0.035	≥0.015
AH36	≤0.18	≤0.50	0.9~1.6	≤0.035	≤0.035	≥0.015
DH36	≤0.18	≤0.50	0.9~1.6	≤0.035	≤0.035	≥0.015
EH36	≤0.18	≤0.50	0.9~1.6	≤0.035	≤0.035	≥0.015
AH40	≤0.18	≤0.50	0.9~1.6	≤0.035	≤0.035	≥0.015
DH40	≤0.18	≤0.50	0.9~1.6	≤0.035	≤0.035	≥0.015
EH40	≤0.18	≤0.50	0.9~1.6	≤0.035	≤0.035	≥0.015

Grade	Yield strength MPA	Tensile strength MPA	Elongation %	Test temperature °C	V ballistic work
					Thickness mm
					≤50		>50~70		>70~100
					L	T	L	T	L	T
A	≥235	400-520	≥22	20			34	24	41	27
B	≥235	400-520	≥22	0	27	20	34	24	41	27
D	≥235	400-520	≥22	-20	27	20	34	24	41	27
E	≥235	400-520	≥22	-40	27	20	34	24	41	27
AH32	≥315	440-570	≥22	0	31	22	38	26	46	31
DH32	≥315	440-570	≥22	-20	31	22	38	26	46	31
EH32	≥315	440-570	≥22	-40	31	22	38	26	46	31
AH36	≥355	490-630	≥21	0	34	24	41	27	50	34
DH36	≥355	490-630	≥21	-20	34	24	41	27	50	34
EH36	≥355	490-630	≥21	-40	34	24	41	27	50	34
AH40	≥390	510-660	≥20	0	41	27
DH40	≥390	510-660	≥20	-20	41	27
EH40	≥390	510-660	≥20	-40	41	27

Product Description
Production Process
Packaging & Shipping
Application
Certifications
Our Factory
Our Customer
FAQ Our Service
Pre-Sale Service:Sample:Samples can be offered with Samples` charges and courier fee by you . But Samples` charges will be return to you after you place an order .Production Line:We having own three factories with more than 10 production lines . Many styles for you choice.OEM/ODM and logo stamp:OEM/ODM order are accepted . Any logo printing or design are free of charges.Transport:We have own international Logistics company . Is Class-One agent of MSC/MSK/APL/CMA/COSCO/OOCL/MOL . Can supple the best transport plan and charges for you .Also ensure delivery the goods within short time .During Sale Service:Quality Control: IQC IPQC FQCMaterial Inspection,Drawing and Samples` Inspection,Correction of Machine and Equipment,Trial production,Finished Production Testing,The Third inspect departmentTransportation safety guarantee:Our logistics having good-tracked system. Will inform you the goods transport status message at any time , until you pick up the goods.After-Sale Service:We are glad to supply the better suggestion of the price and products . Including the goods` stockpile and application .Will supply the latest market price information for you at any time.Welcome to visit our company . Insure you will have a good time in China.
