Efficient CNC Router for Woodworking with DSP Controller Integration CNC Cutting Machine

Product Description

Product Parameters

Woking area	600*900*200mm or 600*900*500mm
Table style	Aluminum T-slot table with PVC
Table surface	Welded steel tube,cast iron vertical shafts and steel gantry
Spindle	3.0KW water cooling spindle
Spindle rotating speed	0-24000rpm
Collect size	ER20
Guide rail	Taiwan Hiwin linear square guide rail
Driving method	X,Y axis by helicia gear rack,Z axis by TBI ball screw
Motors and drivers	Stepper motor 450B and leadshine drivers MA860H
Control system	NCstudio control system
Invert	Fuling invert
Max.working speed	12m/min
Instruction formate	G code*.u00*.mmg*.plt
Woking voltage	AC220V/AC380V,single phase/3 phsae,50-60Hz
Standard software	Artcam 2010
Compatible software	Type3
Control Cabinet	Independent
Other	Tool sensor;Oiling system;Water pump;Tool Box,English manuals etc.
Optional parts	1)4.5kw water cooling spindle; 2)Rotary axis(80mm//100mm/150mm) diameter; 3)Mach3/DSP control system; 4)Dust collector; 5)Vacuum table with 5.5kw vacuum pump.

Our state-of-the-art CNC Router for Woodworking with DSP Controller Integration can be precisely tailored to meet your specific needs and requirements, ensuring unparalleled performance and satisfaction. Product Description
The Wayne CNC Router machine is your ultimate solution for intelligent cutting and milling. Engineered to tackle a variety of complex processing needs, this versatile machine excels in routing, drilling, cutting, sawing, slotting, and more. Equipped with a carousel tool magazine that can be mounted either beside the spindle or on the fuselage, this CNC router seamlessly switches between tools, enabling it to perform multiple intricate operations in a single run. It's adept at cutting, engraving, drilling, routing, grooving, and pocketing across a range of materials including wood, MDF, acrylic, PVC, plastic, foam, and beyond.
The Wayne CNC Router machine stands as the premier choice for enterprises with substantial production demands. Unlike traditional manual tool change methods, this advanced wood CNC machine features an independent tool magazine loaded with various tool bits. Controlled by a sophisticated computer program, it automatically selects and switches tools without halting the workflow, ensuring maximum efficiency during processing.
1. Wood Processing: Expertly handles the creation of various furniture pieces including doors, windows, cabinets, screens, and more. 2. Advertisement: Perfect for engraving and cutting a variety of labels and number plates.
3. Art Crafts: Capable of engraving characters in any language and intricate graphics on gifts and souvenirs.
Main Feature
1. Z-axis feeding height: 200mm, providing ample vertical workspace.
2. Sturdy square tube welded steel frame structure with an 8mm thickness for enhanced durability.
3. Flexible table options: Choose between an Aluminum T-slot table or Vacuum table paired with a 5.5kw Vacuum pump.
4. Precision drive system: X-axis rack and pinion drive, Y-axis 2-way rack and pinion drive, and Z-axis 2510 Ball screw for accurate movements.
5. High-quality linear motion: X, Y, Z axes are equipped with Taiwan-made PMI square rails.
6. Powerful motor options: Choose from a 450B stepper motor and MA860H Leadshine driver or opt for a superior servo motor and driver.
7. Efficient cooling and control: Features a 3.0KW water cooling spindle and a 3.7kw Fuling inverter, with other spindle options available.
8. Advanced control systems: Standard Nc-Studio-5.4.49 control system, with optional DSP or Mach 3 systems.
Options
1) 4.5kw water cooling spindle for enhanced performance.
2) Rotary axis options with diameters of 80mm, 100mm, or 150mm for versatile applications.
3) Choice of control systems: Mach3 or DSP.
4) Dust collector to maintain a clean working environment.
5) Vacuum table equipped with a 5.5kw vacuum pump for superior material hold-down.

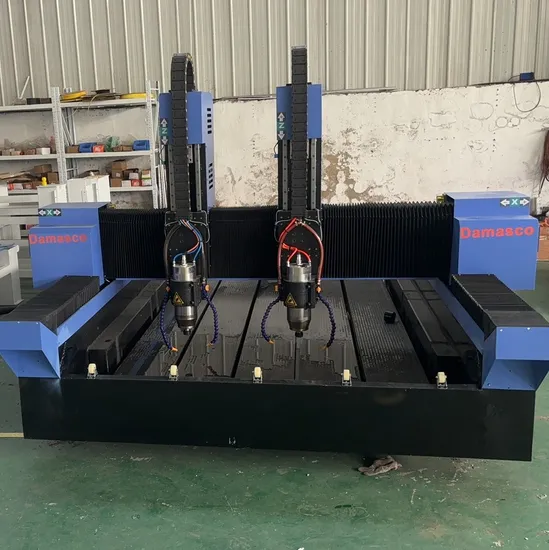

Detailed Photos
Packaging & Shipping
Company Profile
Liaocheng Wayne New Materials Co., Ltd. is a renowned leader in the CNC Router and Laser Engraving & Cutting machine industry, strategically located in Liaocheng City, Shandong. Our prestigious array of products includes the Large-scale ATC Woodworking Router Machine, 5-axis CNC Router Machine, CNC Advertising Router Machine, CNC Marble Engraving Machine, CNC Plasma Cutting Machine, CNC Metal Mold Machine, CNC Lathe Machine, Swiss Type Lathe Machine, Fiber Laser Cutting Machine, CO2 Laser Cutting Engraving Machine, Laser Marking Machine, Laser Welding Machine, and many more. Leveraging cutting-edge technology and superior quality, we are committed to establishing 'Wayne' as a global brand. Our machines are exported to over 100 countries and regions, including the United States, Germany, Indonesia, Canada, Australia, Russia, and Southeast Asia.
Our primary goal is to provide exceptional service to our customers. We specialize in both stock and custom configurations. Our machine components are sourced from world-class suppliers and innovators in machine control, ensuring top-notch performance across various industries. Our machines are utilized in diverse fields such as woodworking, metal and stone work, aluminum fabrication, boat building, shop fitting, and mold making, among others. Our dedicated after-sales service department, experienced sales team, and rigorous quality assurance procedures guarantee that you can purchase with confidence. We warmly welcome customers and potential business partners from around the globe to collaborate for mutual benefits. 'Best Service, Best Quality, Best Price' - Wayne is your ultimate choice. We eagerly anticipate working with you to create greater value. Feel free to reach out; we are here and waiting for you.
FAQ
1. Is it all right to make customer's own brand name?
A: yes. we are available with OEM
2. Are you a manufactuer or trading company?
A:We are the manufacturer with Laser machine and CNC lathe machine
3. Can you do the design for us?
A: yes. if you want a different control system design or higher column , we are available.
4 . What is your terms of delivery?
A: FOB Qingdao.
5. What's your payment term?
A: T/T OR L/C at sight.
