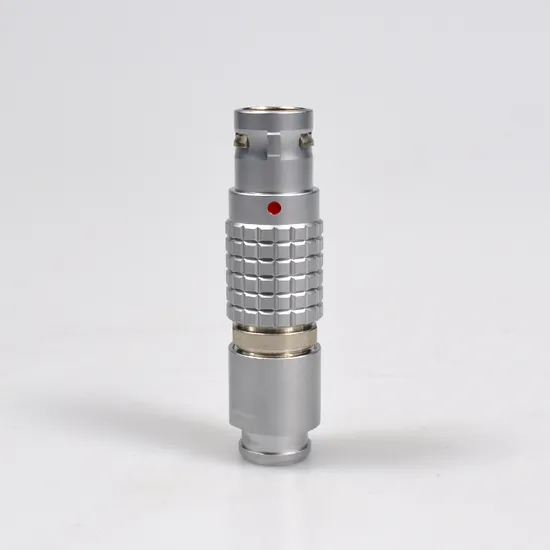

Mechanical Connector Push Pull Connector 4 Pin Plug for Medical Industry

Product Description

How to choice right connectors
Size: 00B(M7), 0B(M9), 1B(M12), 2B(M15), 3B(M18) avaliable
Pin number:
00B: 2, 3, 4, 5pin
0B: 2, 3, 4, 5, 6, 7, 9pin
1B: 2, 3, 4, 5, 6, 7, 8, 10, 12, 14, 16pin
2B: 2, 3, 4, 5, 6, 7, 8, 10, 12, 14, 16, 18, 19, 26pin
3B: 2, 3, 4, 5, 6, 7, 8, 10, 12, 14, 16, 18, 20, 22, 24, 26, 30pin
Max.cable diameter:
00B: 5.0mm
0B: 7.0mm
1B: 9.0mm
2B: 12.0mm
3B: 15.0mm
IP rating: IP50
Color options for bend relief: Black, grey, red, green ect Product Description
Packaging & Shipping
Product Parameters Technical Characteristics

CHARACTERISTIC	PARAMETER	STANDARD
Insertion times	>5000 times	IEC60512-5 test 9a
Humidity	Up to 95% at 60°ºC
Temperature range	-60°C, +220°C
Anti-vibration performance	10-2000Hz,15g	IEC60512-4 test 6d
Impact resistance	100g,6ms	IEC60512-4 test 6d
Salt spray corrosion test	>144 hours	IEC60512-6 test 11f
Degree of protection (when mated)	IP50	IEC60529
Environmental experiment	55/175/21	1EC60068-1

Electrical properties

CHARACTERISTIC		PARAMETER	STANDARD
Shielding effect	At 10MHz	>75dB	IEC60169-1-3
	At 1MHz	>40dB	IEC60169-1-3

Design drawings
Company Profile
Certifications Our Advantages FAQ About price Q1: Will you please let us have an idea of your price? A1: In general, our prices are given on a EXW basis. Q2: Do you give any discount ? A2: I'll surely try my best to help you get those by the best price and good service at the same time, if your order is big enough. About delivery Q3: What about our request for the early delivery of the goods? A3: | think we can meet your requirement. Q4: How long and how to get sample from us? A4: 1) If you need some sample, we can make as per your request. You should pay for the trans- portation freight of samples and sample cost. The sample cost can be refundable if order is confirmed.
2) Lead time for making sample: about 2days 3) The transportation freight of samples: the freight depends on the weight and packing size and your area About company Q5: How about your quality control? A5: All the products will be 100% double check before the shipment. Q6: How do you make our business long-term and good relationship? A6: 1)We keep good quality and competitive price to ensure our customers beneft. 2) We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from. About payment Q8: What payment methods your company accept? A8: We accept most of the payment methods, but mainly accept TT,LC, Paypal.
