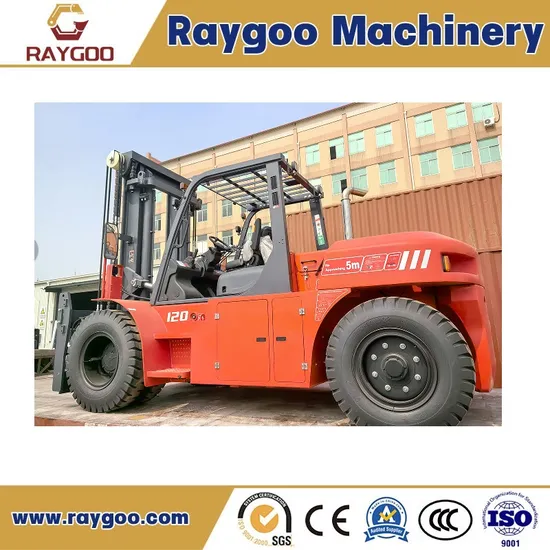

12ton Diesel Forklift Cpcd120-Yc1-06 with CE & EU for European Market

Product Description

Product Description Heli CPCD120-YC1-06 light 12 tons forklift can be widely used in enterprises
Industry, stations, ports, docks, cabins and other places, for overweight, oversized cargo
Handling and carrying out the handling and stacking of empty containers of some types. Detailed Photos

Product Parameters

Technical Parameter
Item	Unit	Description	CPCD120-YC1-06
Features	(t)	Rated Load	12 TON
	(mm)	Load center	600 mm
	(mm)	Wheelbase	3000 mm
Chassis		Tyre Specs.:Front	10.00-20-18PR
		Tyre Specs.:Rear	10.00-20-18PR
		Tyres Qty,front/rear(X-drive wheels)	4\2
	(mm)	Wheel tread:Front	1724 nmm
	(mm)	Wheel tread:Rear	1850 mm
Dimension	Degree(°)	Mast/carriage tilt angle(front/rear)	6\12(°)
	(mm)	Mast height(fork lowering)	3165 mm
	(mm)	Mast lifting height	3000 mm
	(mm)	Max.lifting height	3000 mm
	(mm)	Height to head guard(height to cab)	2592 mm
	(mm)	Overall height(with forks)	4450(5820) mm
	(mm)	Fork front vertical surface to the rear end of the vehicle	5050 mm
	(mm)	Overall width	2350 mm
	(mm)	Fork dimension	1370*175*85 mm
	(mm)	Fork carriage width	1724 mm
	(mm)	Mast min ground clearance(with load)	260 mm
	Wa(mm)	Min.Turning radius	4300 mm
	km/h	Travel speed(with load/without load)	28/30 km/h
Performance	mm/s	Max.lifting speed(with load/without load)	375/390 mm/s
	mm/s	Max.Lowering speed(with load/without load)	480/425 mm/s
	%	Gradeablity(with load/without load)	20/20 %
Engine	Optional one	Engine brand/model ( Standard engine brand is Yuchai, if customers have other optional, can suggest for double checking)	Yuchai engine
			YCA07160-T400 6/6.87, 118KW/2200rpm 670Nm/rpm
	Cylinder No.		6
	Emission Regulation		Stage IV
Others		Transmission	HELI brand

Packaging & Shipping
Our machines advantages 1. Features advantage:
(1) The Z-shaped link mechanism designed espeially for stone operating cnditions features high breakout force and loading capacity and the classic double-rocker structure ensures a broad operating view.
(2) The higher dumping height and dumping distance, extensive rotation angle scope of forks, and adjustable fork spacing are suitable to diversified operation needs, induding the forklifting and overturning of stones.
2. Characteristic:
(1) Power drive flexible suspension damping;
(2) Dual-pump combined technology, flow expanding steering, guide control;
(3) The frame of the high strength adapts to the heavy load condition;
(4) Working mechanism lightens the unloading impact greatly;
(5) Hydraulic wet brake ensures the safe and reliable operation and travelling;
(6) The adjustable instrument panel contributes to the best operation position;
(7) Intelligent electronic monitoring system could monitor the operation condition of the machine accurately.
(8) Convenient maintenance
With integrated oil filling, the service person could access to the maintenance point from the ground, featuring higher efficiency.
The side plates of the shield and rear shield are opened easily, and it is convenient to check the engine and parts, and daily maintenance.
3. Working on various Earth construction projects
Why choose RAYGOO GROUP 1. Quality assurance
2. Multi-currency payment ( RMB / USD / EUR) & Multi Payment team: T/T, L/C at sight....
3. Cheap shipment costs, Rich container package & Fast shipment:
Raygoo group cooperated with many shipping company many years, which can get the cheapest ocean freight with latest shipping date, even whole shipping tracking.
4. Long-term spare parts support:
Since 2015, in order to effectively solve our customers spare parts demand, we built a spare parts department, which get high speaking feedback from our clients.
5. Long-term technical service support:
We have a professional technical team which provide technical support for our domestic or oversea clients. If clients have some technical problems which can't deal with it by self, we can provide video support or door to door support.
6. Door and door service:
Till now, we can support door and door assembling service if they can't assemble it when container arrived in some countries,such as Philippines, Zimbabwe, Mozambique, Kenya, Cambodia, Indonesia.... If the quantity is large, even can provide engineer indoor support.
7. Rich brands:
As we worked on construction machines more than 15 years, which already build nice strategic relationship with world brand company for competitive price and quality.support
FAQ Q: What is your delivery time?
A: For standard machine, the delivery time is Within 25-35 days after receiving the down payment.It also depends on the models and the quantity of your order.
In peak season,the production may take longer.
Q: What is the payment term?
A: Normally we accept L/C, or T/T 30% down payment, balance to be paid against BL copy and loading pictures.
Q: What color can I choose?
A: There are Yellow, Red, Blue, Black, White, Orange,and Green. We can customize the color when you order more.
Q: What kind of service can I get from you? How can I get spare parts?
A: We have 1 year warranty for each brand new machine, within 1 year, if any parts broken because of quality issues, the new parts would be sent to you free of charge by DHL, within 7 working days. Besides of the warranty policy, our professional after-sales team responds quickly to any kind of using problems, replacement parts supply could be guaranteed for a life time.
