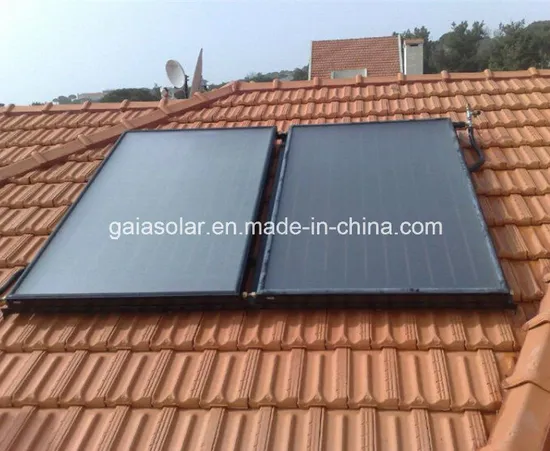

Home Solar System Flat Plate Solar Panel
Basic Info.
Model NO.
2m*1m
Type
Flat Panel
Application
Water Heater, Solar Thermal
Pipe Material
Copper
Lenght
2000mm
Width
1000mm
Thickness
130mm
Absorptivity
95%±2%
Emissivity
5%±2%
Max. Working Pressure
0.6MPa
Surface Treatment
Low-Iron Matted Tempered Glass
Insulation
Glass Fibre and High Density Polyurethane
Wind Resistence
30m/S
Hail Resistance
25mm
Transport Package
Export Standard Packing
Trademark
Gaia Solar / OEM
Origin
Dezhou, Shandong
HS Code
8419901000
Production Capacity
1000sets/Week
Product Description
Advantages:1. simple structure, easy installation
2. Efficient heat insulation
3. Reliable performance
4. Good quality and reasonable price
Technical Data:
| Out Shell | Shell Material | 6063-T5 Aluminum Alloy | |
| Thickness | 1.0mm | ||
| Technology | Plastic Spray | ||
| Seal Strip | Material | EPDM | |
| Glass Cover | Material | Low iron matted tempered glass | |
| Transmissivity | ≥92% | ||
| Thickness | 3.2mm | ||
| Insulation Material | Back Side | Material | Glass Fiber + Polyurethane |
| Thickness | 20+25mm | ||
| Round Sides | Material | polyurethane | |
| Thickness | 15mm | ||
| Material of Plate Core | Aluminum plate(0.4mm) | ||
| Welding Technology of Plate Core | Laser Welding | ||
| Material and Specification of Back Plate and Sides | Aluminum Alloy δ≥0.3mm | ||
| Solar Thermal Characteristic | Film | Black Ti Film | |
| Film Technology | Strong Magnetic Voltex High Voltage adsorption | ||
| Absorptance | α=0.95±0.02 | ||
| Emittance | ε=0.05±0.02 | ||
| Physical Characteristic | Dimension(mm) | 2000×1000×130mm | |
| Net weight(kg) | 38 | ||
| Gross weight(kg) | 41 | ||
| Test Pressure | 1.2MPa,10 minutes | ||
| Working Pressure | 0.6MPa | ||
| Inner Plate | Copper Pipe | TP2 Φ22 Copper Pipe | |
| Copper Pipe Specification(mm) | Φ22×0.5 | ||
| Reed Pipes | PERM | ||
| Reed Pipe Specification(mm) | Φ10×0.5 | ||
| Plate Core Dimmension(mm) | 1950×950×0.4mm | ||
| Number of Copper Pipe | 7/8/9 | ||
Specification:1) Low iron textured tempered glass(3.2mm thickness)offers the best capability of durability, strength.
2) Tinox blue titanium or black chrome coating have very high absoption rate to ensure the high efficiency.
3) Whole-plate ultrasonic welding technology makes the flate plate solar collector more beautiful, efficient and durable.
4) Special Anodized aluminum alloy frame to ensure handsome appearance and can accept high pressure without leakage.
