Rich Production Experience Jar Bottle Making Machine Stretch Blowing Machine

Product Description

Products Description

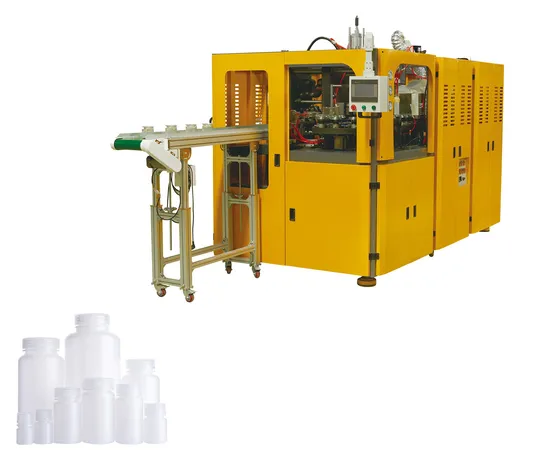

Automatic Wide Neck PET Jar Blowing Machine
The two cavities Automatic Wide Neck PET Jar Blowing Machine is the best choice for producing wide neck PET jars. It assures stable performanceby having PLC controlling system and automated conveyors for conveying preforms. Its primary production is cosmetic jars, candy jars, powder jars, honey jars, yogurt jars, oil jars, etc.
Features * Blowing Machine enables the production of various sizes of bottles with an improved design and vibration-free operation.
* The hydraulic mold system adds to the stability and elaborate design of the machine. It also provides flawless clamping and sturdy operation.
* The machine maintains a sound air control system that allows uniform airflow throughout the operation.
* For the most convenient and accurate shaping, a cooling device works by attaching to the bottleneck. It cools down the specific part after molding.
* The efficient servo motors allow convenient stretching of preforms. It will enable accurate and fast stretching strokes.
Product Paramenters

Model		Unit	MW-J2-100	MW-J4-100	MW-J2-140
Clamping System	Number of cabity	cavities	1	2	2
	Clamping unit	KG	36000	36000	36000
	Mold stroke	mm	200	120	120
	Stretching stroke	mm	360	360	360
	Bottom stroke	mm	50	50	50
	Cavity pitch	mm	190.5	114.3	152.4
	Number of holder	PCS	32	48	52
Container	Max.container volume	ml	5000	1800	2000
	Max.container height	mm	320	320	320
	Max.container diameter	mm	170	130	130
	Max.prefrom height	mm	160	120	120
	Max.neck diameter	mm	130	110	110
Theoretical		B/H	800	1400	1400
Electrical System	Heating oven qty	PCS	4×4	4×4	4×4
	Number of lamp	PCS	4×9	4×8	4×8
	Heating power	KW	48	48	48
	Installed power	KW	50	50	50
	Voltage	Voltage	380V/50HZ	380V/50HZ	380V/50HZ
Air System	Operating pressure	mpa	0.7-0.9	0.7-0.9	0.7-0.9
	Blowing pressure	mpa	3.0	3.0	3.0
	High pressure air consumption	L/min	2.4/30	2.4/30	2.4/30
	Power	KW	30	30	30
Chiller System	Temperature		10-15	10-15	10-15
	Pressure	mpa	0.4	0.4	0.4
	Power	HP	5	5	5
Machine	Machine dimension	M	3.3×1.8×2.2	3.3×1.8×2.0	3.9×1.8×2.0
	Machine weight	KG	2500	3000	3000

Packing and Shipping

Packaging:
Stable wooden packaging protects the machine from impact and damage. A wrapped plastic film protects the machine from moisture and corrosion. This is a fumigation-free package that supports smooth customs clearance. Large machines are fixed in containers without packaging.
Shipping: At LCL, we worked with a reliable logistics team to get the machine to the port quickly and safely. At FCL, we obtain containers, and our skilled workers carefully load the containers. As for forwarders, we have professional and long-term cooperation forwarders who can process your shipments smoothly. We also want to achieve seamless cooperation with forwarders at your convenience.


Customization Service
We will provide the best process plan based on your product and provide a complete set of mold designs to ensure that the bottle cap (injection mold) and bottle body (blow mold) match flawlessly. Use high-precision machining centers to process high-precision molds * Excellent cooling effect * Provide free proofing service *Exquisite production technology *Strict quality requirements
Company Profile
Maiwei has been committed to the research of blow molding technology for many years. It has continuously accumulated experience in blow molding and improved product equipment to achieve more stable work, lower energy consumption and more durability. The product range includes: dairy products bottles, wine bottles, oil bottles, laundry detergent bottles, engine oil bottles, sprayers, hollow toys and other hollow plastic products. We'll actually help you solve your packaging blow molding problems, not just sell equipment. The machine has a wide application range and can increase or decrease the air source system according to user requirements. It has strong flexibility, low energy consumption and high efficiency.
Our customers
Certifications

FAQ
1.Q:Are you a factory or trading company? Where is your factory located? A: We are a factory,it is located in Huangyan,Taizhou city, Zhejiang Province, China.
2.Q:How about quality control in your factory? A: " Quality is the key point, do what customers needs."In the future, Maiwei will move towards more professional and deeper technical goals.
3.Q.What is your payment and delivery time? A:"The payment is 30% by T/T as down payment,70% by T/T before shipment.And the delivery time of the machines is depended on the machine options. Normally, the delivery time of a standard machine could be within 3-4 months.
4.Q.Do you provide any spare parts with the machine? A: Yes, MAIWEI will provide one set of standard spare parts to customers.
5.Q. What about the after-service? A:We offer over-all after sale service to meet customer's commandincluding on-line consulting and off line technical support.
