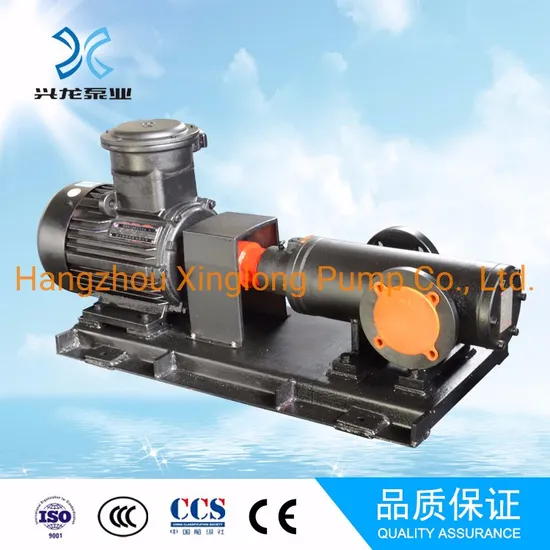

Factory Price Triple / Three Screw Pump for Lube Oil / Diesel / Bitumen / Fuel Oil

Product Description

Factory Price Triple / Three Screw Pump for Lube Oil / Diesel / Bitumen / Fuel Oil
1. About Us
Xinglong has been making screw pumps since 1998. After more than 20 years development, Xinglong has become a famous Chinese enterprise for producing screw pumps. Our products are largely exported to Russia, UK, Canada, Chile, Indonesia, Korea, Hungary, Japan, Philippines, Thailand, Vietnam, Malaysia and other countries. Xinglong is a qualified supplier of CNPC, vice chairman enterprise of screw pump professional committee of China, main drafting unit of screw pump standard of JB/T8644-2007 Single Screw Pump and unique drafting enterprise of HJ2524-2012 Technical Requirement for Environmental Protection Products Single Screw Pump. We have independent intellectual property rights of the core technology. Our main products, single screw pump, twin screw pump, triple screw pump, macerator, are very famous in China. We got a lot of patent certificates. Our quality and service have gained trust of many customers.
Website: http://xinglongpump.en.made-in-china.com
2. Quick Details

Place of Origin: Zhejiang, China	Brand Name: Xinglong
Model Number: XSM series	Theory: Rotary Pump
Structure: Screw Pump	Usage: Oil
Standard or Nonstandard: Standard	Fuel: Gasoline
Pressure: Low Pressure	Application: Maritime
Viscosity: 3.0~ 760 mm2/ s	Flow: 0.24-150m3
Max. Pressure: 2.5Mpa	Max. Temperature: 120C

3. Features:
1. The most widely used screw pumps;
2. Advanced structure, with convenient maintenance for pump components and accessories replacement;
3. Unique seal design, with reliable sealing effect;
4. The assembly of pressure relieve valve is applied to protect pumps
4. Application:
To transfer various medium with lubricating property or partial lubricating property, but without solid particles, including lubricant (lube oil) ( for example, lubrication oil, machine oil, hydraulic oil, gear oil, etc. ), water glycol, lubrication grease, light diesel oil, residual fuel (oil) ( such as heavy oil, coal tar, etc. ) and other sticky chemical medium.
Are widely used in the fields of machinery, petroleum & chemical industry, metallurgy, iron & steel, electric power, marine, Centralized lubrication unit, Lube circulation system, etc.
5. Mounting Type:
H: Horizontal mounting, common type connected by common baseplate
F: Bracket-type mounting, connected by bracket
6. Inner strusture
7. Certificates & Reference Product Photos
