High Quality Waste Tyre Recycling Plant Machine for Rubber Powder

Product Description

High Quality Waste Tyre Recycling Plant Machine for Rubber Powder
Product Description
Tyre Recycling Solutions
Kowloon Machinery offer both standard and customized tyre recycling solutions depending on your requirements for input tyre type, production capacity, and output size/purity. The standard solutions for tyre recycling have capacities ranging from 500 - 5000 kg input/production hour depending on your needs. These are typically the starting point when customizing solutions e.g. for larger capacities.The systems and machines are developed based on ambient mechanical technique for size reduction and separation. No melting or chemical treatment required.

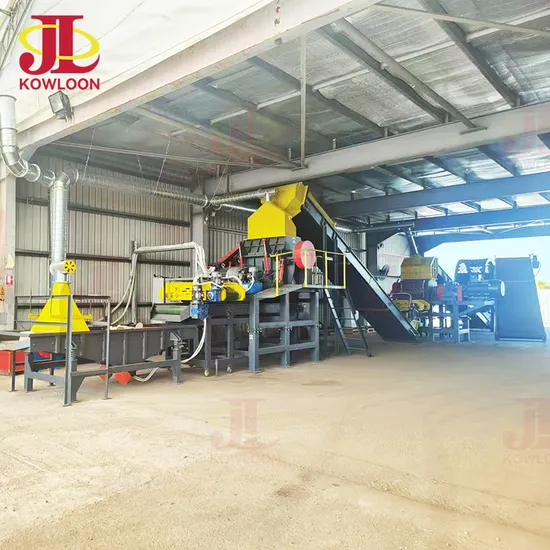

Tyre Recycle Plant Waste Car Tire Recycling Line
Tyre recycling is the process of downsizing whole tyres of any type for the purpose of reusing the material for other purposes. The materials most sought after in tyre recycling are clean rubber and steel wire.
Applicable Materials
Bicycle tires, Electric vehicle tires, Motorcycle tires, Passenger car tires, Bus tires, Off-road vehicle tires, Agricultural and
Forestry machinery tires, Light truck tires, Construction machinery tires, Industrial vehicle tires.
The Final Products
50-120mm rubber shreds
10-15mm rubber mulch
1-7mm rubber crumb
30-120mesh rubber powder
Old Tire Rubber Granule Production Line For Rubber Powder Recycle can crush waste tires or rubber products into rubber granules and powder to realize the recycling and reusing of waste rubbers. As a professional manufacturer, we can provide you the best solution based on your different raw materials.

Item	Raw material	Output Product	Output Capacity
TDF tire shreds plant	Car/truck/bus/mining tires	50-120mm rubber shreds	500-5000kg/hour
Steel free rubber mulch plant		10-15mm rubber mulch
Rubber crumb plant		1-7mm rubber crumb
Rubber powder plant		30-120mesh rubber powder

Model	JLTD1200	JLTD1600
Power	37kw	45kw
Route of hydraulic cylinder	1200mm	1600mm
Max tire application range	≤1200mm diameter	1200-1600mm diameter
Working pressure	15tons	18tons
Working capacity	30-60tires/hour	30-60tires/hour
Dimension (L*W*H)	4100*1300*1750mm	5000*1500*1900mm
Weight	2000kg	3500kg

Model	JLTS1200D	JLTS1500D	JLTS2000D	JLTS2600D
Motor	45kw+45kw	55kw+55kw	75kw+75kw	90kw+90kw /110kw+110kw
Motor brand	WN/Siemens/ABB/WEG
Gearbox	2units, planetary type, motor direct connected, gear driven
Shredder chamber size (inner)	1180*1050mm	1480*1050mm	1920x1250mm	2520*1450mm
Rotor speed	8-12rpm	8-12rpm	6-8rpm	6-8rpm
Shredder blade	Dia.530mm	Dia.530/560/600mm	Dia.560/600mm	Dia.720mm/900mm
Screen hole size	Dia.50mm-200mm
Dimension	3.2x2x1.9m	4x1.7x2.4m	5.5x3.5x3m	6.2x4.3x3.3m
Weight	16500kg	18000-22000kg	25000-28000kg	32000-34000kg

Model	JLRS800	JLRS1000	JLRS1200	JLRS1500
Main motor	90kw	110kw	132kw	160kw
Feed particle size	≤50mm	≤50mm	≤50mm	≤50mm
Mesh size	Φ10-Φ15mm	Φ10-Φ15mm	Φ10-Φ15mm	Φ10-Φ15mm
End product size	10-15mm	10-15mm	10-15mm	10-15mm
Working capacity	500-750kg/hour	750-1000kg/hour	1000-1250kg/hour	1250-1500kg/hour
Moving knife quantity	36	48	36	48
Dead knife quantity	12	16	12	16
Dimension(L*W*H)	1650*1700*2300mm	2000*1750*2300mm	2300*1770*2300mm	2750*1800*2300mm
Weight	4800kg	5200kg	5600kg	6000kg
Feed conveyor (LxW)	8000x650mm,4kw	8000x800mm,4kw	8000x1000mm,4kw	8000x1200mm,4kw

Model	JLSP800	JLSP1000	JLSP1200	JLSP1500
Main motor	55kw	75kw	90kw	110kw
Rotor diameter	600mm	600mm	700mm	700mm
blade	Made of H13, solid blade
Hydraulic station	2.2kw	2.2kw	3kw	3kw
Self-discharge belt conveyor	2.2kw	2.2kw	3kw	3kw
Screen hole size	Dia.3-7mm
Dimensions	3.35*1.65*2.95m	3.25*1.85*2.95m	2.7*2.05*3.45m	2.7*2.4*3.45m

Model	JLRM280
Capacity	60-85kg/h
Feeding material	1-10mm rubber granules
Size of output granules	30-120mesh
Total Power	28kw
Temperature of working	≤80ºC
Dimension(L*W*H)	1500*1000*1200mm
Weight	1000kg

Details Show Installed Projects
Packaging and Shipping
Company Profile
Company Introduction
Kowloon Machinery located in industrial hub of Zhengzhou city, China, design and manufacture industrial shredder, wood processing machinery, waste tire recycle equipment and scrap metal recycling machines. Kowloon products approved by CE and ISO certificates. Up to now, we have exported to more than 30 countries and share markets in worldwide, and now are still growing continuously.
We effort on improving and researching, in past years, various of new products were developed and becomes popular in domestic and abroad market, won good reputation and corporate image, we always effort on best quality and service, welcome to inquiry!
Certificate
Customer CooperationZhengzhou Kowloon Machinery has always won the trust and recognition of many users with its excellent quality and excellent after-sales service. The company has CE, ISO, SGS, CMIC and multiple certification certificates and invention patents. New and old friends are welcome to visit our factory and Trial machine test.
FAQ1. Are You Trading Company or Factory?
Machinery is a Factory with 31 years experience in machinery manufacturing; we provide you completive Factory Price and good After-sale Service!
2. What about the Machine Installation?
For a single machine or a simple line, we provide you Foundation Drawing ,Installation Instruction Books or successful installed machinery picture or video; for large machines and complex production line, we could send our engineers to guide the installation if necessary.
3. How About the Spare Parts?
We offer some free spare parts like belt, gasket etc small parts, for the BLADES, KNIVES, SHAFTS etc important wearing parts, we suggest customers buy some along with the machines to save the shipping cost, and we have enough spares parts in stock.
4. What Will We Do If We Have Problems in Machine Working After We Buy the Machine?
Kowloon has people special for after-sale service,if customers outside China have problems when machine working, just feel free to send us the picture or video to show us, we will give you solutions in 24hours.
5. Could We Visit Your Factory and Test the Machine?
We warmly welcome you to visit our factory anytime, and we are very glad to test our machine with your raw material.
