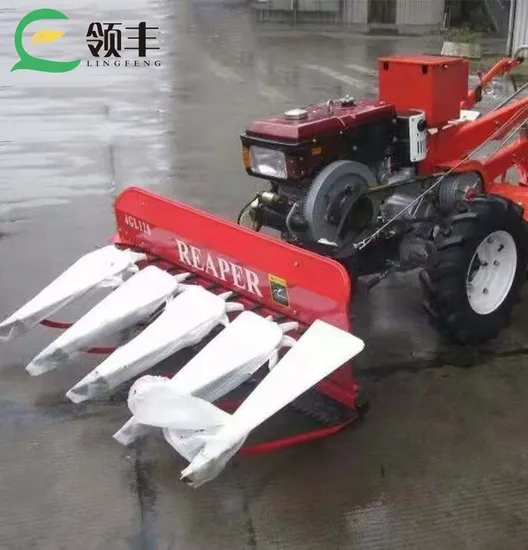

Multi-Functional Walking Tractor Self-Propelled Agricultural Hand Vertical Cutting Table Alfalfa Diesel Harvester Lawn Mower

Product Description

Product Parameters
15/18/20/22 HP diesel engine+151 chassis Rotary tiller and seat

22HP walking tractor parameter table
ltem	Unit	Specifications
Engine model		ZS1115
Overall dimensions(LxWxH)	mm	2680×960×1250
Type of tractor		Traction drive dual-use type
traction	N	2400
Min.ground clearance	mm	185
Track width	mm	580-800
rated power	KW/hp	14.7/22
Type of engine		Horizontal 4-stroke
Bore x stroke	mm	115*115
Turingspeed of crankshaft	rpm	2200
Fuel consumption rate	g/kw.h	≤244.8
start mode		Electric start/ hand start
Lubrication mode		Pressure splatter
Rotary tiller width	cm	100
Fuel tank capacity	L	12
Water tank capacity	L	17.5
Net weight	kg	340 (without rotary tiller) 440(with rotary tiller)
Tire model		600-12

15/18 hp walking tractor

18HP walking tractor parameter table
ltem	Unit	Specifications
Engine model		ZS1105
Overall dimensions(LxWxH)	mm	2170×890×1150
Type of tractor		Traction drive dual-use type
traction	N	1700
Min.ground clearance	mm	210
Track width	mm	640-680
rated power	KW/hp	12.1/18
Type of engine		Horizontal 4-stroke
Bore x stroke	mm	105*115
Turingspeed of crankshaft	rpm	2200
Fuel consumption rate	g/kw.h	≤246.2
start mode		Electric start/ hand start
Lubrication mode		Pressure splatter
Rotary tiller width	cm	100
Fuel tank capacity	L	12
Water tank capacity	L	3
Net weight	kg	310(without rotary tiller) 380(with rotary tiller)
Tire model		600-12

8/9/10/11/12/13 hp walking tractor+101 Rotary tiller+seat

Type	units	101
Structural weight	kg	360
Usage weight (including rotary tiller)	kg	504
Plowing speed	rpm	188
Dimensions (length * width * height)	mm	2680*960*1250
Number of plows	PCS	10 on each of the left and right sides
Rotary tillage amplitude	mm	1000
Hand held tractor type		Single axis, drive traction
Driving speed (forward)	ng	1.4,2.5,5.3,9.4,15.3
(Step back)	ng	1.1,3.8
Tire Size		600-12
Wheel torque	TID	800,740,640,580,800
Ground clearance	mm	250
Minimum turning radius	mI	0.9(without rotary tiller status)
Engine (model)		ZR195
(Calibrated power)	kw	8.82
(Calibrated speed r/min)		2200
(Cooling method)		Evaporative water-cooled type

Orchard type walking tractor(8-13HP+101Chaiss)
Detailed Photos

Walking tractors of 8-30 horsepower are available, as are 40 farm implements that can be combined with the walking tractor head. If you have the required model and the corresponding agricultural machinery, please inform customer service online, customer service will quote and make PI for you.
