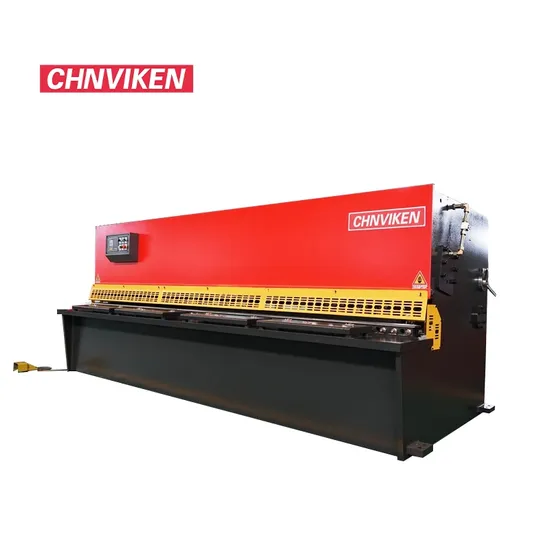

Swing Beam Shearing Machine for Cutting Sheet Metal
Basic Info.
Model NO.
QC12K
Certification
CE
Condition
New
Warranty
3 Years
Weight (Kg)
6500 Kg
Automatic Level
Fully Automatic
After-Sales Service Provided
Video Technical Support
Max. Cutting Thickness (mm)
8 mm
Dimension(L*W*H)
3840X1610X1620mm
Warranty of Core Components
2 Years
Blade Length (mm)
3200 mm
Max. Cutting Width (mm)
3200
Key Selling Points
High-Accuracy
Cutting Material
Metal Sheet / Iron Plate/Stainless Steel Plate
Voltage
380V/220V/415V/Optional
Throat Depth (mm)
100 mm
Travel Times
10 T/Min
Machinery Test Report
Provided
Transport Package
Plywood Box
Trademark
CHNVIKEN
Origin
Anhui, China
Production Capacity
5000pieces/Year
Product Description
Product Description| Standard Equipment | Optional Equipment |
| ESTUN E21S NC control | E200PS/ CybTouch 8/ DAC-360T CNC control |
| Shilin stepping motor frequency converter | Sheet support system for thin sheets |
| Back gauge with roll guide and ball screw | Energy saving main servo motor pump system |
| SIEMENS main motor | Moveable controller panel,Wireless foot pedal |
| Sunny pump,Rexroth hydraulic valve | Hydraulic oil cooling and heating system |
| EMB ferrule type pipe connector,NOK sealing rings | Automatic blade gap adjustment device |
| Roller bearings on the front support table | Front angle gauge and side gauge |
| Sheet sliding system and front support arms | Light safety system for finger protection |
| Collapsible guardrail finger protection | 4~40mm thickness,1.6~8M length optional |
1. Usage and maintenance:
Re:Shearing Machine is totally designed and manufacture by Viken, for usage and maintenance please contact US.
2. What's the shipping cost from China to your country?
Re:We can send machine to your port or door address by sea or airplane. Please kindly tell us your nearest port or address with
postcode.We have reliable shipping agent to insure the safe, convenient and timely delivery.
3. Payment terms, MOQ, warranty, FOB.
Re:Payment terms: 30% TT paid in advance, the balance of 70% before the shipment.
Minimum order quantity: 1 set.
Warranty: 3 years.
FOB: Nanjing / Shanghai/or others port in CHINA.
4. What's the package?
Re:Fumigation-free plywood case or without package.
5. What about commissioning service?
Re:We can offer commissioning service, the buyer need to afford air tickets.
6. What's policy for guarantee and broken parts?
Re:Warranty period of equipment lasts two year, during which the broken parts and spares caused by quality can be offered free.
