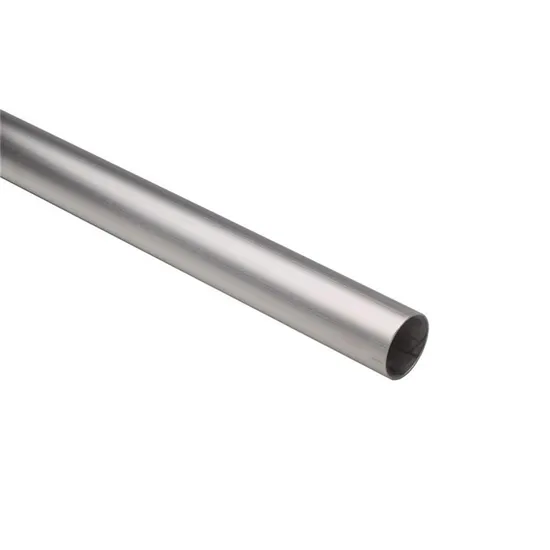

AISI 8K Mirror Polished 201 304 310S 316L 321 321H 430 Stainless Steel Pipe Corrosion Resistant Welded Seamless Stainless Steel Pipe Tube

Product Description

Product Description
304/304H (UNS S30400/ S30409) is a modification of the most widely utilized "18-8" chromium-nickel austenitic stainless steel. The carbon content is controlled in the range of 0.04-0.10% for increased strength at temperatures above 800°F (427°C). It is an economical and versatile corrosion resistant alloy suitable for a wide range of general purpose applications.
It is common practice for 304H to be dual certified as 304 and 304H. The high carbon chemistry of 304H enables 304 to meet the mechanical properties and grain size requirements of 304H.
304/304H has general corrosion resistance similar to 304/304L. It resists atmospheric corrosion, as well as, moderately oxidizing and reducing environments. However, because of its high carbon content, 304/304H is subject to carbide precipitation in the heat affected zone of welds.
304/304H is non-magnetic in the annealed condition but can become slightly magnetic as a result of cold working or welding. It can be easily welded and processed by standard shop fabrication practices.
304/304H Stainless Steel Applications:Kitchen benches, sinks, troughs, equipment, and appliancesChemical containers, including for transportFood processing equipment, particularly in beer brewing, milk processing, and winemakingHeat exchangersArchitectural trim and moldingWoven or welded screens for mining, quarrying & water filtrationAutomotive and aerospace structural useNuts, bolts, screws, and other fasteners in the marine environmentConstruction material in large buildingsDyeing industry

Grade	Chemical Composition (%)
	c	si	Mn	P	s	Ni	Cr	Mo
201	≤0.15	≤0.75	5.5-7.5	≤0.06	≤ 0.03	3.5-5.5	16.0-18.0	-
301	≤0.15	≤1.0	≤2.0	≤0.045	≤ 0.03	6.0-8.0	16.0-18.0	-
304	≤0.08	≤1.0	≤2.0	≤0.045	≤ 0.03	8.0-10.5	18.0-20.0	-
304L	≤0.03	≤1.0	≤2.0	≤0.035	≤ 0.03	9.0-13.0	18.0-20.0	-
316	≤0.08	≤1.0	≤2.0	≤0.045	≤ 0.03	10.0-14.0	16.0-18.0	2.0-3.0
316Ti	≤0.08	≤0.75	≤2.0	≤0.045	≤0.03	10.0-14.0	16.0-18.0	2.0-3.0
310S	≤0.08	≤1.5	≤2.0	≤0.045	≤0.03	19-22	24-26
316L	≤0.03	≤1.0	≤2.0	≤0.045	≤ 0.03	12.0-15.0	16 .0-1 8.0	2.0-3.0
321	≤0.08	≤1.0	≤2.0	≤0.035	≤ 0.03	9.013	17.0-1 9.0	-
405	≤0.08	≤1.0	≤1.0	≤0.04	≤0.03	0.6	11.5-14.5
409	≤0.08	≤1.0	≤1.0	≤0.04	≤0.03	0.6	11.5-14.5
409L	≤0.08	≤1.0	≤1.0	≤0.04	≤0.03	0.6	11.5-14.5
410	≤0.15	≤1.0	≤1.0	≤0.035	≤ 0.03	-	11.5-13.5	-
430	≤0.12	≤0.75	≤1.0	≤0.040	≤ 0.03	≤0.60	16.0-18.0	-
420	≤0.05	≤1.0	≤1.0	≤0.04	≤0.03	0.75	12-14	0.5
430	≤0.12	≤1.0	≤1.0	≤0.04	0.03	0.5	16-18	0.75
444	≤0.025	≤1.0	≤1.0	≤0.04	0.03	1	17.5-19.5	1.75-2.5
904L	≤0.02	≤1.0	≤2.0	≤0.045	0.035	23-28	19-23	4.0-5.0
2205	≤0.03	≤1.0	≤2.0	≤0.03	0.02	4.5-6.5	22.0-23.0	3.0-3.5
2507	≤0.03	≤0.8	≤1.0	≤0.035	0.02	6.0-8.0	24-26	3.0-5.0

Our Sizes & Grades
Stainless Steel Seamless Pipe/Stainless Steel Seamless Tube
* Outside Diameter: 4.0mm - 1219.0mm
* Wall Thickness: 0.5mm - 100.0mm
* Length: up to 24m
* Tolerance: According to the standard
* Technique: Hot rolled/Cold drawn/Forged
* Surface: Pickling, Polished, Grit blast, 180#, 320#, 400#, Bright Anneal,400#, 500#, 600#
* Standard: ASTM A312. ASME SA269, ASTM A269, ASME SA213, ASTM A215, ASTM A511, ASTM A789, ASTM A790, ASTM A 268, DIN 2462.1, DIN 17456, DIN 17458, JIS G3463, JIS G3459, GOST 9941, etc.
*Grade: 201, 304, 304L, 316, 316L, 316Ti, 321, 317L, 310S, 347H, 430, 430Ti, 409L, 439, 440C, 446, S32760, 2205, 904L, 630, 631, 253Ma, 254SMo, Incoloy 926, Inconel 625, Monel 400 etc.
* Processing Service: Bending, Welding, Punching, Cutting, etc.
* Pipe End: BE/PE with cap
PLEASE CONTACT THE SALES TEAM FOR THE DETAILED STOCK LIST Stainless Steel Welded Pipe/Stainless Steel Welded Tube
* Classification: Stainless steel industry pipe, stainless steel decorative tube
* Outside Diameter: 4.0mm - 1219.0mm
* Wall Thickness: 0.5mm - 20.0mm
* Length: Normally 6.0m, or as requirements
* Tolerance: According to the standard
* Technique: Hot rolled/Cold drawn
* Surface: Pickling, Polished, 180#, 320#, 400#, Bright Anneal,400#, 500#, 600#
* Standard: ASTM A312, ASTM A358, ASTM A249, ASTM A269, ASTM A554, ASTM A790, DIN 17457, JIS 3459, etc
*Grade: 201, 304, 304L, 316, 316L, 316Ti, 321, 317L, 310S, 347H, 430, 430Ti, 409L, 439, 440C, 446, S32760, 2205, 904L, 630, 631, 253Ma, 254SMo, Incoloy 926, Inconel 625, Monel 400 etc.
* Processing Service: Bending, Welding, Punching, Cutting, etc.
PLEASE CONTACT THE SALES TEAM FOR THE DETAILED STOCK LISTStainless Steel Capillary Pipe/Stainless Steel Capillary Tube
* Outside Diameter: 0.4mm - 16.0mm
* Wall Thickness: 0.1mm - 2.0mm
* Length: Up to 18000mm, or cut into small pieces
* Tolerance: According to the standard
* Technique: (High Precision) Cold drawn
* Surface: Inside and Outside Bright Annealed
* Standard: ASTM A312, ASTM A358, ASTM A249, ASTM A269, ASTM A554, ASTM A790, DIN 17457, JIS 3459, etc
*Grade: 304, 304L, 316, 316L, 316Ti, 321, 317L, 310S, 347H, S32760, 2205, 904L, 630, 631,etc
PLEASE CONTACT THE SALES TEAM FOR THE DETAILED STOCK LIST Stainless Steel Sanitary Pipe/Stainless Steel Sanitary Tube
* Classification: Stainless steel welded sanitary pipe, stainless steel seamless sanitary tube
* Outside Diameter: 6.0mm - 850.0mm
* Wall Thickness: 0.5mm - 6.0mm
* Length: Up to 18000mm, or cut into small pieces
* Tolerance: According to the standard
* Technique: Cold drawn
* Surface: Inside OR Outside Polished
* Standard: ASTM A312, ASME SA269, ASTM A269, ASME SA213, ASTM A213, ASTM A511, ASTM A789, ASTM A790, ASTM A376, ASME SA335, SB161, SB163, SB338, SB667, DIN 2462, DIN 17456, DIN 17458, EN 10216, JIS 3463, JIS G3459, GOST 9941, etc
*Grade: 304, 304L, 316, 316L, 316Ti, 321, 317L, 310S, 347H, S32760, 2205, 904L, 630, 631,etc
PLEASE CONTACT THE SALES TEAM FOR THE DETAILED STOCK LIST Stainless Steel Square Pipe/Stainless Steel Square Tube
* Classification: Stainless steel welded square pipe, stainless steel seamless square tube
* Side Length: 4.0*4.0mm - 300.0*300.0mm
* Wall Thickness: 0.25mm - 8.0mm
* Length: Normally 6.0m, or cut into small pieces
* Tolerance: According to the standard
* Technique: Cold drawn/Hot Rolled
* Surface: Hairline, Polished, 180#, 320#, 400#, Bright Anneal,400#, 500#, 600#
* Standard: ASTM A312, ASTM A358, ASTM A249, ASTM A269, ASTM A554, ASTM A790, DIN 17457, JIS G3459, etc
*Grade: 201, 304, 304L, 316, 316L, 321, 317L, etc
PLEASE CONTACT THE SALES TEAM FOR THE DETAILED STOCK LISTStainless Steel Rectangular Pipe/Stainless Steel Rectangular Tube
* Classification: Stainless steel welded rectangular pipe, stainless steel seamless rectangular tube
* Side Length: 4.0*6.0mm - 200.0*400.0mm
* Wall Thickness: 0.25mm - 8.0mm
* Length: Normally 6.0m, or cut into small pieces
* Tolerance: According to the standard
* Technique: Cold drawn/Hot Rolled
* Surface: Hairline, Polished, 180#, 320#, 400#, Bright Anneal,400#, 500#, 600#
* Standard: ASTM A312, ASTM A358, ASTM A249, ASTM A269, ASTM A554, ASTM A790, DIN 17457, JIS G3459, etc
*Grade: 201, 304, 304L, 316, 316L, 321, 317L, etc
PLEASE CONTACT THE SALES TEAM FOR THE DETAILED STOCK LISTStainless Steel Coil Pipe/Stainless Steel Coil Tube
* Classification: O Type, I Type, W Type, U Type
* Outside Diameter: 6.0 mm - 32.0mm
* Wall Thickness: 0.1mm - 3.0mm
* Length: 150m, 1500m, 1800m, or as requirements
* Tolerance: According to the standard
* Technique: Cold drawn/Hot Rolled
* Surface: Pickling, Polished, 180#, 320#, 400#, Bright Anneal,400#, 500#, 600#
* Standard: ASTM A269, A249, JIS G 43-5, EN 10216
*Grade: 201, 304, 304L, 316, 316L, 904L, S32205, S31803, etc
PLEASE CONTACT THE SALES TEAM FOR THE DETAILED STOCK LIST
