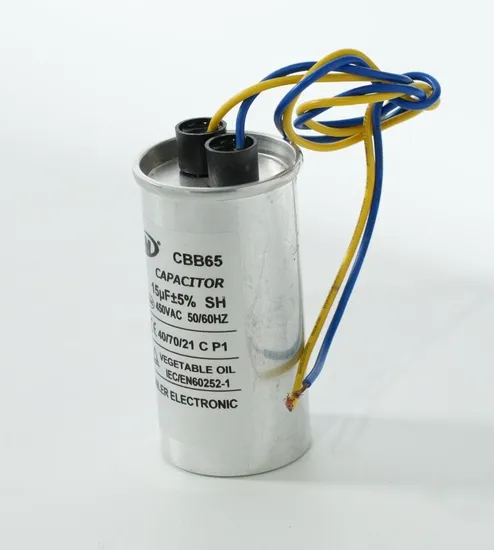

Cbb65 Sh 450v 50uf 55uf 60uf Ac Motor Start Air Conditioner Capacitor
Basic Info.
Model NO.
CBB65
Packaging Type
Surface Mount
Capacitance
1~80UF
Structure
Fixed Capacitor
Manufacturing Material
Polypropylene
Usage
Starting
Tuning
Polystyrene Capacitor
Filter
Film
Electronic Parts
Capacitor
Air Conditioner Parts
Capacitor
Motor Parts
Capacitor
AC Parts
Capacitor
Transport Package
Carton
Specification
CBB65
Trademark
SMILER
Origin
Guangdong, China (Mainland)
Production Capacity
50, 000 PCS Per Day
Packaging & Delivery
Package Size
6.00cm * 6.00cm * 10.00cm
Package Gross Weight
0.100kg
Product Description
| Safety approvals: | CQC/UL/VDE/TUV/CL |
| Approval standard | GB/T3667,UL810,EN60252 |
| Climatic category | 25/70/21,25/85/21,40/70/21,40/85/21 |
| Rated voltage | 150VAC~600VAC(50-60Hz) |
| Capacitance range | 1uF~80uF |
| Capacitance tolerance | +_5%(J),+_10%(K),+10%(U),-5%(U) |
| Testing voltage | |
| Between terminals | 2*Un(VAC)/5s |
| Between terminals and case | 2*Un+1000(VAC)/5s(>=2000VAC) |
| Insulation Resistance(20ºC) | |
| Between terminals | >=2000MΩ,UF(500VDC,5s) |
| Tangent of loss angle(20ºC) | <=0.002(100Hz) |
| Class of safety protection | S0/S3 |
| Fault Currency | 10,000AFC(UL810) |
| Capacitance(uf) | 250/300VAC | 400-450VAC | ||||
| Cylindrical | Ocal | Cylindrical | Ocal | |||
| D | H | L*W*H | H | D | L*W*H | |
| 10uf | 40 | 55 | 51.5*31.5*65 | 30 | 60 | 51.5*31.5*65 |
| 15uf | 40 | 55 | 51.5*31.5*65 | 35 | 60 | / |
| 20uf | 40 | 65 | 51.5*31.5*65 | 40 | 60 | 51.5*31.5*75 |
| 25uf | 40 | 65 | 51.5*31.5*65 | 40 | 60 | 51.5*31.5*85 |
| 30uf | / | / | / | 40 | 70 | 71.5*45*75 |
| 35uf | 40 | 75 | 71.5*45*75 | 45 | 70 | / |
| 40uf | / | / | / | 45 | 70 | 71.5*45*85 |
| 45uf | 45 | 75 | 71.5*45*75 | 45 | 80 | / |
| 50uf | 45 | 85 | 71.5*45*85 | 45 | 90 | 71.5*45*100 |
| 60uf | 45 | 95 | 71.5*45*100 | 50 | 90 | / |
