High Rigidity CNC Machining Center Vmc, Bottle Mould Processing

Product Description

Heavy CNC Milling Machine, CNC Machine Center, CNC Milling
Product Parameters

Model	VMC855
Stroke
X-axis travel (mm)	800
Y-axis travel (mm)	550
Z axis travel (mm)	550
Spindle nose to the table (mm)	135-685
Spindle Center to Column Guideway (mm)	590
Guide width X/Y/Z (mm)	35
Screw diameter (mm)	40
Screw Pitch (mm)	16
Workbench
Workbench area (mm)	1000x550
Maximum load (kg)	500
T-slot (size x spacing) (mm)	18×90
Feed
Three-axis fast-moving speed (m/min)	48/48/36
Cutting feed rate (mm/min)	1-10000
Spindle
Spindle speed (r.p.m)	8000-10000
Spindle type	BT40/BBT40
Spindle motor power (KW)	7.5
Other
Controller	Mitsubishi
Three-axis motor power (KW)	2.0/2.0/3.0
positioning accuracy (mm)	±0.005/300
Repeatability positioning accuracy (mm)	±0.003/300
Tool magazine type (pcs)	24 ATC
Tool change time (s)	1.2
Max tool weight (kg)	8
Machine weight (kg)	5270
Machine size (mm)	2700x2300x2550

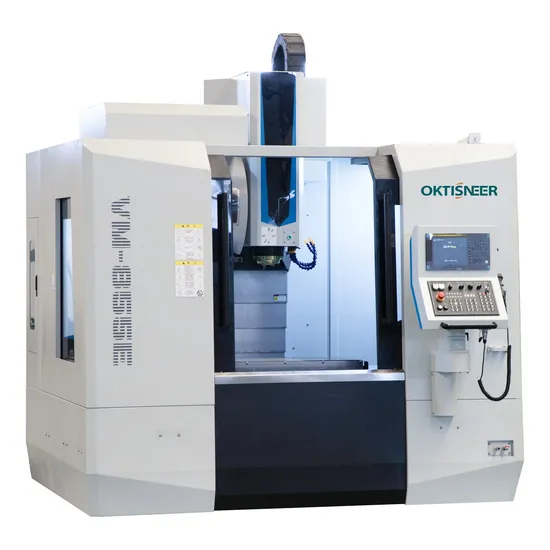

Detailed Photos

Company Profile

For many years, GKD(Mingju) has been committed to integrating resources, innovative technologies, and striving to serve customers worldwide with superior quality.
GKD is a group of companies specializing in R&D and manufacturing of CNC machining centers. It is located in near Hongkong in China with the title of "World Factory". Together with its strategic European headquarter in Italy(Taiwan) GKD has a global sales- and service network. The Group has 5 production bases in Dongguan, Chongqing, Anhui, Hunan and Jiangsu. The main products are vertical machining center, high-speed gantry machining center, horizontal machining center, horizontal boring and milling machine, CNC lathe, turning and milling center, five-axis machining center and other high-end CNC machine tools and production lines, and has become a complete range of CNC metal cutting machine tools in China. A professional manufacturer with complete industrial chain. Products are widely used in aerospace, mold, automotive, energy, marine, engineering machinery, 3C electronic products and other manufacturing areas.

GKD Group is committed to providing customers with high-quality products and comprehensive solutions, and deeply implements the requirements of high-speed, high-precision and high-efficiency of intelligent equipment, providing high-quality solutions for end customers and meeting customers' requirements for cost-effectiveness. . With strong manufacturing and after-sales service, GKD has provided a full range of products and services to dozens of countries and regions around the world.

GKD Group sincerely serves you!
Our Advantages
1.More Professional service in cnc machines exporting field2. Italy and Taiwanese technical, Better manufacture ability3.Various payment term to choose:T/T,Western Union,L/C,Paypal4.High quality/Safe material/Competitive price5.Small order available6.Quickly response7.More safe and fast transport8.OEM design for all customers

Certifications
Packaging & Shipping
After Sales Service
1) The quality warranty period is 12 months which counted from the day that the shipping commodity arrived at the port of destination, excluding the physical damage, We will provide you with the fittings for free during the guarantee period. But please kindly note that all users are kindly required to return us the damaged fittings by courier with your charge before we send back the alternative fitting parts. After warranty period, the fittings which you need repaired or changed should be in charge by you, and it will be reasonable charged. 2) Since it is difficult for our engineer to maintain the machine by face to face, we will create a plenty of online-supports. That is to say, we will give you technical supports by email, MSN/Skype, camera, video, telephone and fax when user meets some problems on installing, operating, adjusting, maintaining, and so on.3) When you meet some problems with installing, using or adjusting, but our online-support can not solve it, we can offer Door to Door service. If you need our engineer(s) to assemble or maintain or adjust the machine in your area, you would like to be required to assist us to go through the visa formality, traveling expenses prepaid and accommodation arrangement during the business trip and the service period before they dispatched. And please kindly arrange the translating person for the service engineer during their service period. Otherwise, you also can arrange your engineer to come to visit our factory to get a long-term free technical training.
FAQ
1. What is your minimum order quantity and warranty?MOQ is one set, and warranty is one year.2.What brand of the bearing do you use?NSK from Japan3.When is the delivery time?We will delivery it within 15-30 days after received your payments.4. How to handle the warranty period?During the warranty period, because of product quality problems, the company is responsible for free maintenance, if need to change parts, we be responsible for free replacement. If the machine problem is not belonging to our machine quality problems, when the buyer needs us send engineers to give repairing service, we charge the appropriate cost.5.Can your company send the technical personnel to our company and direct our workers for free?When the machine arrive the buyer's installation site, we timely send mechanical and electrical engineers to install according to the buyer's schedule, the buyer undertakes board and lodging of personnel abroad in the process of installation, and also USD150.00 per day per person. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.
