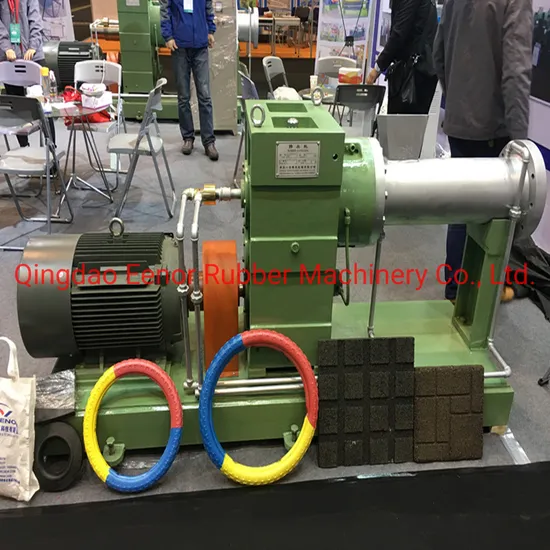

Hot Feed Rubber Pipe Extruder

Product Description

hot feed rubber pipe extruder

Items/Model	XJL-150A	XJL-200	XJL-250
Screw diameter (mm)	150	200	250
Max. screw speed (r/min)	41.6	47.2	40
Drive motor model	Y280M-8	Y315-6	Y315L1-6
Capacity (kw)	45	90	110
Cutting device speed (r/min)	16	16.8	11
Steam pressure (MPa)	0.6-0.8	0.6-0.8	0.6-0.8
Cooling water pressure (MPa)	0.2-0.3	0.2	02.
Max. production capacity (kg/h)	400	800	1600
Size (mm)	2873*1220*1377	4248*1995*1493	4440*1180*1650
Quantity (kg)	6500	8600	9000

1. The barrel is composed of several zones. In the feed zone of barrel is equipped with the spiral slots. In the plasticity and extrusion zone different of pins are fitted which enhance mixing and plastic capacity for extrusion material.
2. The screws and barrels are made of high quality alloy steel with nitrogen hardening which makes it more wear-resistant and more corrosion protection.

3. According to requirement of process the temperature in each zone may be automatically probing and control for each zone with good sensitivity.

4. The extruder is driven by a change frequency motor or D.C motor, which achieve continuous and smooth speed regulation.

5. Owing to the screw with higher efficiency and pin-barrel are fitted. The extruders include better mixing and plasticity result, higher extrusion, capacity, and lower temperature of the outgoing rubber.
Our service:
1. Reply your inquiry in 24 working hours.
2. Customized design is available. UEM&UBM are welcomed.
3. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
4. Professional factory: We are manufacturer, specializing in producing all kinds of machinery for more than 11 years, competitive with good quantity.
5. As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature.

Trading condition:
1. Payment Terms: T/T (30% in advance and 70% before delivery) or L/C
2. Warranty period: 1 year
3. If the machine you buy is damaged by non-man-made factors, we will supply the damaged parts for free.
