Basic Info.
Automatic Grade
Automatic
Transport Package
Stretch Film with Plywood Packing
Specification
1400*1000*1800mm
Product Description

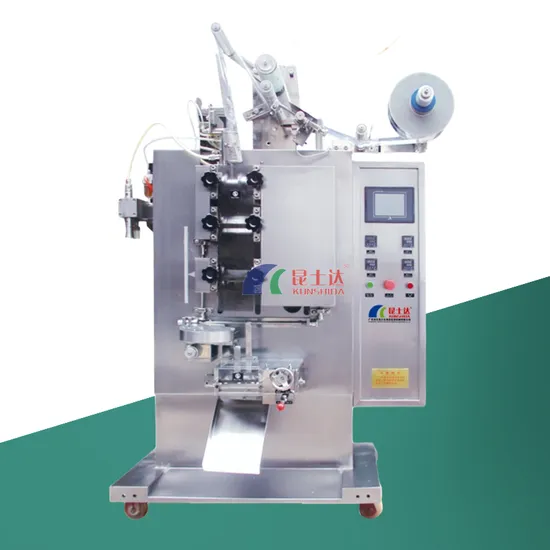

K-188LR CONTINUOUS PACKING MACHINE(FOR STICKY PRODUCT,PASTE AND CREAM)
This machine is controlled by PLC,combines servo system and inverter system to complete film sending,roller drive system and materials feeding sstem.
APPLICATION:
It is mainly using for packing sticky liquid,paste and cream.Like shampoo,shower gel,cooking oil and hand cream.
Sealing model:
overlapping curve,stripes,matrix grain
Cutting:
flat cutting,corrugates cutting,dot cutting
ADVANTAGES:
Pouch Length And Curso Location Adjustable,Accurated And Convenient.
Pouch size | W:30-100mm;L:40-150mm |
Sealing type | Three Sides Sealing,Four Sides Sealing |
Filling capacity | 1-40g |
Packing speed | 30-120Baga/min(depends on filiing materials and filling weight) |
Applicable film | PET/AL/PE./PET/PE |
Power | 4.5KW/380V |
Net Weight | 550kg |
Outside dimensions | 1400*1000*1800mm |
