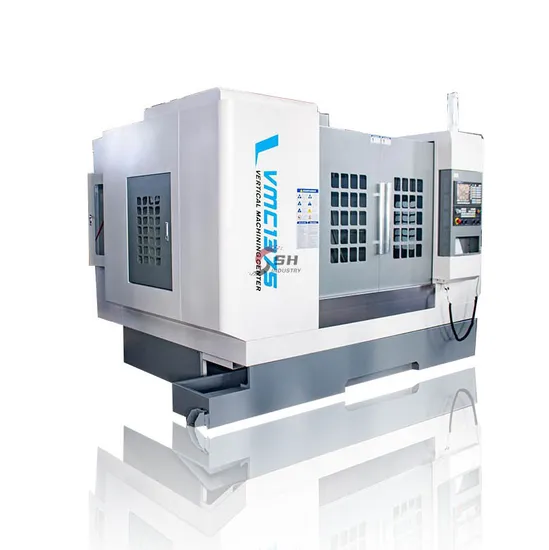

Best Price CNC Center Vmc1375 High Speed for Metal Processing Lathe
Product Parameters
Vertical machining center use:
This VMC is suitable for the mechanical processing and mold making. And it can adapt to the processing requirement from rough machining to finish machining. It can also finish many working procedures like milling, drilling, tapping, boring etc.
It is widely used to produce the auto spare parts, medical treatment instrument and any kind of injection mould, blowing mould, die-casting mould, car LED mould, toy mould and precise mould and o on.
1.The machine body adopts alloy cast iron with secondary tempering to ensure the stability and reliability of the body and effectively prevent the deformation of the body
2. Linear Guide Rail X/Y/Z axis linear guide rail all uses the original Taiwan HIWIN heavy-duty roller straight-line guide rail,may satisfy the customer the speed, the precision high request.
3 .Taiwan-made spindle Unit,8000-12000rpm available
4. Taiwan OKADA 24 ATC
5.Reliable Control System:Fanuc,Siemens,Mitsubishi ,GSKVmc850 vertical machining center is suitable for producing metal product and parts in all shapes.

Main technical specifications	Type	Unit	VMC1375
	Processing
	X axis travel	mm	1300
	Y axis travel	mm	750
	Z axis travel	mm	600
	Spindle nose to table surface	mm	120-720(BT40)
	Spindle center to Column surface	mm	797
	Worktable Size
	Worktable Size(X-axis direction)	mm	1400
	Worktable Size(Y-axis direction)	mm	700
	T slot qty-width*distance	mm	18x7x100
	Spindle specification
	Spindle speed(Belt type)	rpm	8000
	Main motor power	kW	11
	Spindle taper		BT40
	Feeding system
	X/Y/Z axis rapid feed	m/min	36/36/36
	Cutting rapid feed	mm/min	1-10000
	Three-axis servo motor power	kW	3 X 3 X 3
	Machine size		3315x2430x2400
	Machine weigth	kg	6650

Features: High quality resin sand
Taiwan spindle
Automatic lubrication system
Chip conveyor at optional Standard configuration System:KND-1000M
16 Armless Tool Magazine
3 axis linear rail Optional configuration System: SYNTEC,SIEMENS,FANUC
24 Arm Tool Magazine
The 4th axis
Spindle oil cooling
Chip conveyor
Oil-water separator
12000rpm spindle unit Realistic photos
