180mm Diamond Stone Core Drill Tools (SCY-1800E)

Product Description

Product Category: Diamond Drill Series>Velocity adjustable diamond drill series

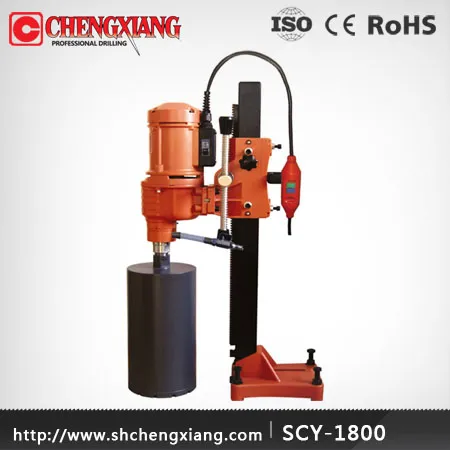

Product Name: SCY-1800E
Drilling range: θ 15-180mm
Rated voltage: 110/220V
Rated frequency: 50-60Hz
Rated input power: 3800W
No-load speed: 0-750r/min
Diamond drill, also called concrete drill is a new type of tool which can drill on RC, brick and stone, rock, China and fireproof materials. It is hold such characteristics as working without dust, high efficiency, smooth wall of hole and accurate size. It is available in many fields of construction, quality-checking, airfield runway, tunnel of road, railroad and railroad bridge.
The velocity-adjustable diamond core drilling machine have function of soft-starting, constant power, overloading protection and steoless speed-regulating, etc.

Product Model	SCY-1800	SCY-2050	SCY-2350	SCY-2550
Max Drill Range	180MM	205MM	235MM	255MM
Rated Voltage	110/220V	110/220V	110/220V	110/220V
Rated Frequency	50-60HZ	50-60HZ	50-60HZ	50-60HZ
Rared Input Power	3800W	4000W	4180W	4350W
No-Load Speed	750RPM	700RPM	600RPM	580RPM
Spindle	1 1/4''-7 UNC	1 1/4''-7 UNC	1 1/4''-7 UNC	1 1/4''7UNC
Max Stroke	500mm	500mm	500mm	500mm
WEIGHT:	22KGS	22KGS	23KGS	25KGS
